Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ) >> DTC P0112: IAT Circuit Low Input >> Diagnostic Procedure

Diagnostic Procedure

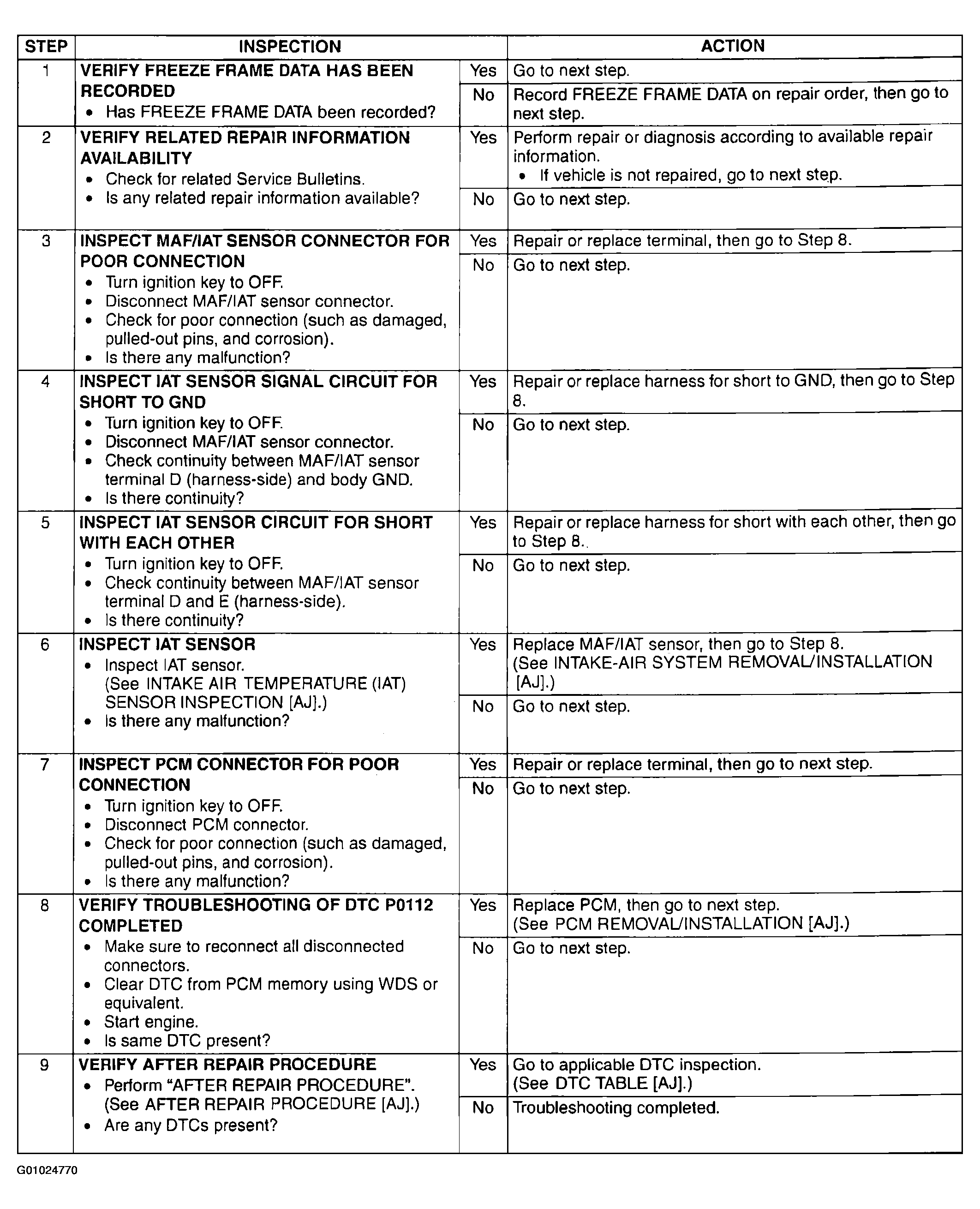

Fig 1: DTC P0112: Diagnostic Procedure Chart
G01024770Courtesy of MAZDA MOTORS CORP.
