Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System Preliminary Inspection
Keyless Entry System Preliminary Inspection
Perform the following preliminary inspection before troubleshooting.

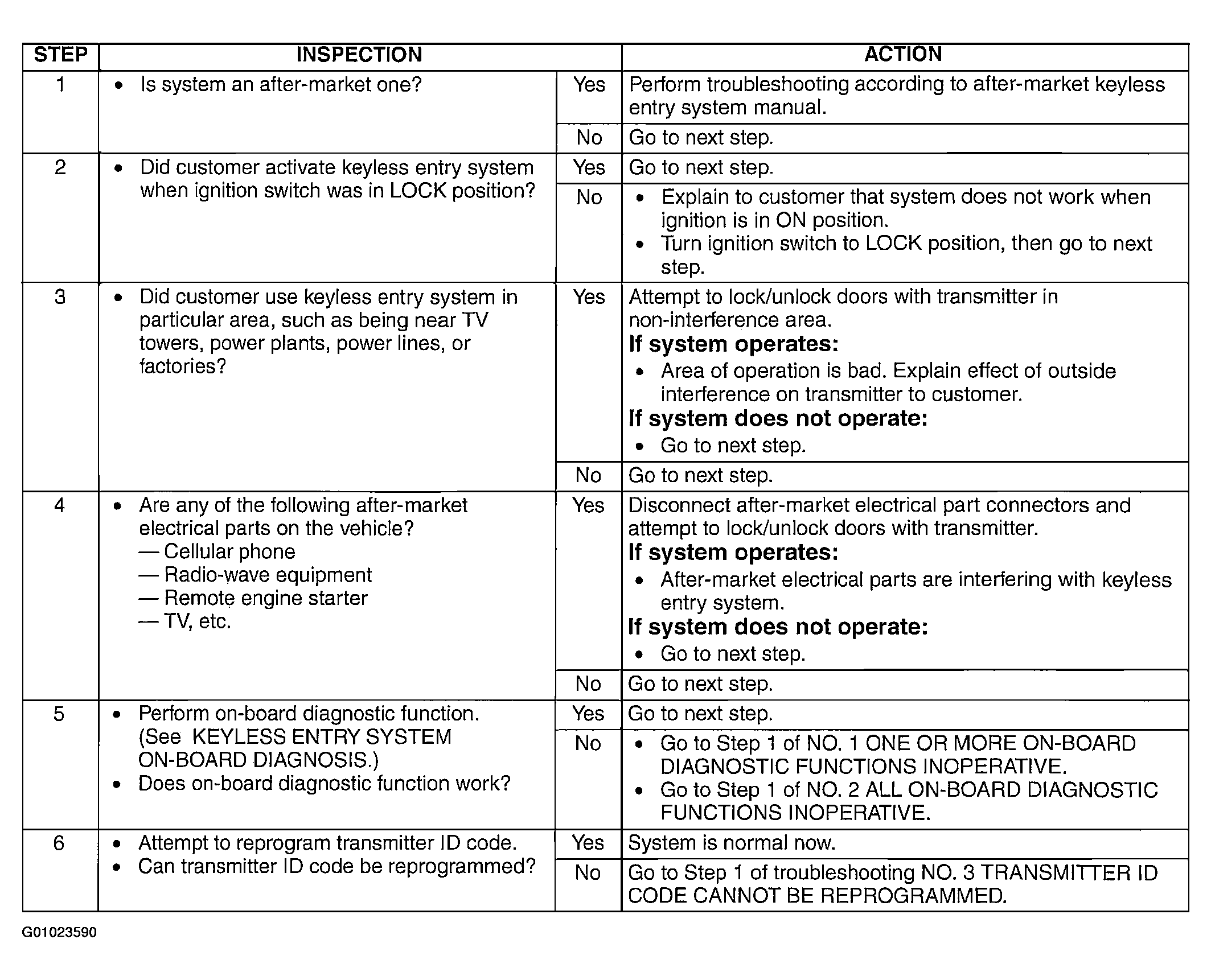

Fig 1: Keyless Entry System Preliminary Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
