Keyless Entry System On-Board Diagnosis

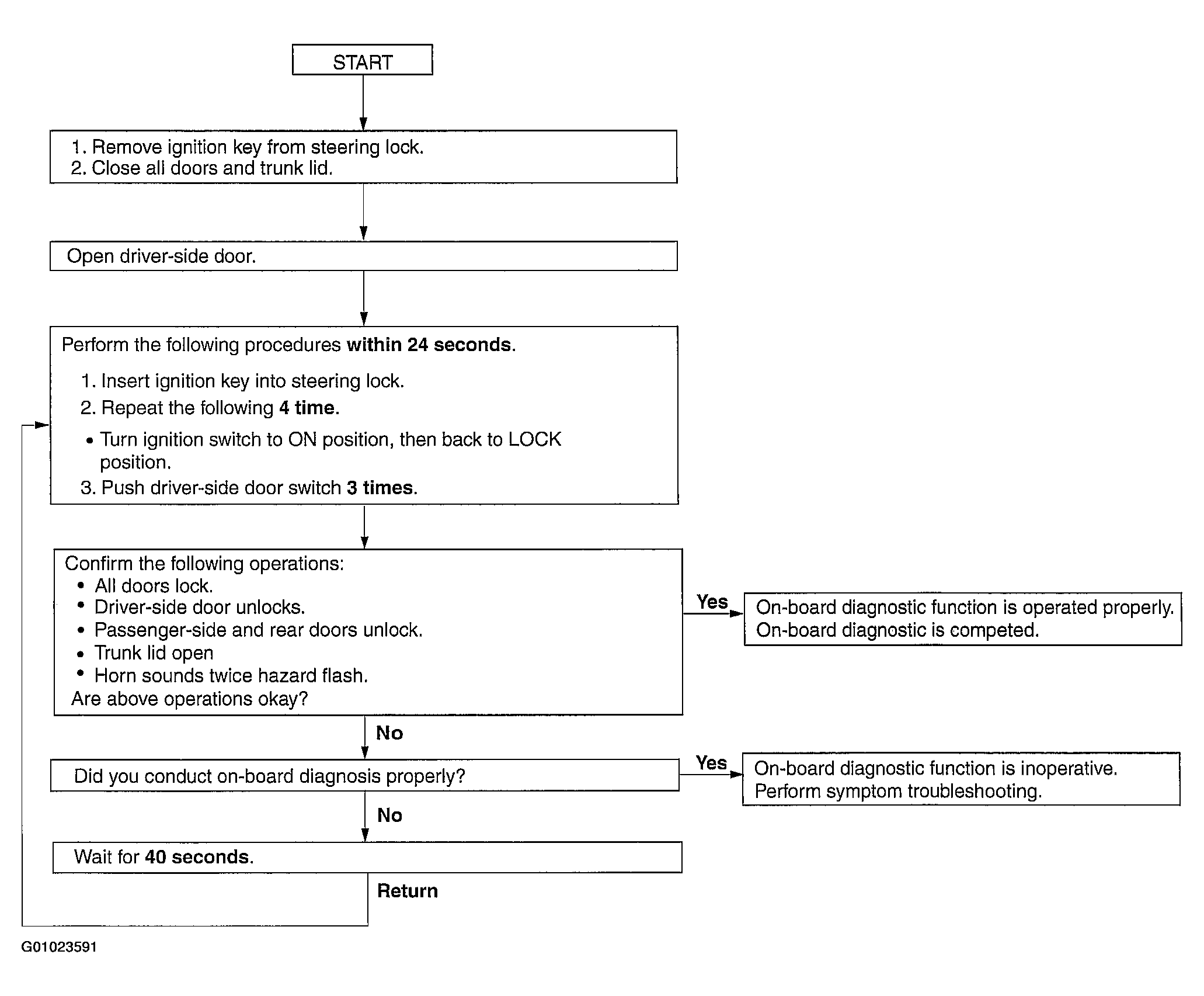

Fig 1: Keyless Entry System On-Board Diagnosis Block Diagram

G01023591

Courtesy of MAZDA MOTORS CORP.
