Diagnostic procedure

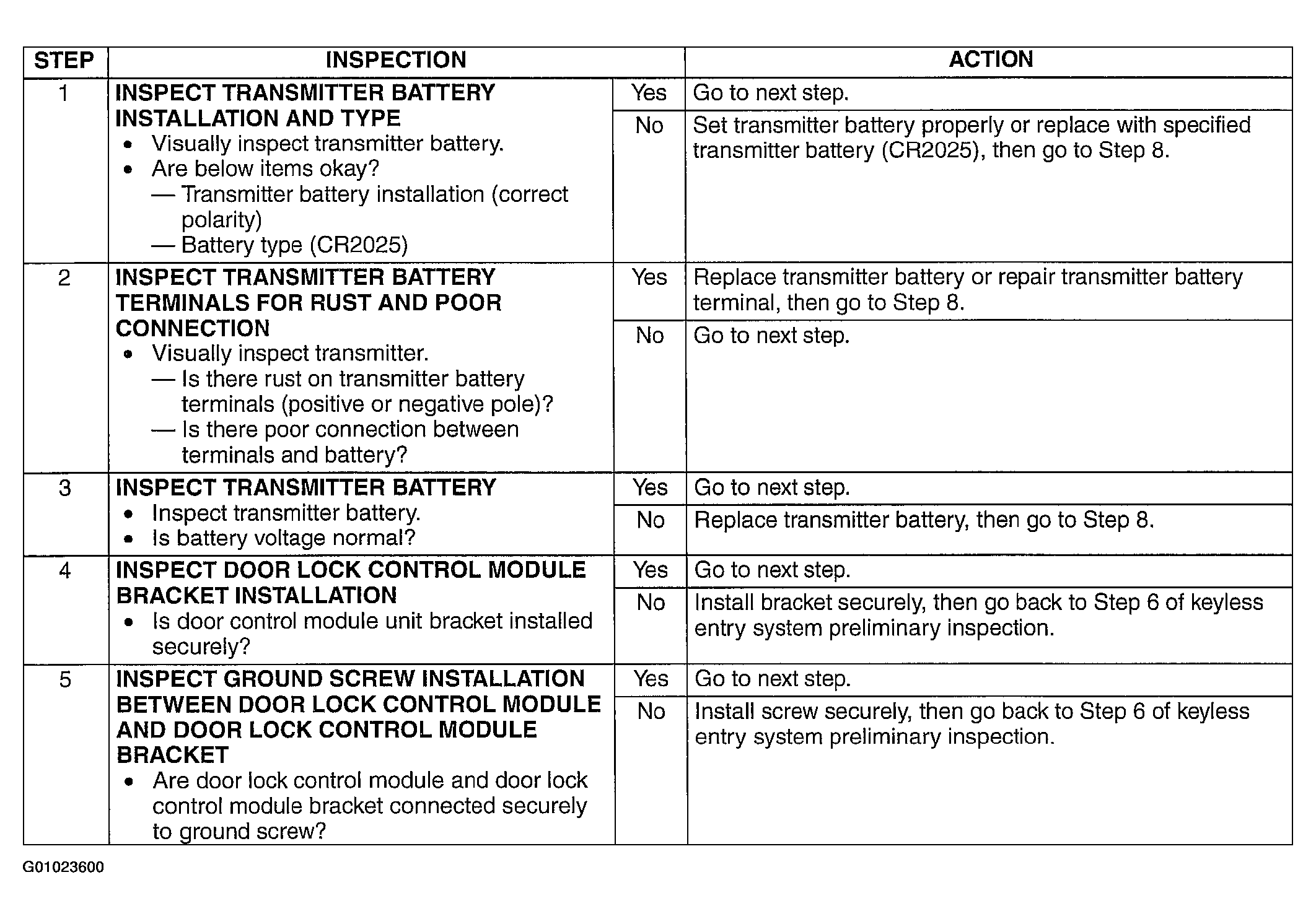

Fig 1: Diagnostic Procedure - Transmitter ID Code Cannot Be Reprogrammed (Steps 1-5)
G01023600Courtesy of MAZDA MOTORS CORP.

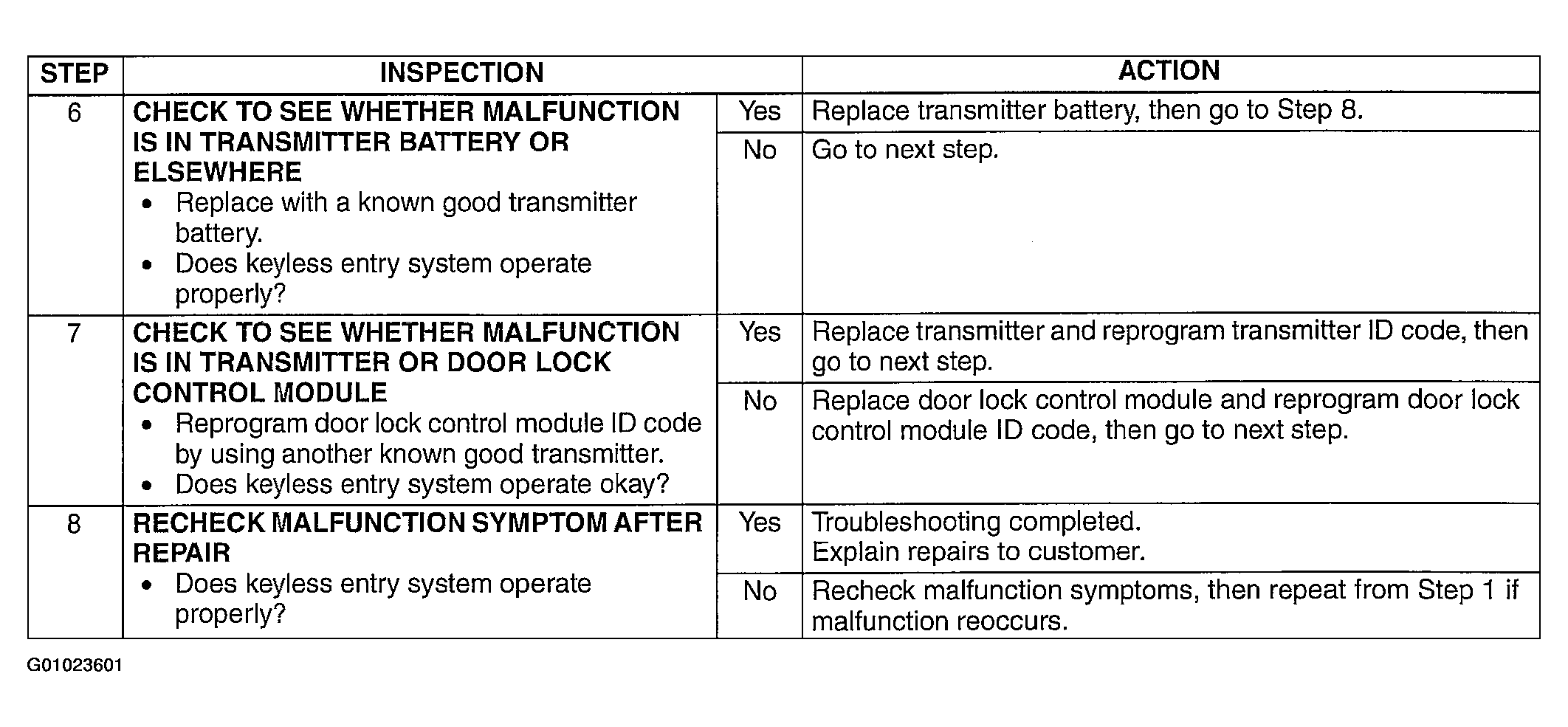

Fig 2: Diagnostic Procedure - Transmitter ID Code Cannot Be Reprogrammed (Steps 6-8)
G01023601Courtesy of MAZDA MOTORS CORP.
