Power Outside Mirror Inspection

Disconnect the power outside mirror connector.
Apply battery positive voltage to the power outside mirror terminals, and inspect the operation of the power outside mirror.
- If not as specified, replace the power outside mirror.

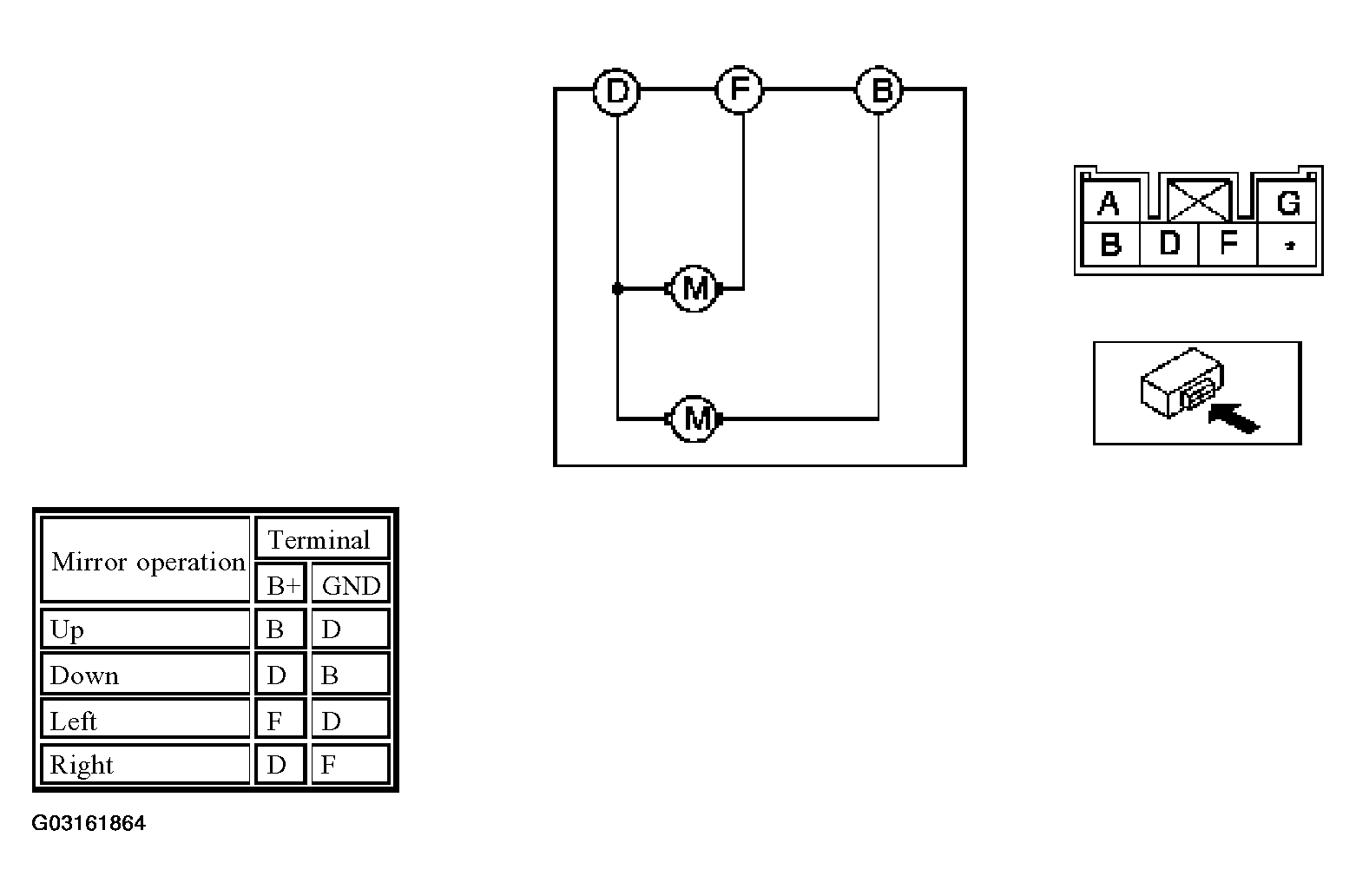

Fig 1: Checking Power Outside Mirror Operation
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the power outside mirror heater terminals.
- If not as specified, replace the power outside mirror.

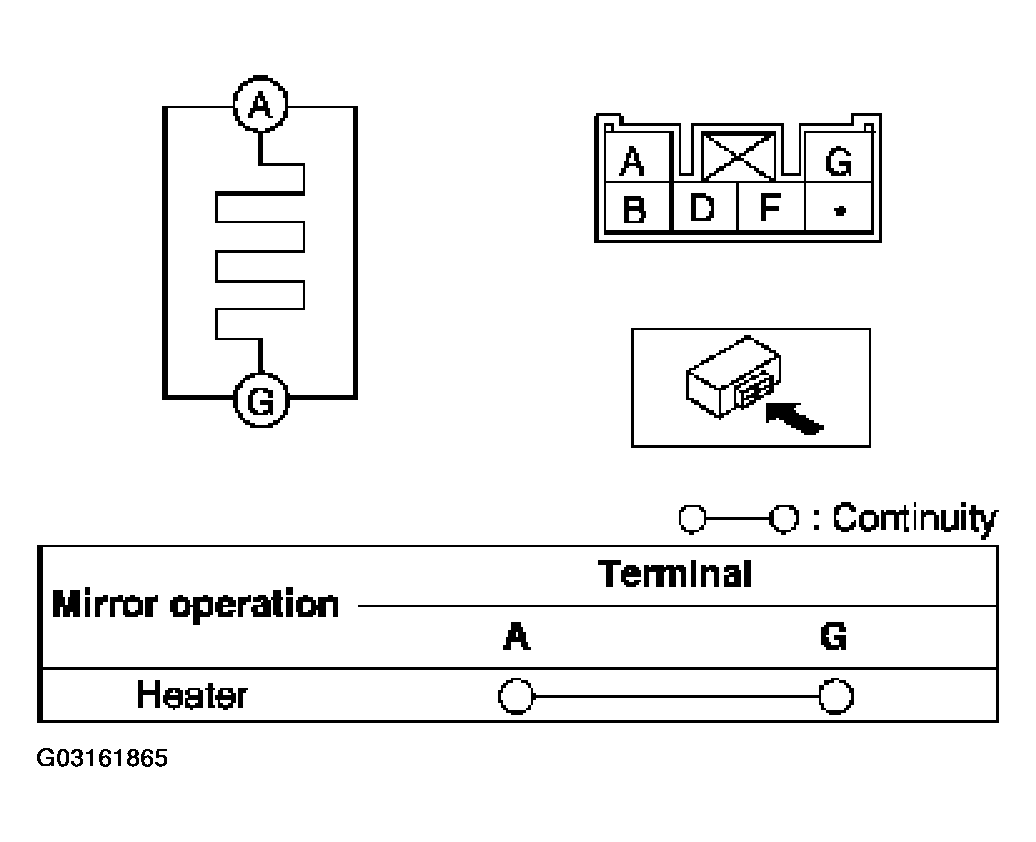

Fig 2: Inspecting Continuity Between Power Outside Mirror Heater Terminals

Courtesy of MAZDA MOTORS CORP.
