Symptom Troubleshooting [Engine Control System (L3)
>>
No.30 Spark Plug Condition
>>
Diagnostic procedure
Diagnostic procedure

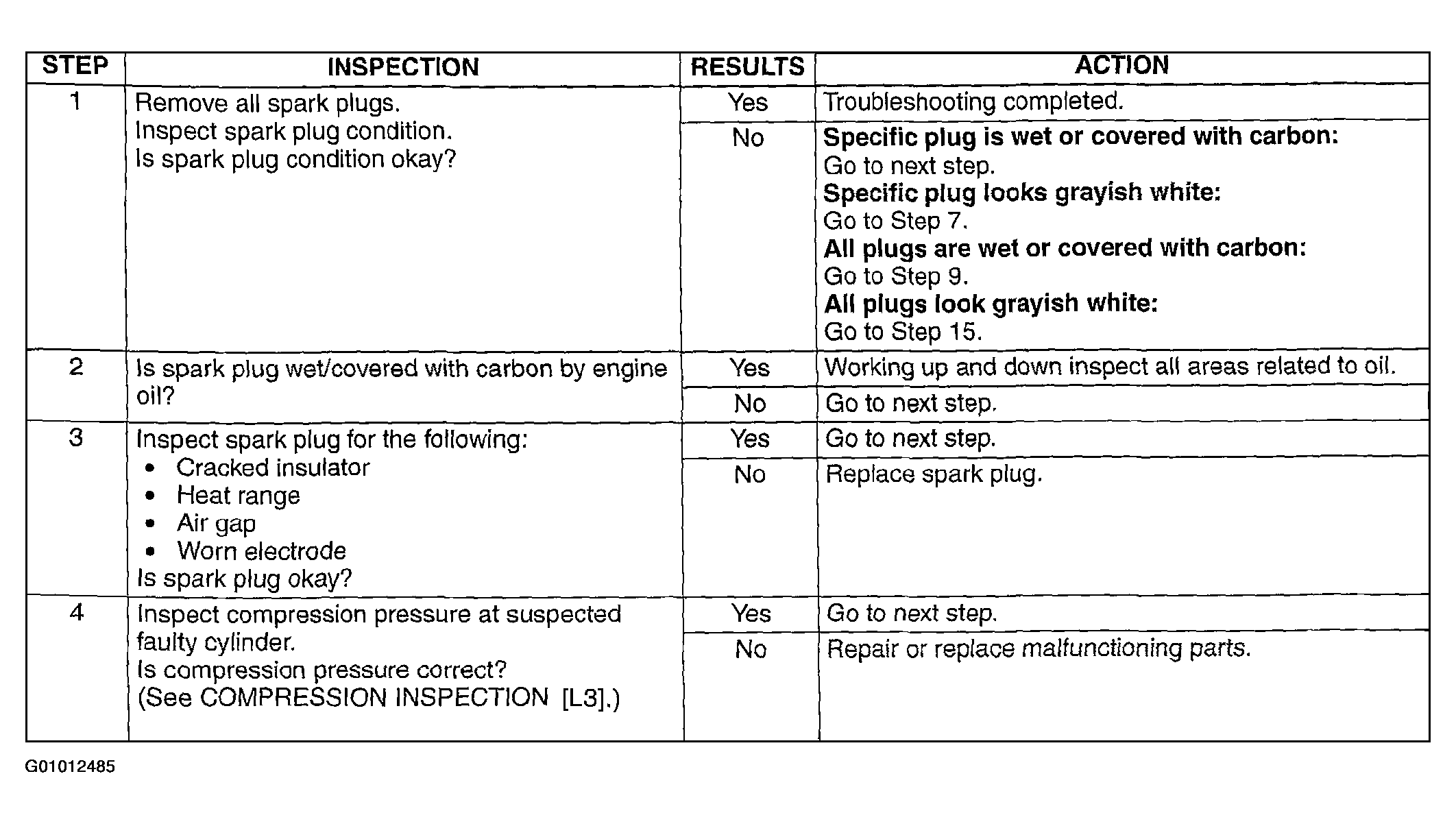

Fig 1: Symptom No.30 Spark Plug Condition - Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

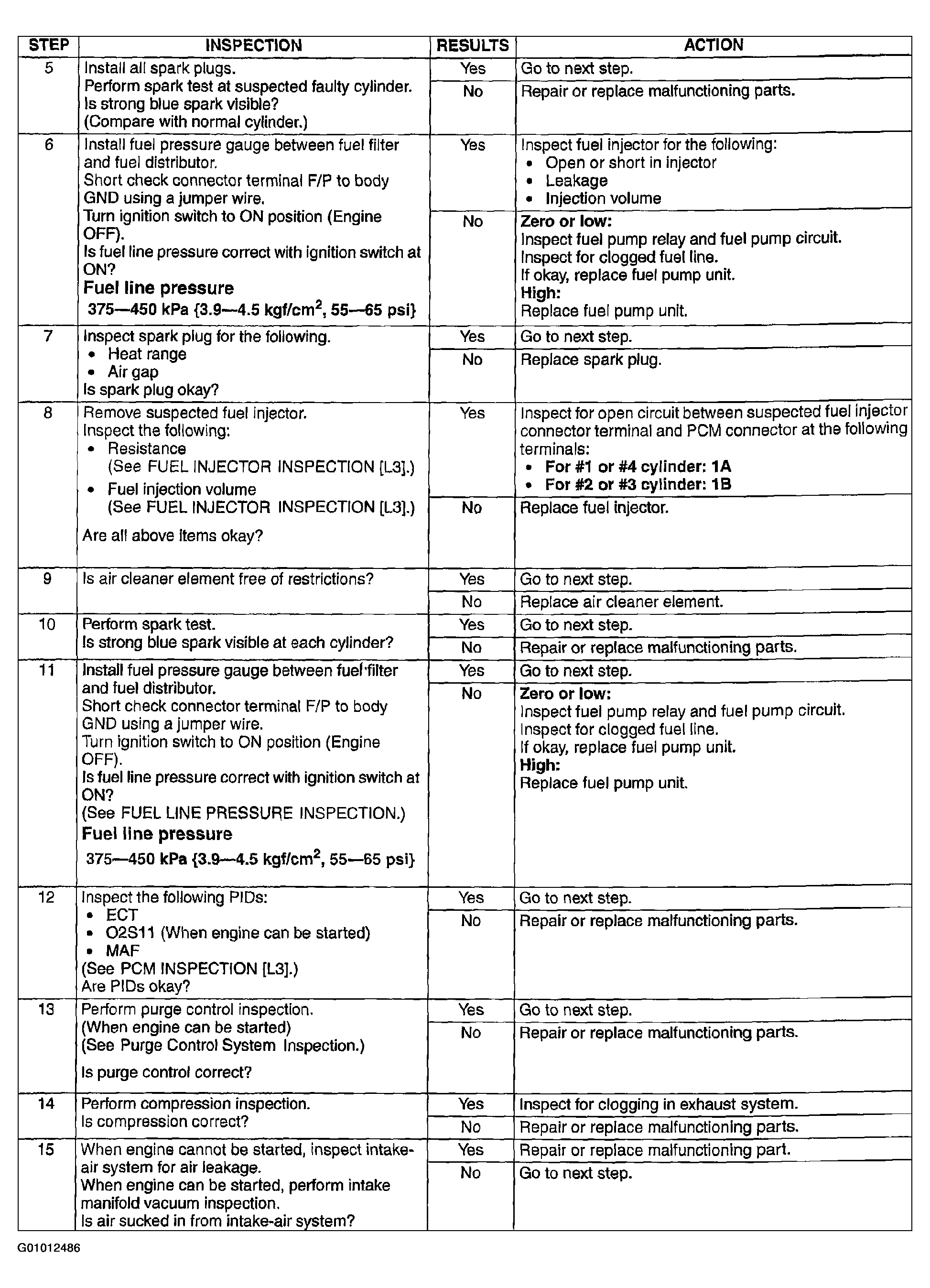

Fig 2: Symptom No.30 Spark Plug Condition - Diagnostic Procedure Chart (Steps 5-15)
Courtesy of MAZDA MOTORS CORP.

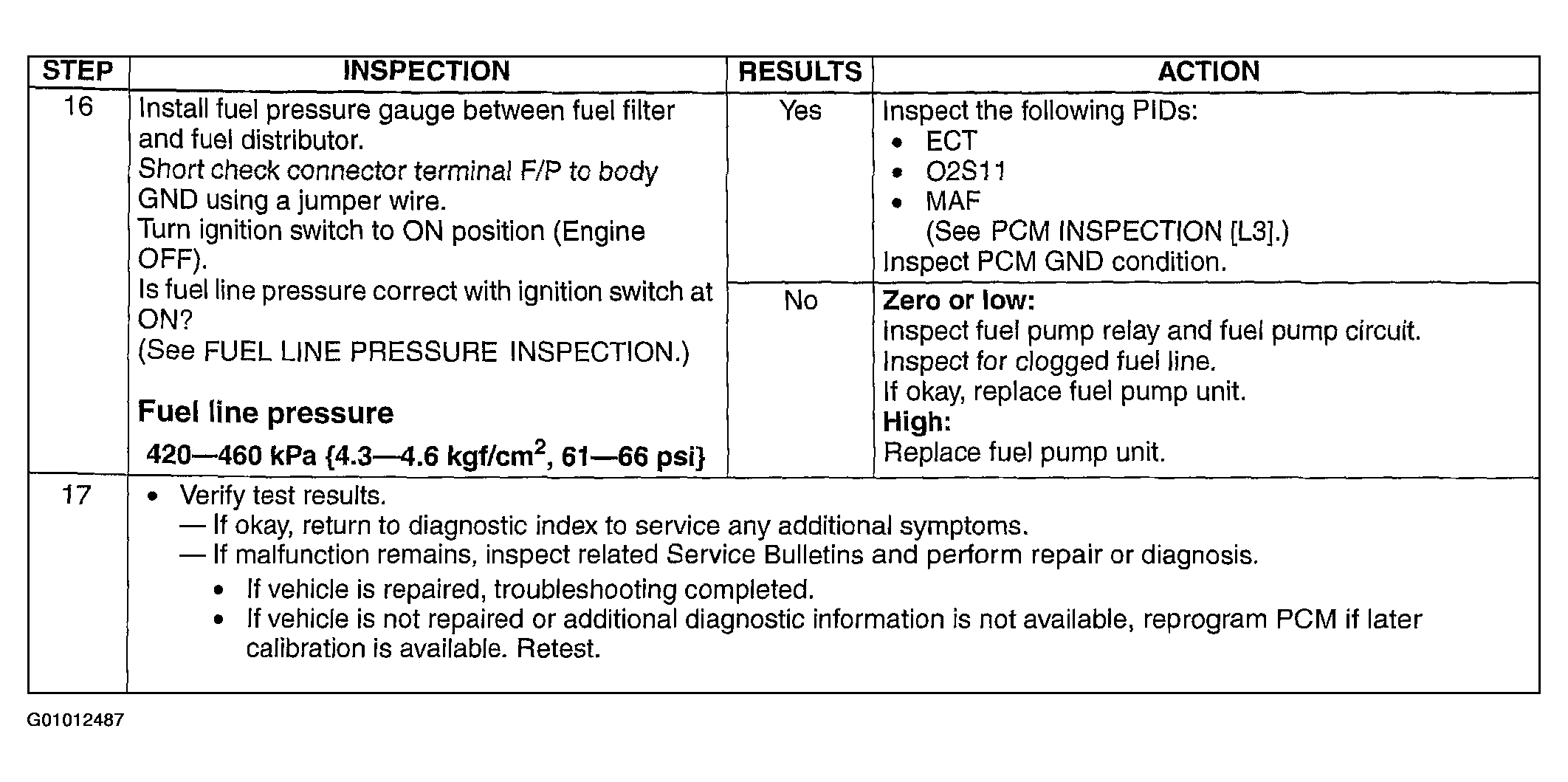

Fig 3: Symptom No.30 Spark Plug Condition - Diagnostic Procedure Chart (Steps 16-17)
Courtesy of MAZDA MOTORS CORP.
