Symptom Troubleshooting [Engine Control System (L3)
>>
No.27 Fuel Refill Concerns
>>
Diagnostic procedure
Diagnostic procedure

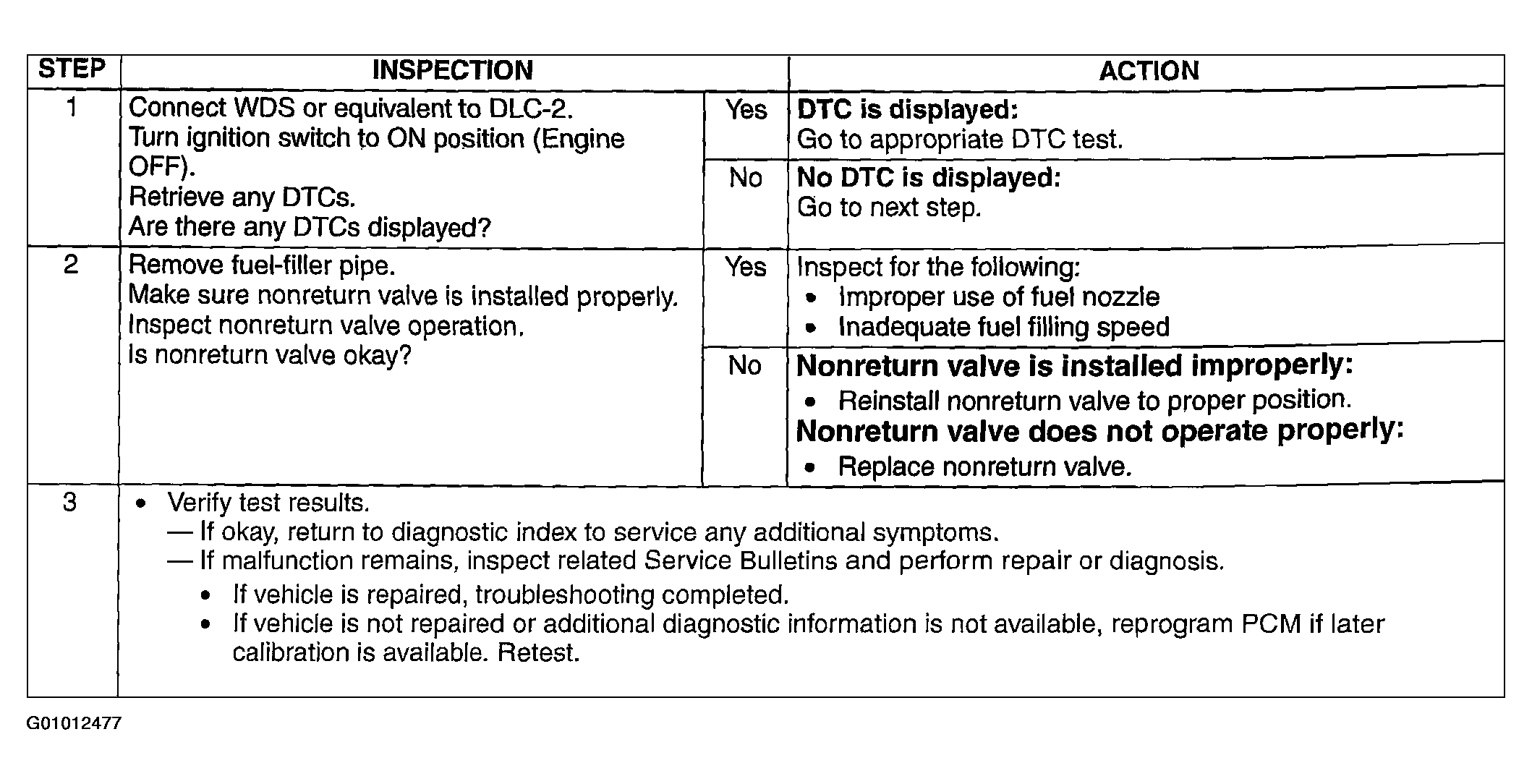

Fig 1: Symptom No.27 Fuel Refill Concerns - Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
