6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3)
>>
DTC P2502: Generator Terminal B Circuit Open
>>
Diagnostic procedure
Diagnostic procedure

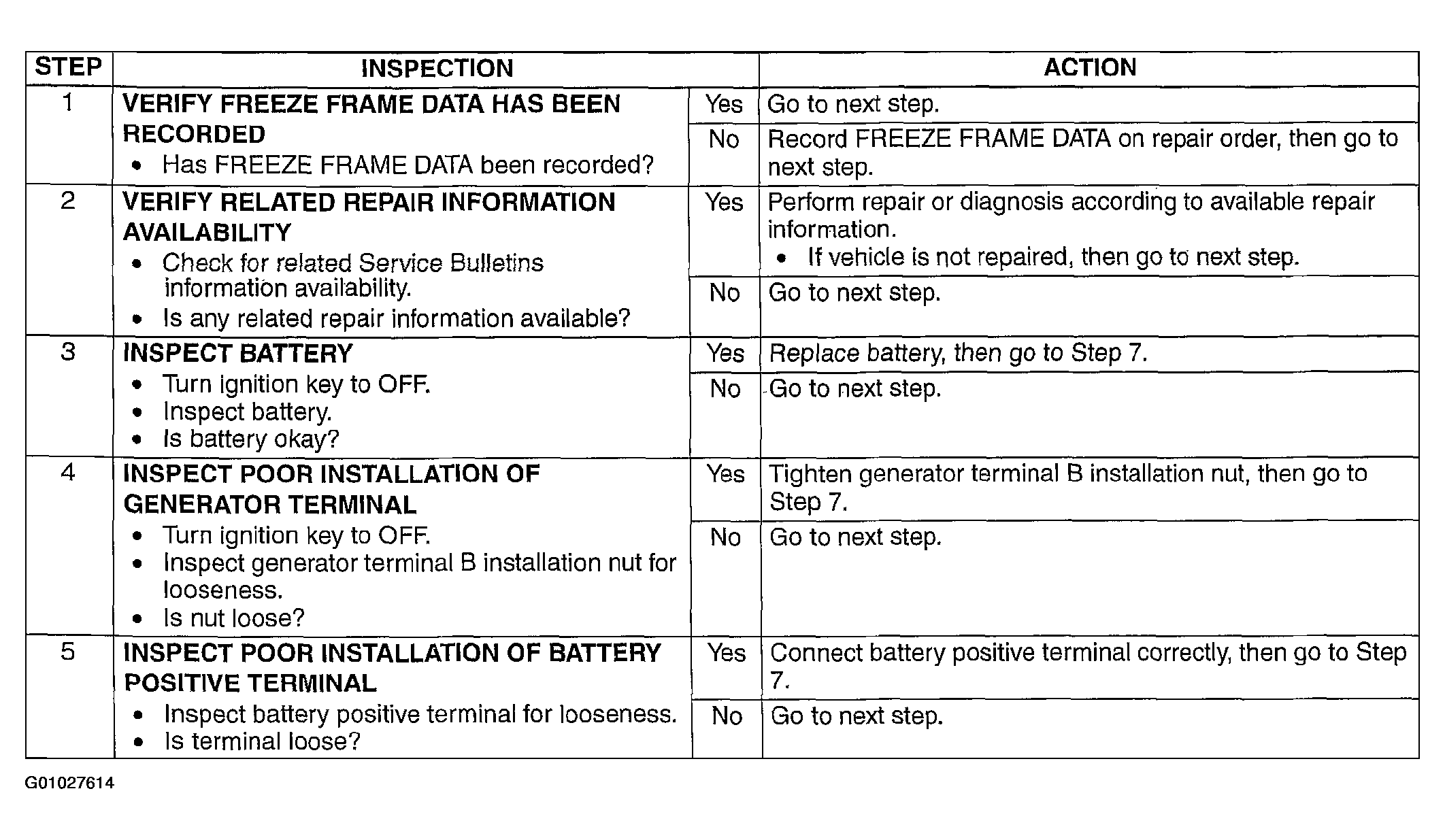

Fig 1: DTC P2502 - Diagnostic Procedure (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

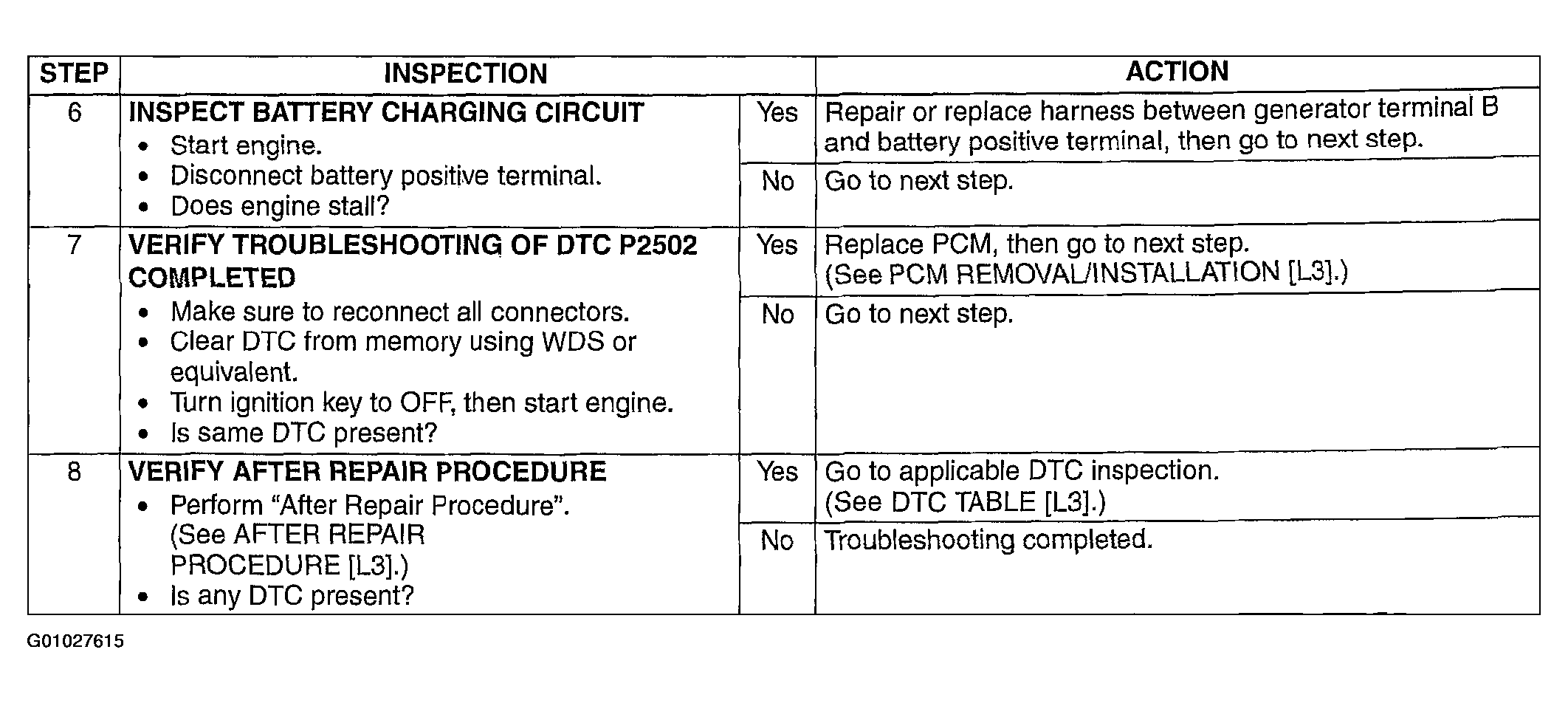

Fig 2: DTC P2502 - Diagnostic Procedure (Steps 6-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
