Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2402: Evaporative Emission System Leak Detection Pump Control Circuit High >> Notes

DTC P2402: Evaporative Emission System Leak Detection Pump Control Circuit High: Notes

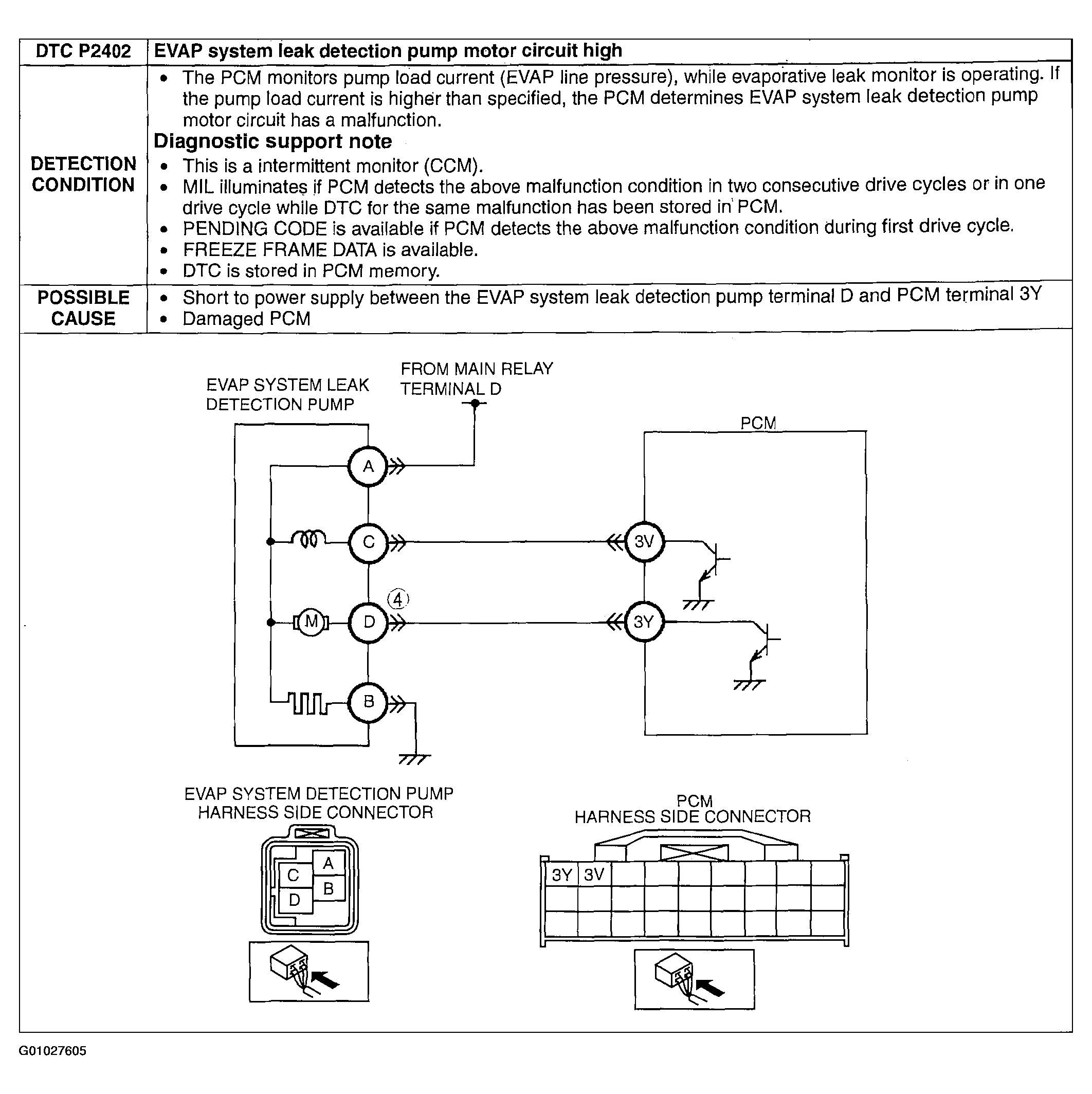

Fig 1: DTC P2402 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01027605Courtesy of MAZDA MOTORS CORP.
