Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2228: BARO Sensor Circuit Low Input >> Diagnostic procedure

Diagnostic procedure

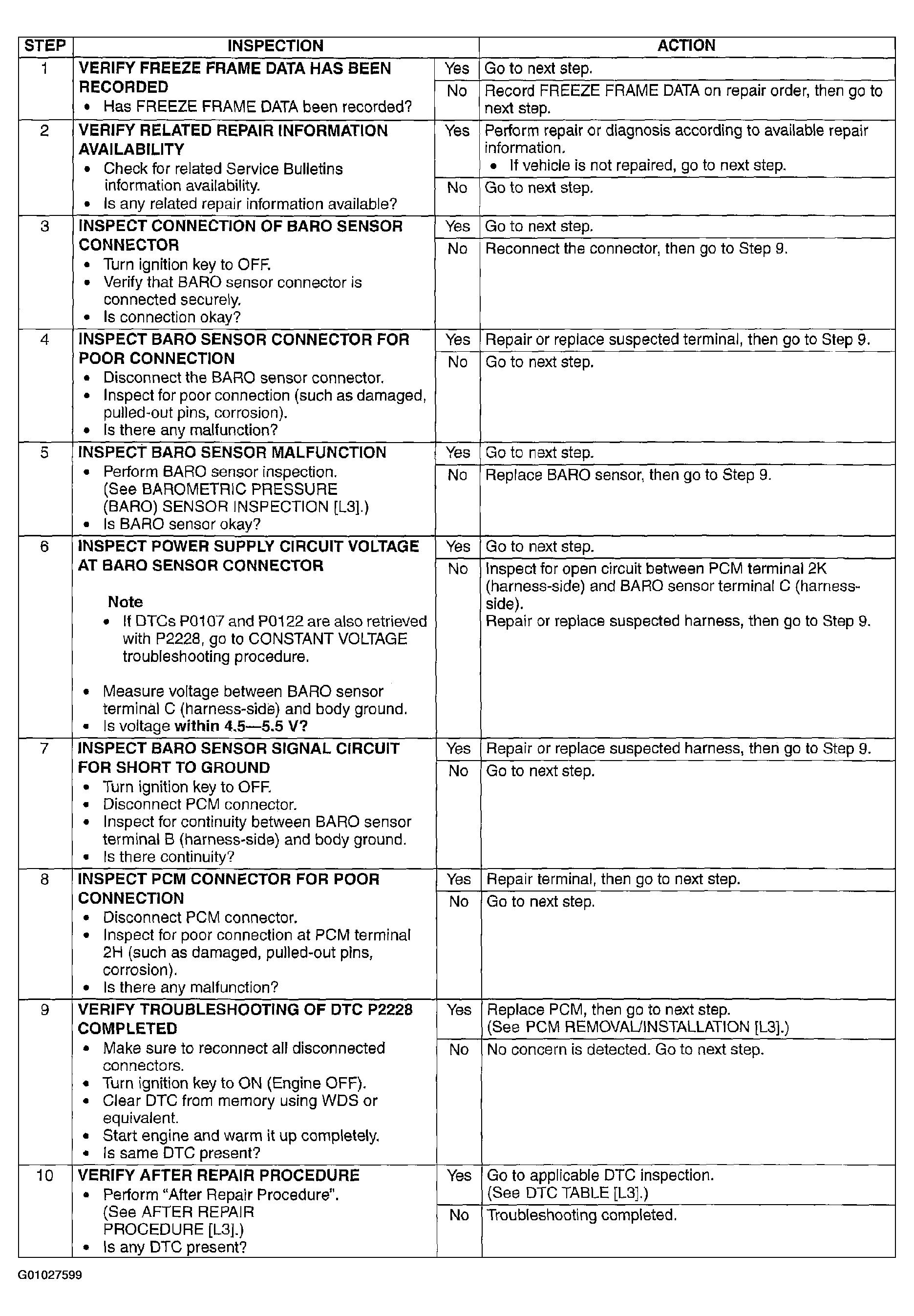

Fig 1: DTC P2228 - Diagnostic Procedure
G01027599Courtesy of MAZDA MOTORS CORP.
