DTC P2088: OCV Actuator Circuit Low: Notes

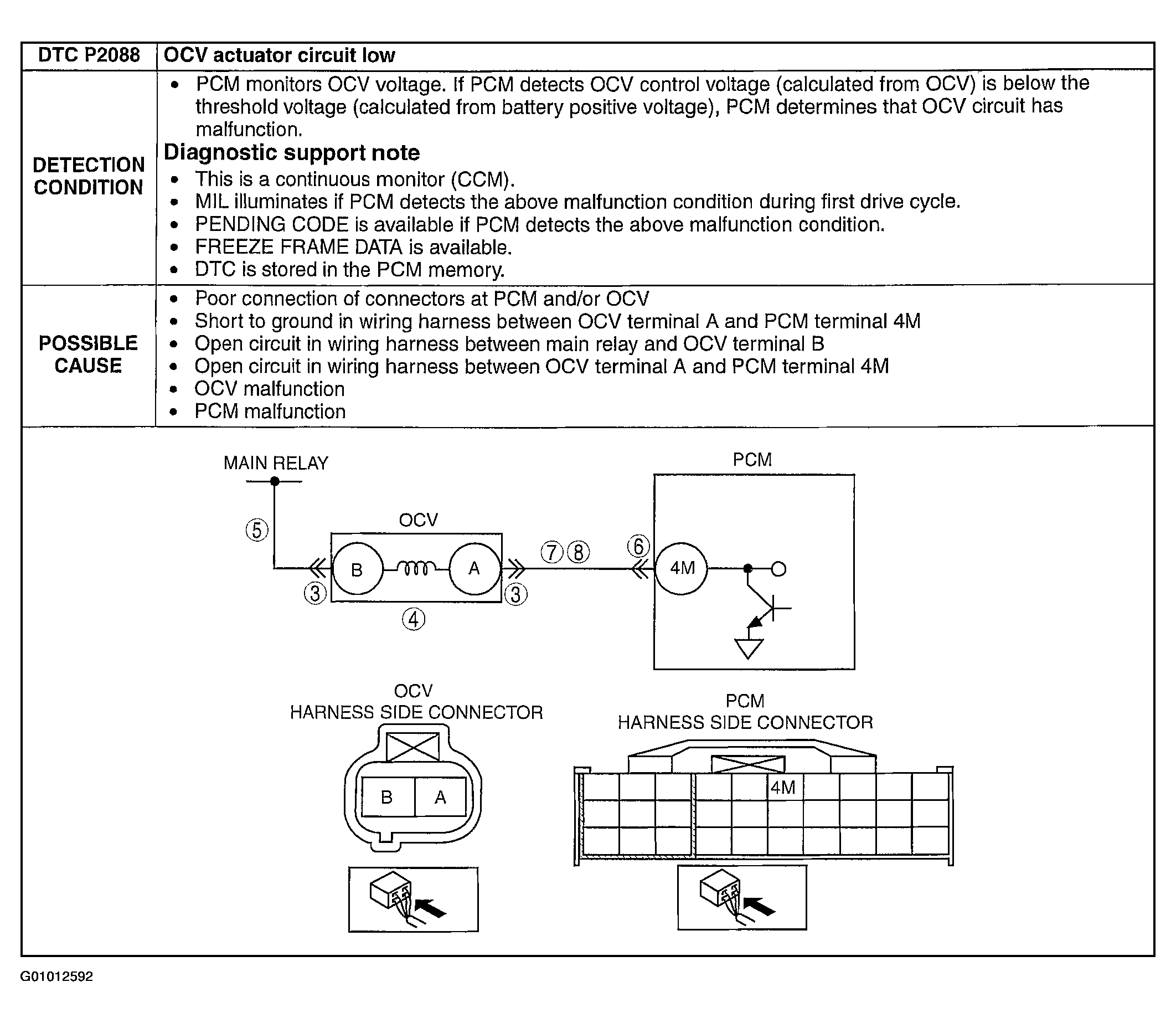

Fig 1: DTC P2088 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012592

Courtesy of MAZDA MOTORS CORP.
