Mazda
>>
2004
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3)
>>
DTC P2009: Variable Tumble Control Solenoid Valve Circuit Low Input
>>
Diagnostic procedure
Diagnostic procedure

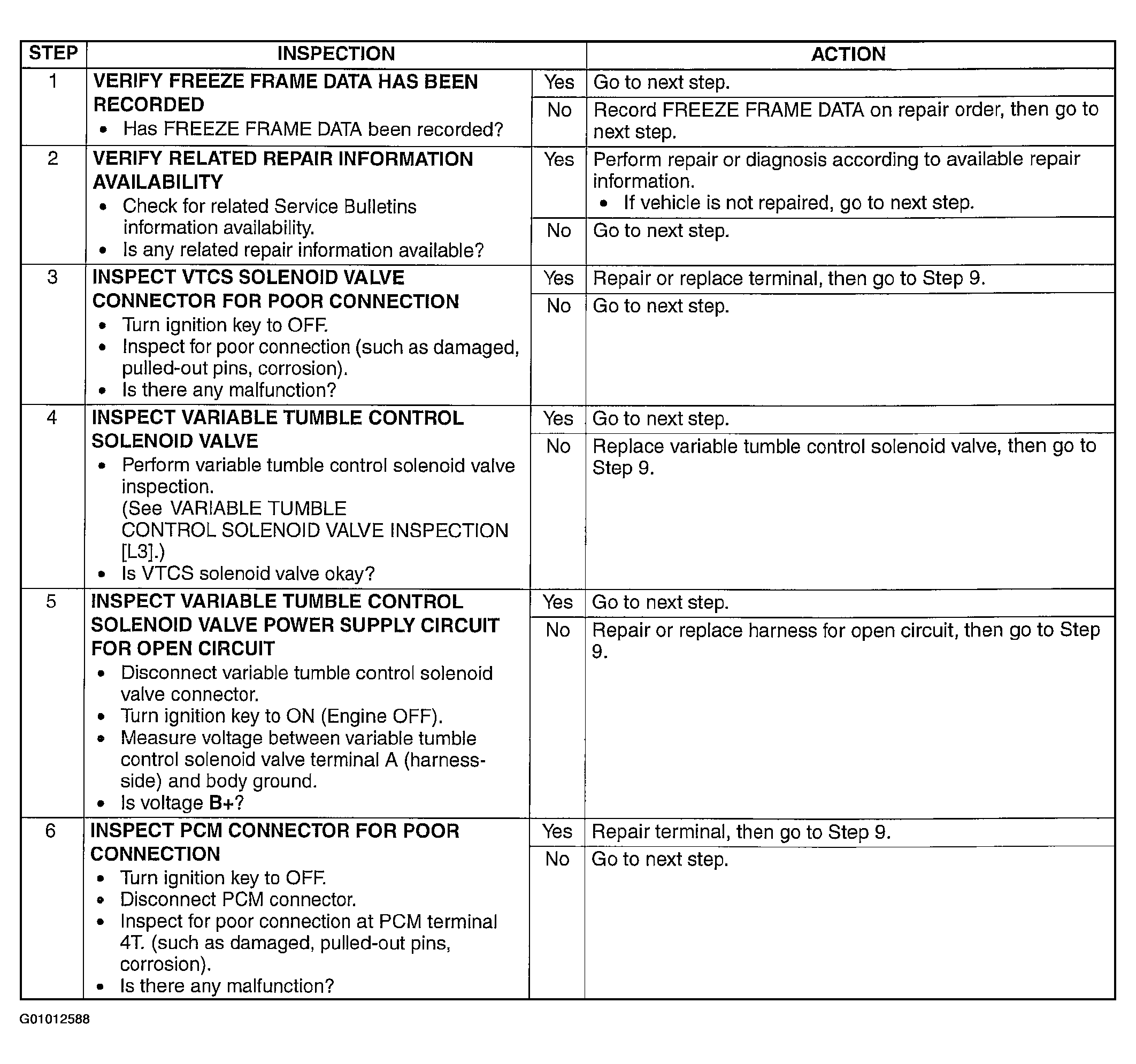

Fig 1: DTC P2009 - Diagnostic Procedure (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

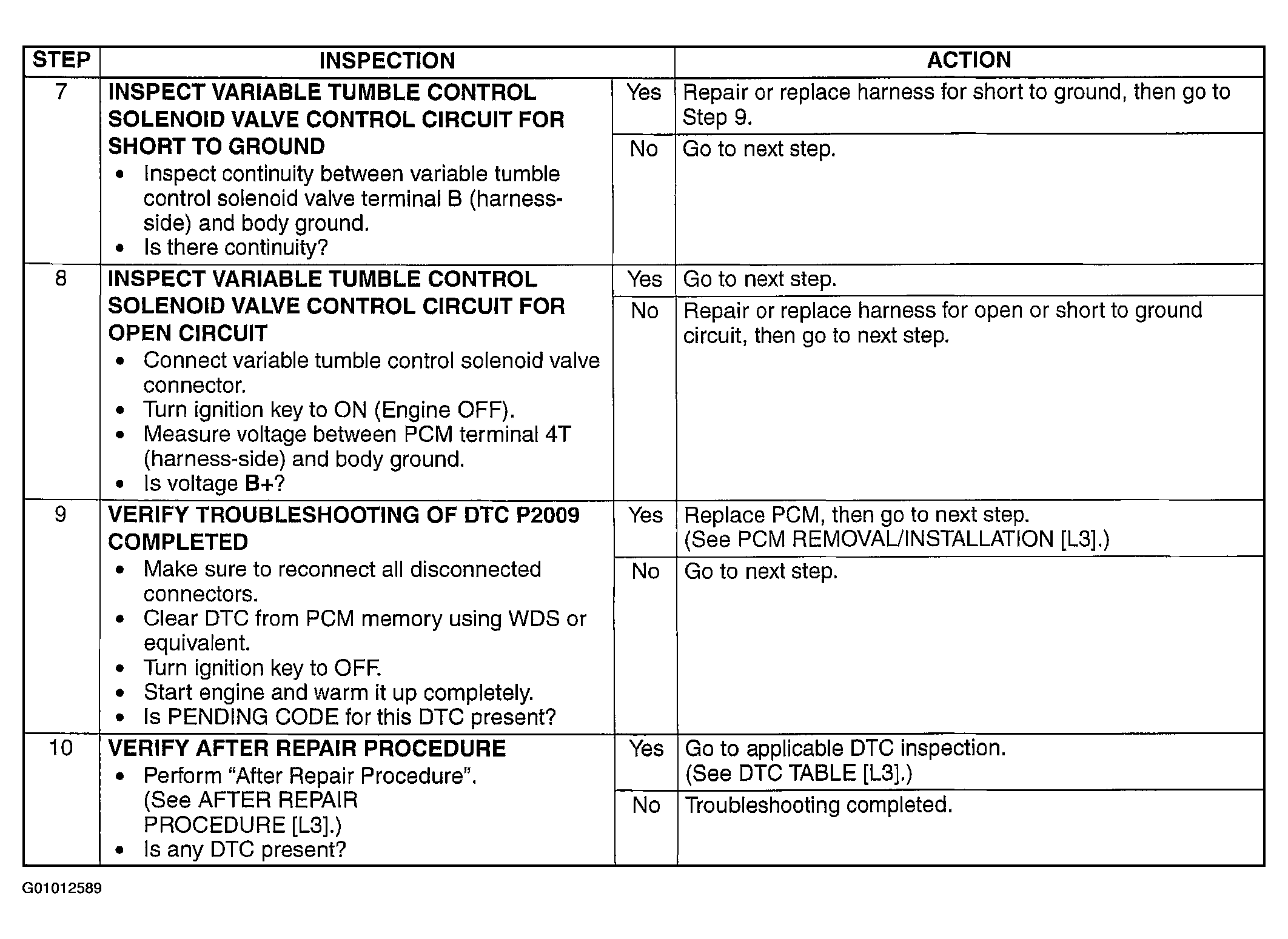

Fig 2: DTC P2009 - Diagnostic Procedure (Steps 7-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
