DTC P0703: Brake Switch No. 1 Circuit Malfunction: Notes

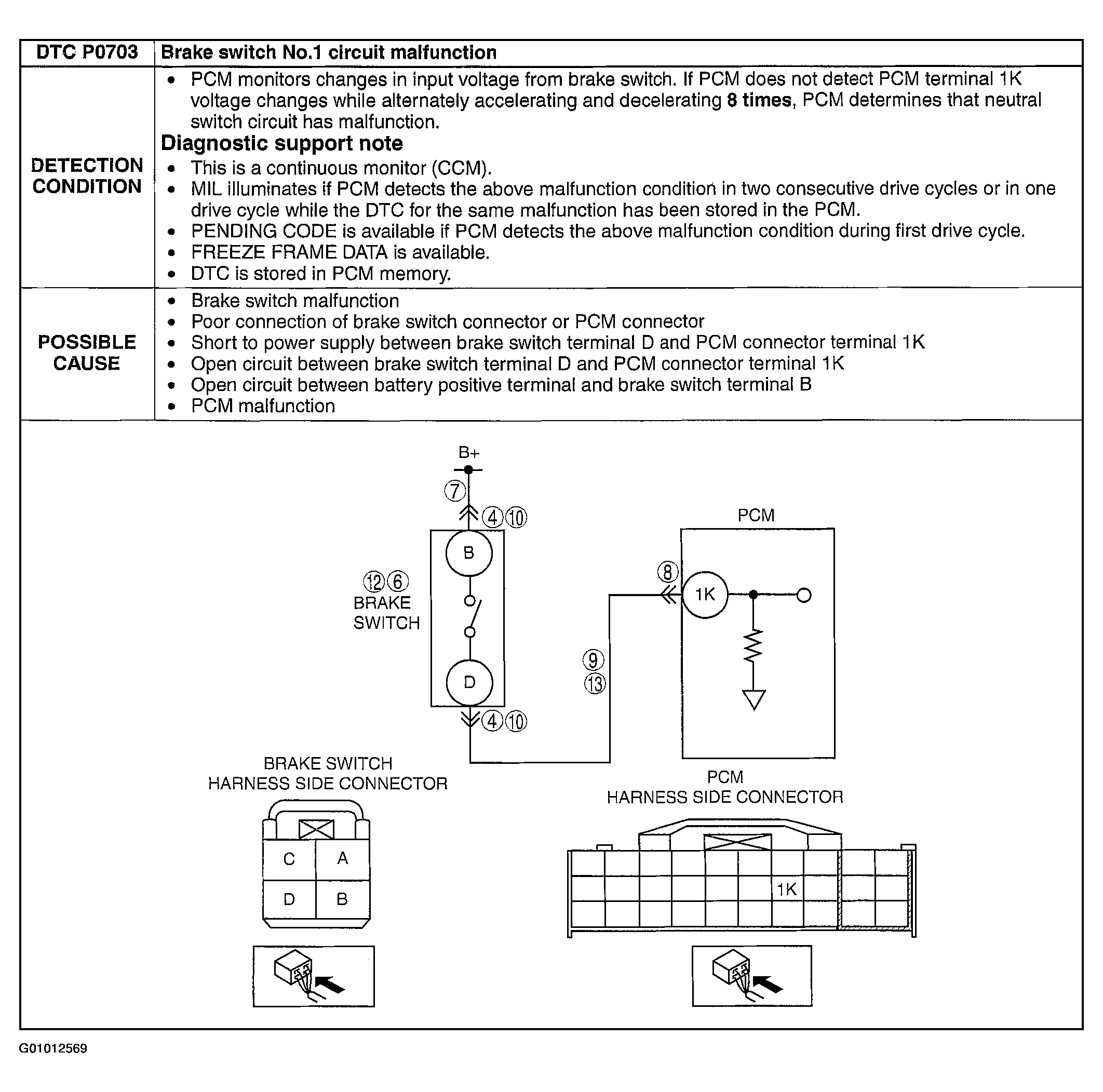

Fig 1: DTC P0703 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012569

Courtesy of MAZDA MOTORS CORP.
