On-Board Diagnostic [Engine Control System L3)
>>
DTC P0505: Idle Control System Malfunction
>>
Diagnostic procedure
Diagnostic procedure

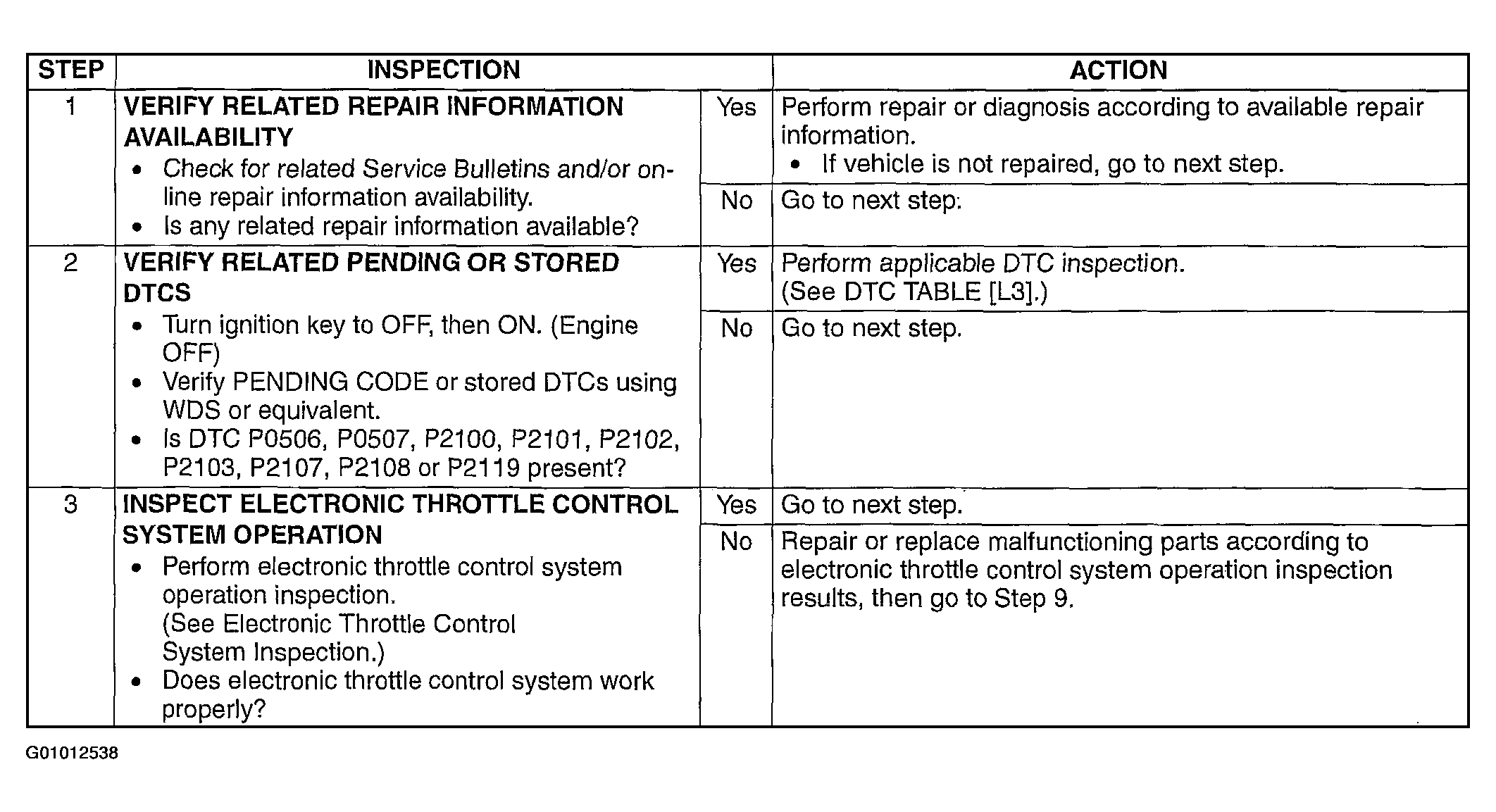

Fig 1: DTC P0505 - Diagnostic Procedure (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

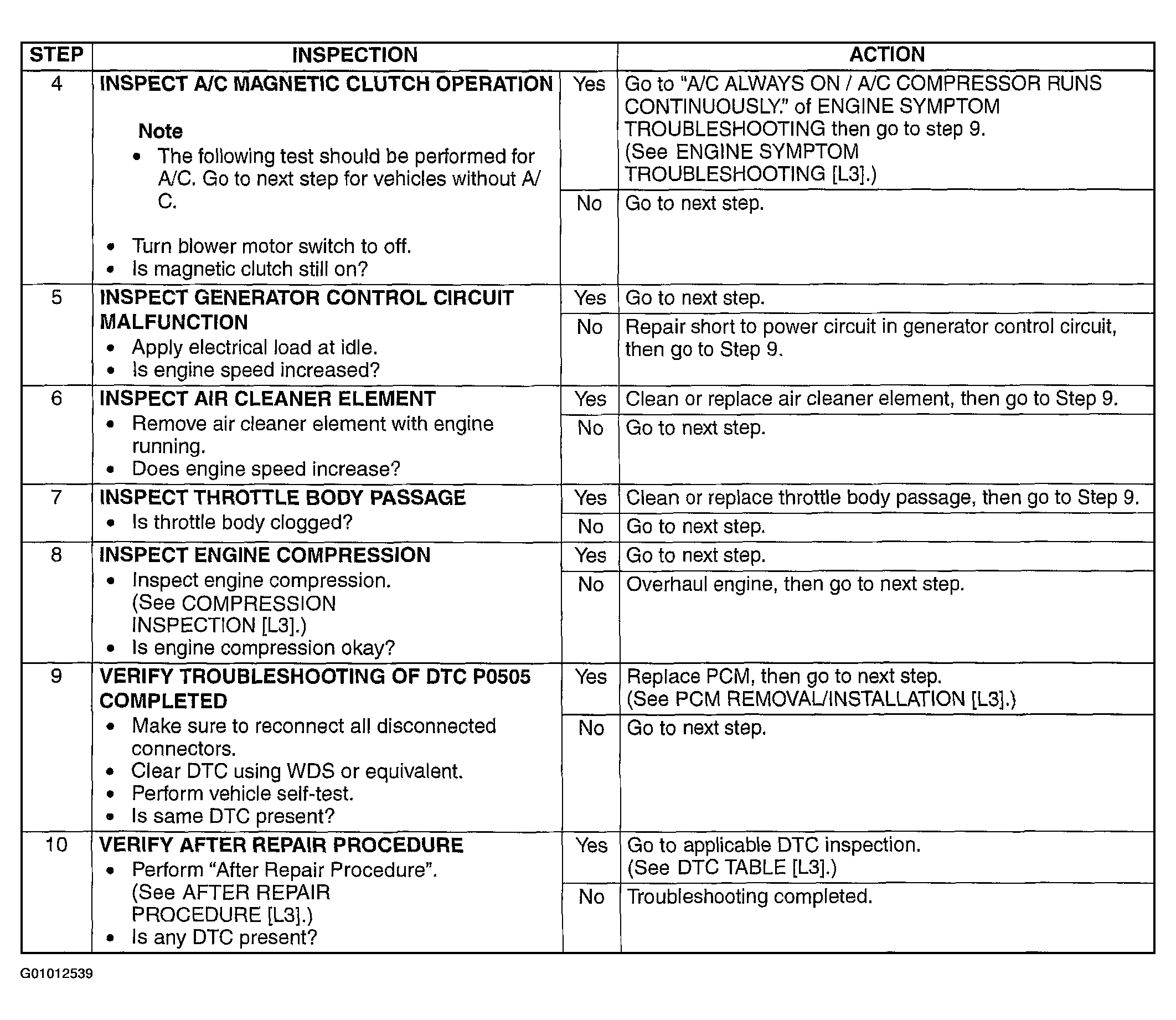

Fig 2: DTC P0505 - Diagnostic Procedure (Steps 4-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
