DTC P0500: Vehicle Speed Sensor (VSS) Circuit Malfunction: Notes

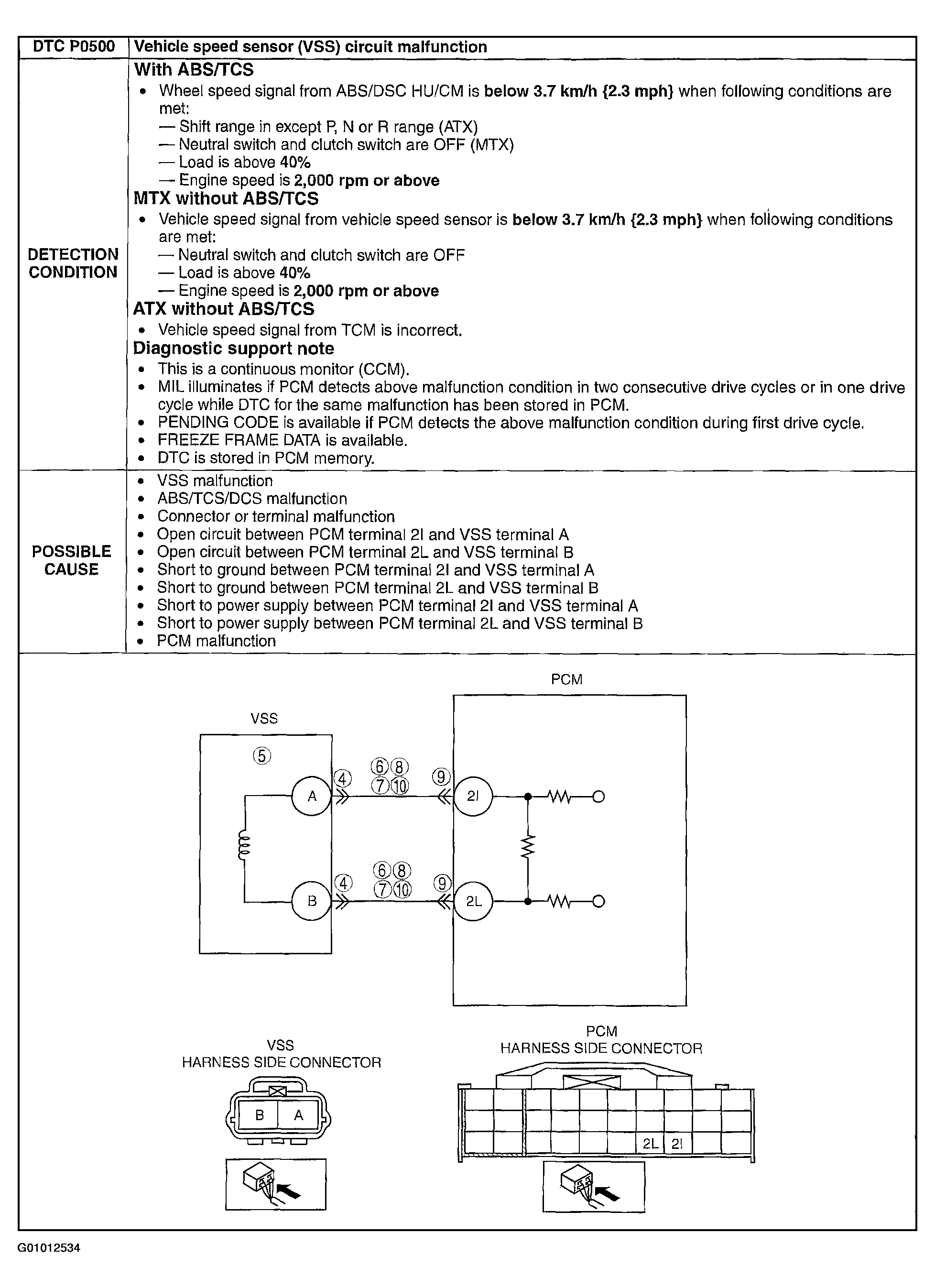

Fig 1: DTC P0500 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012534

Courtesy of MAZDA MOTORS CORP.
