Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P0462: Fuel Gauge Sender Unit Circuit Low Input >> Notes

DTC P0462: Fuel Gauge Sender Unit Circuit Low Input: Notes

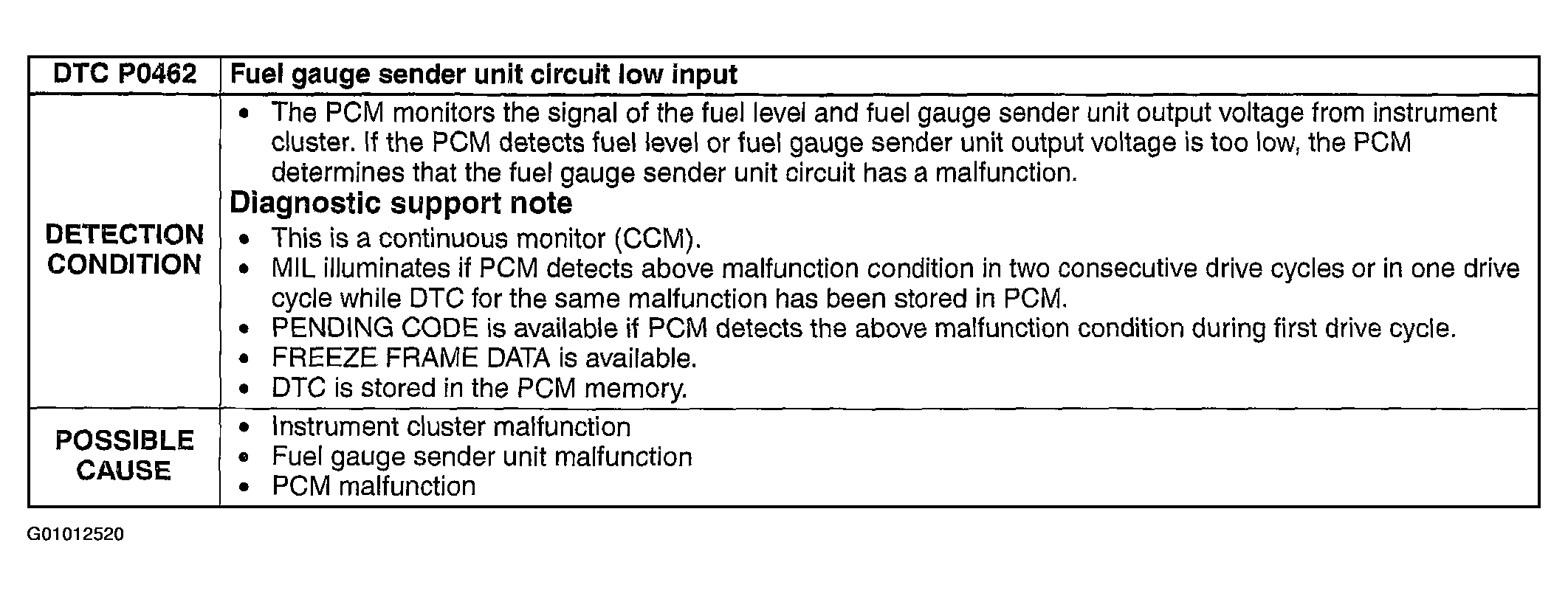

Fig 1: DTC P0462 - Detection Conditions & Possible Causes

G01012520

Courtesy of MAZDA MOTORS CORP.
