On-Board Diagnostic [Engine Control System L3)
>>
DTC P0300: Random Misfire Detected
>>
Diagnostic procedure
Diagnostic procedure

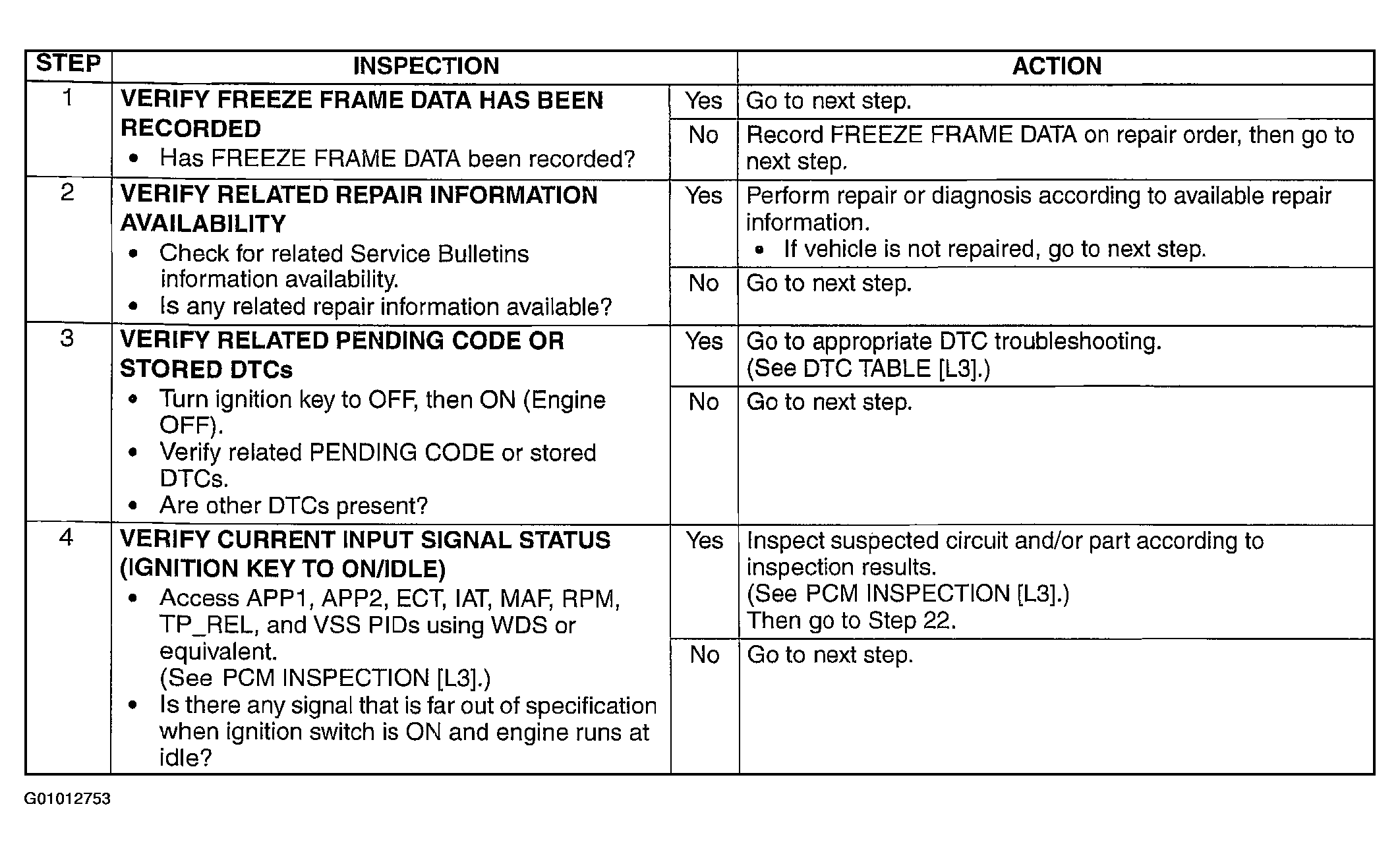

Fig 1: DTC P0300 - Diagnostic Procedure (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

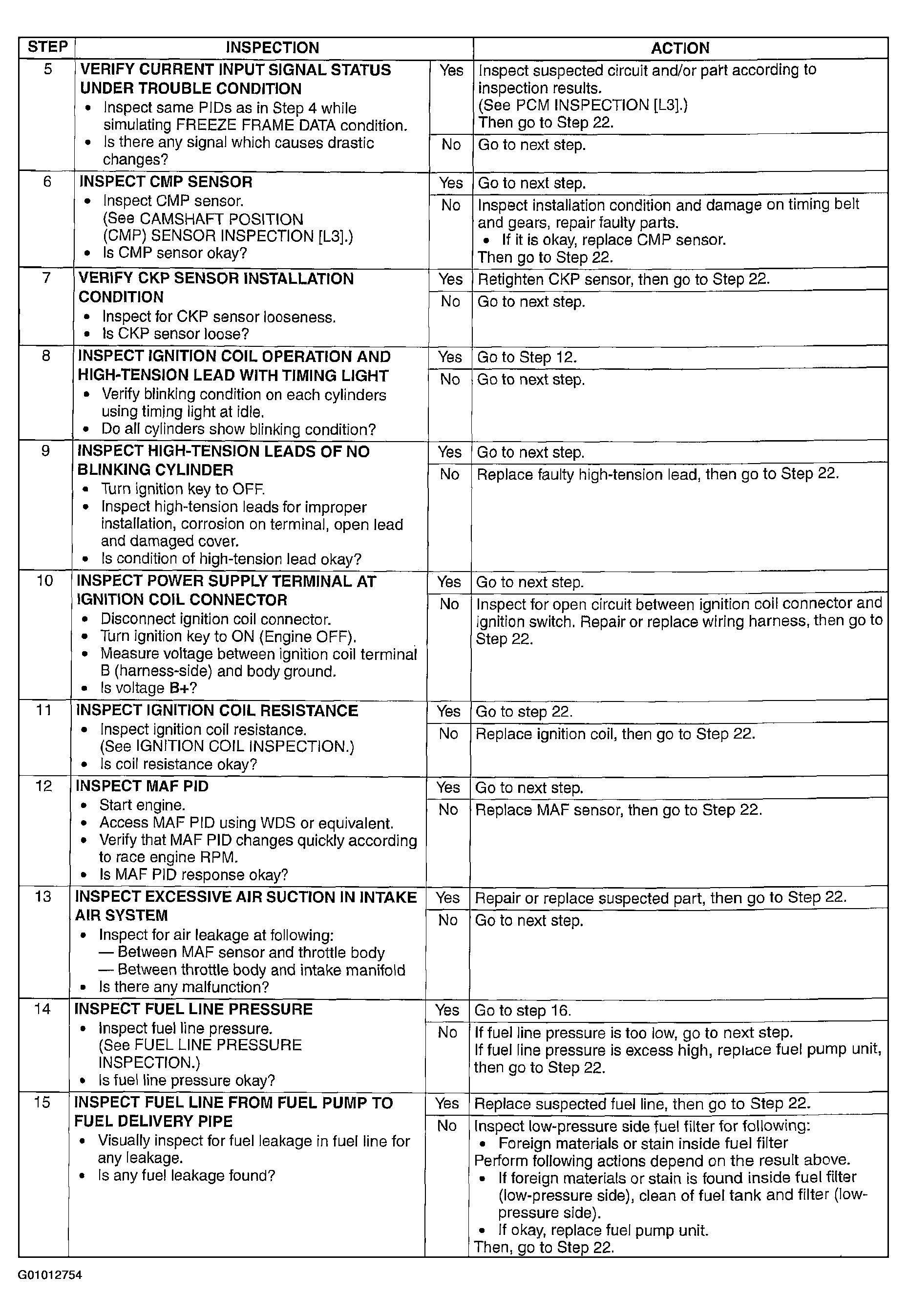

Fig 2: DTC P0300 - Diagnostic Procedure (Steps 5-15)
Courtesy of MAZDA MOTORS CORP.

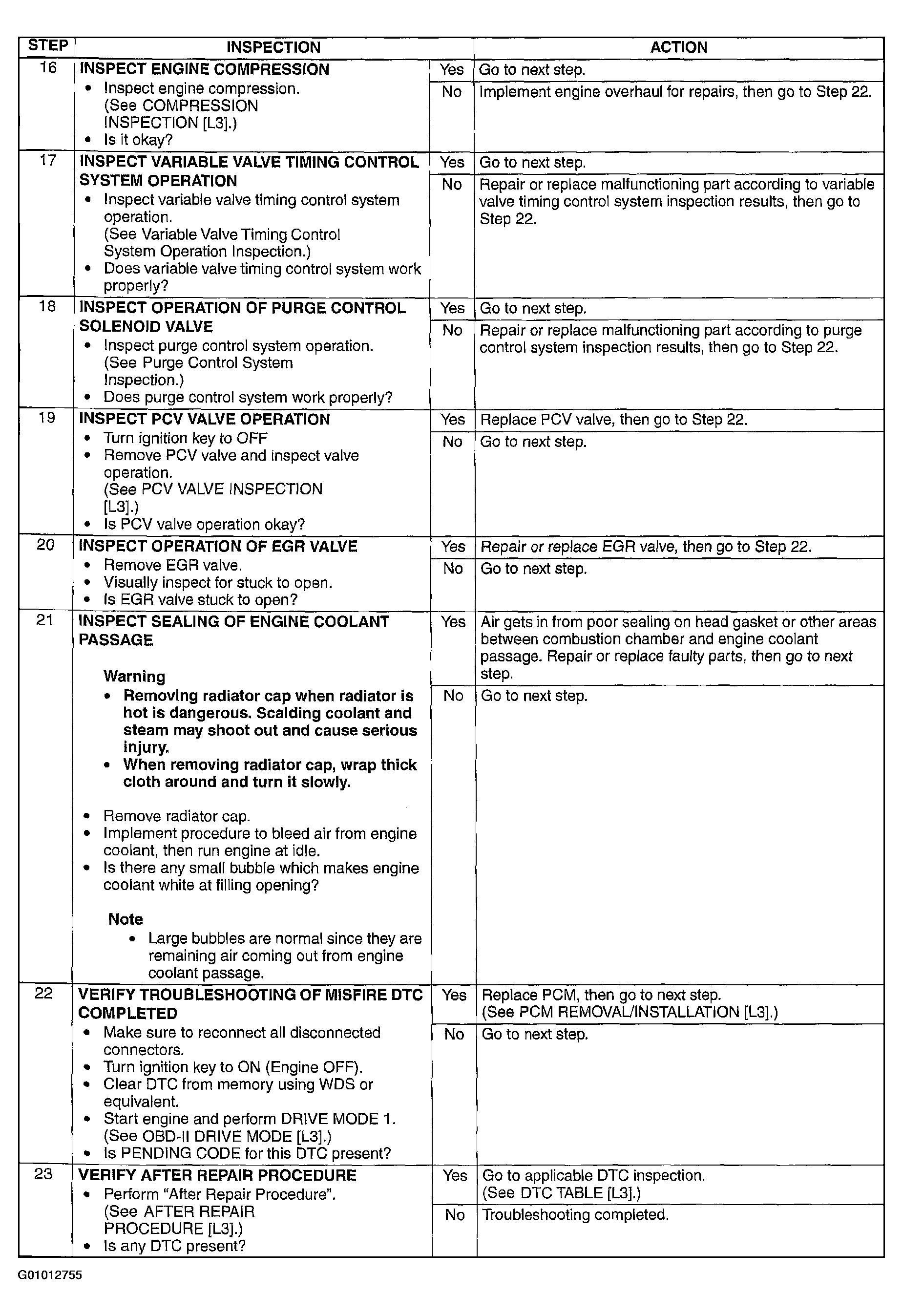

Fig 3: DTC P0300 - Diagnostic Procedure (Steps 16-23)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
