On-Board Diagnostic [Engine Control System L3)
>>
DTC P0134: Front Ho2S Circuit No Activity Detected
>>
Diagnostic procedure
Diagnostic procedure

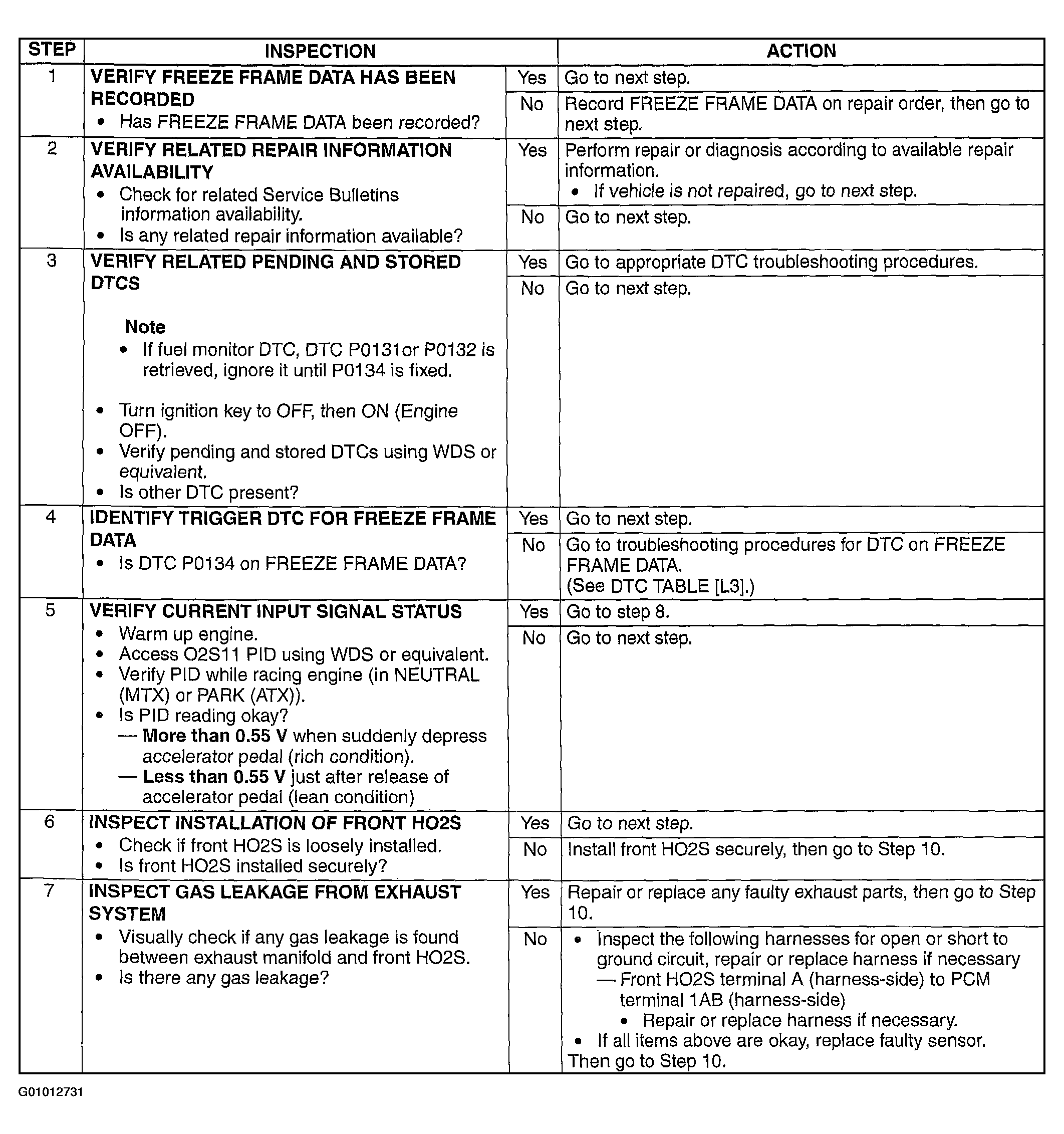

Fig 1: DTC P0134 - Diagnostic Procedure (Steps 1-7)
Courtesy of MAZDA MOTORS CORP.

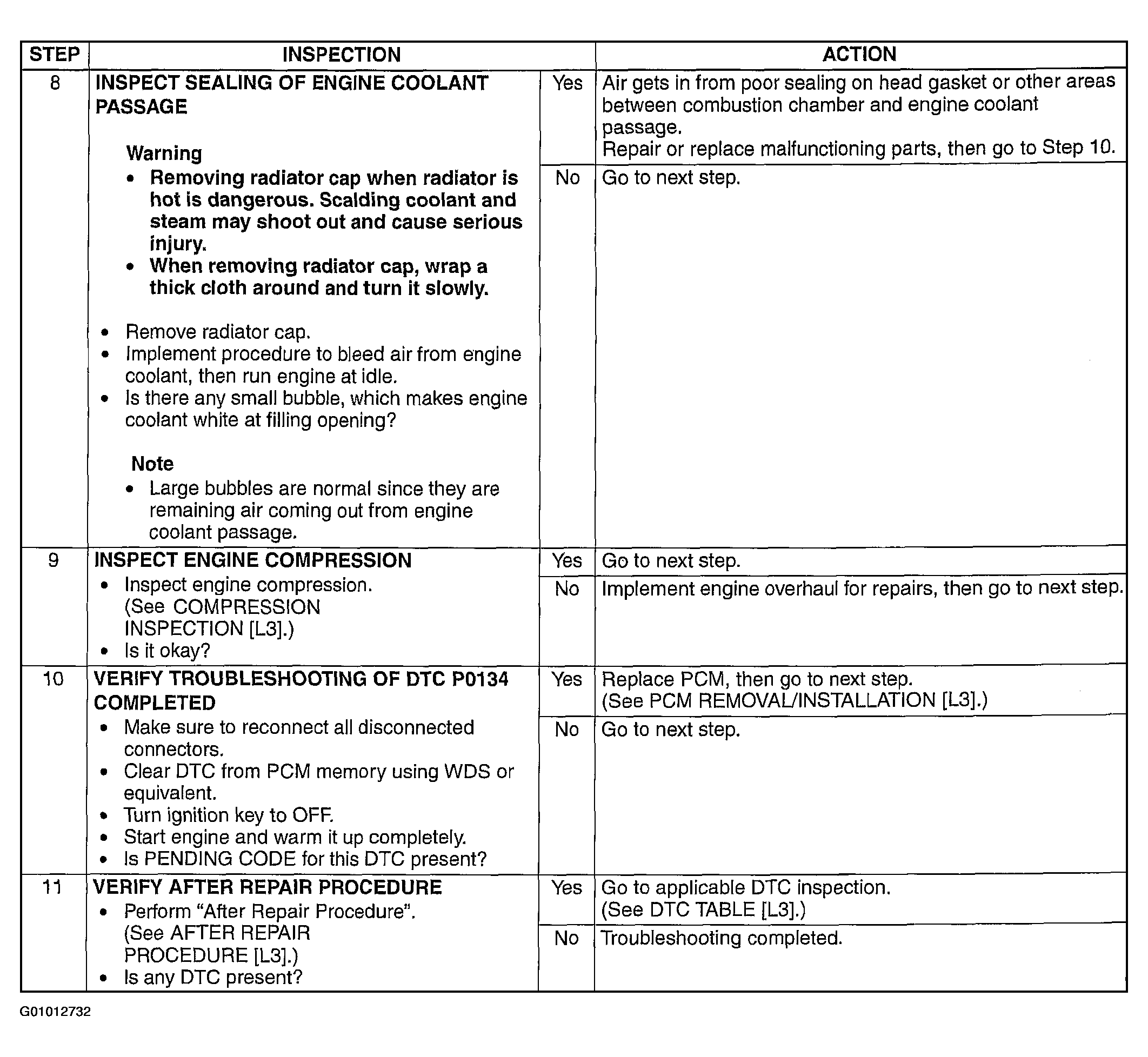

Fig 2: DTC P0134 - Diagnostic Procedure (Steps 8-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
