Home
>>
Mazda
>>
2004
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3)
>>
DTC P0125: Excessive Time To Enter Closed Loop Fuel Control
>>
Diagnostic procedure
Diagnostic procedure

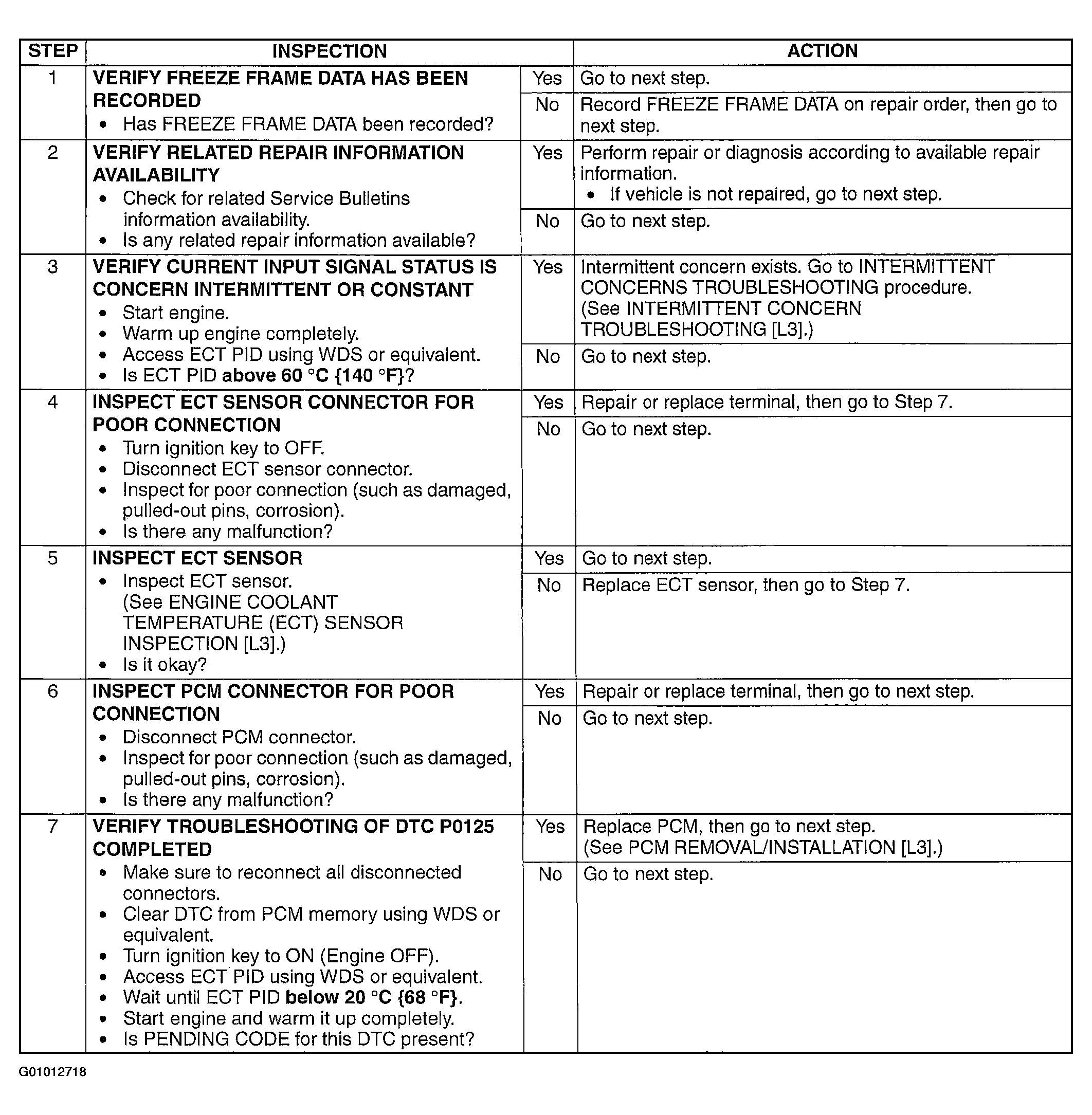

Fig 1: DTC P0125 - Diagnostic Procedure (Steps 1-7)
Courtesy of MAZDA MOTORS CORP.

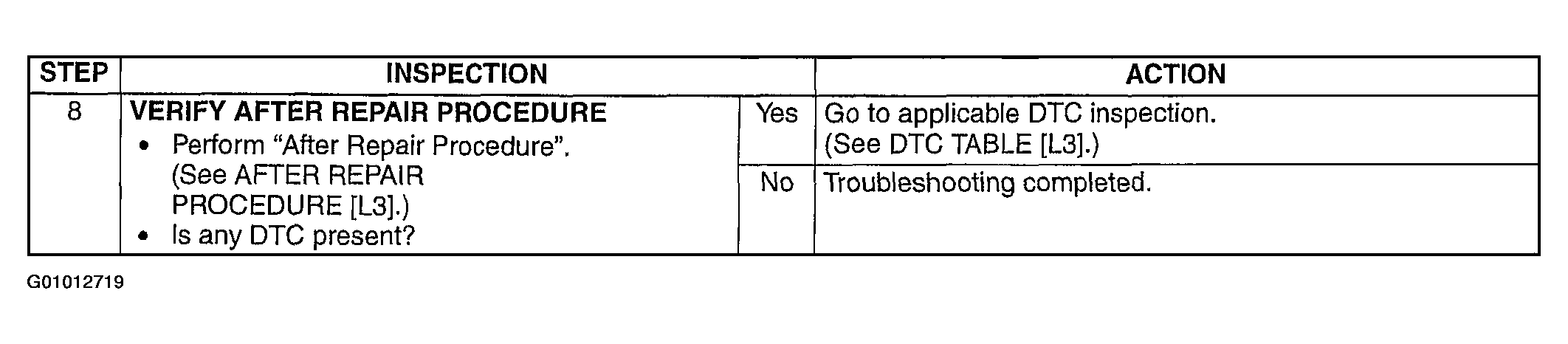

Fig 2: DTC P0125 - Diagnostic Procedure (Step 8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
