Mike's Workshop Manuals: Service manuals for every vehicle
Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P0117: ECT Circuit Low Input >> Diagnostic procedure

Diagnostic procedure

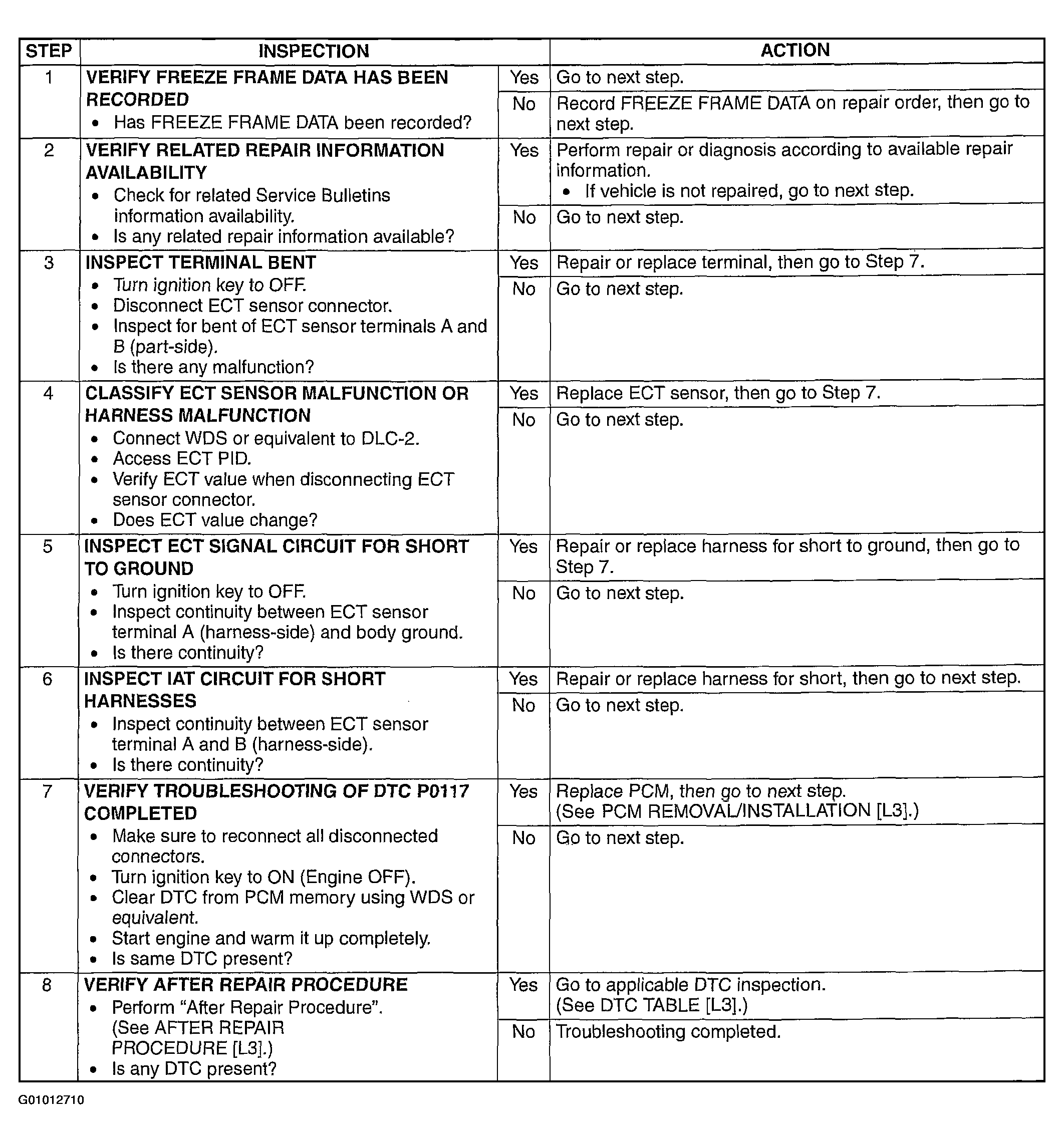

Fig 1: DTC P0117 - Diagnostic Procedure
G01012710Courtesy of MAZDA MOTORS CORP.
