Primary Shaft Components Disassembly: Notes

Disassemble in the order shown in the figure.

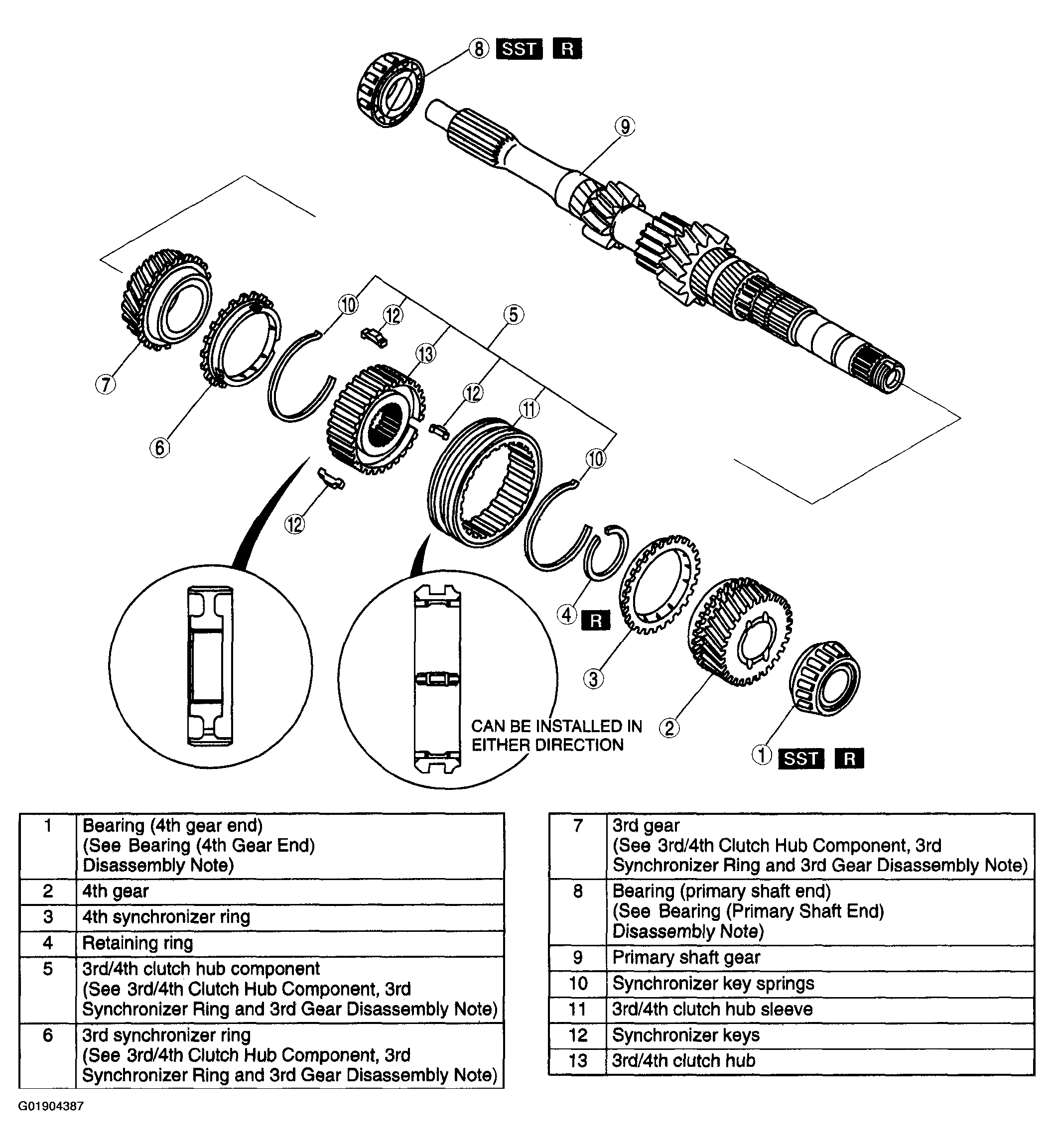

Fig 1: Disassembling Primary Shaft Components

G01904387

Courtesy of MAZDA MOTORS CORP.
