Primary Shaft Components Assembly: Notes

Assemble in the order shown in the figure.

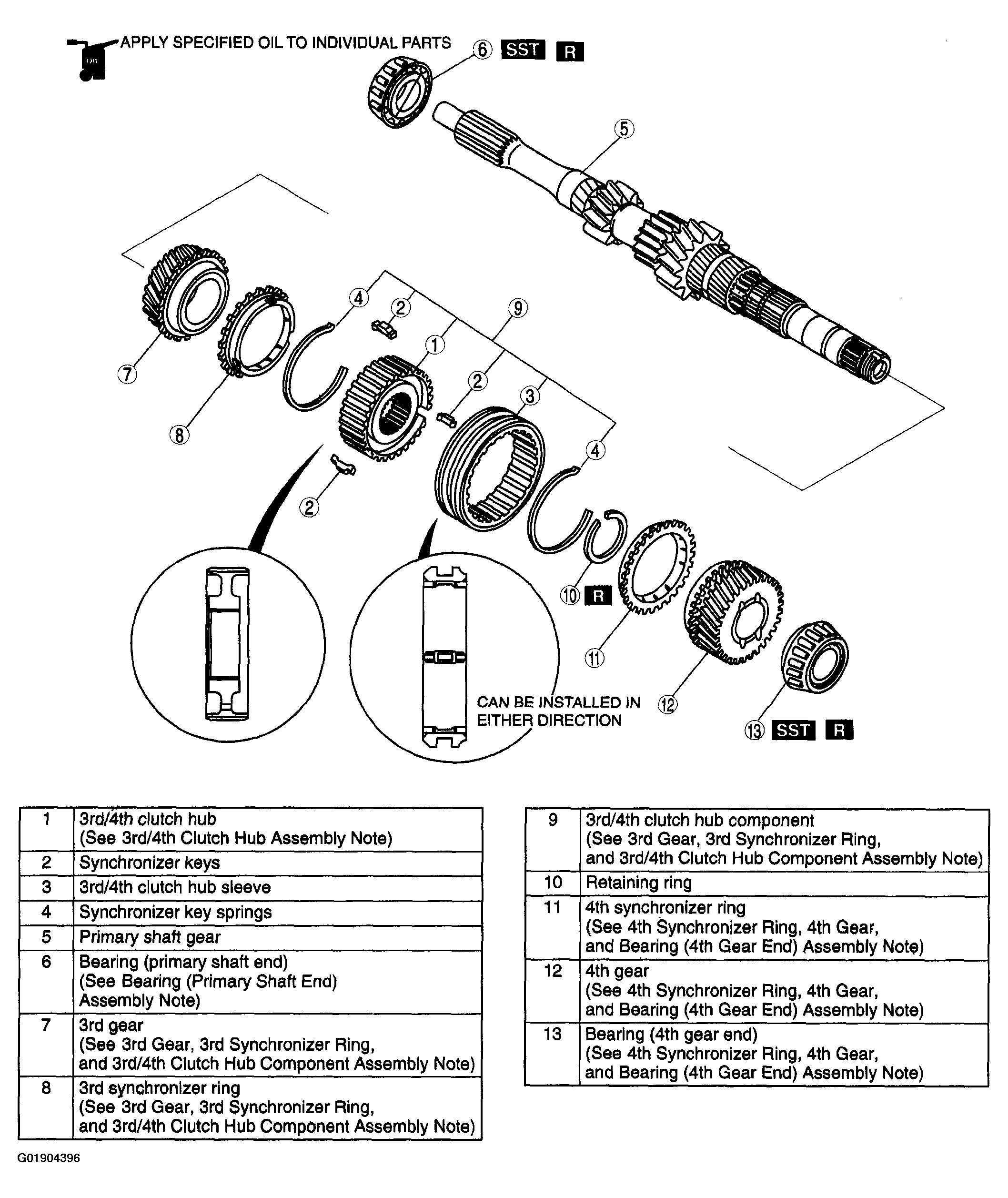

Fig 1: Assembling Primary Shaft

G01904396

Courtesy of MAZDA MOTORS CORP.
