Differential Assembly: Notes

Assemble in the order shown in the figure.

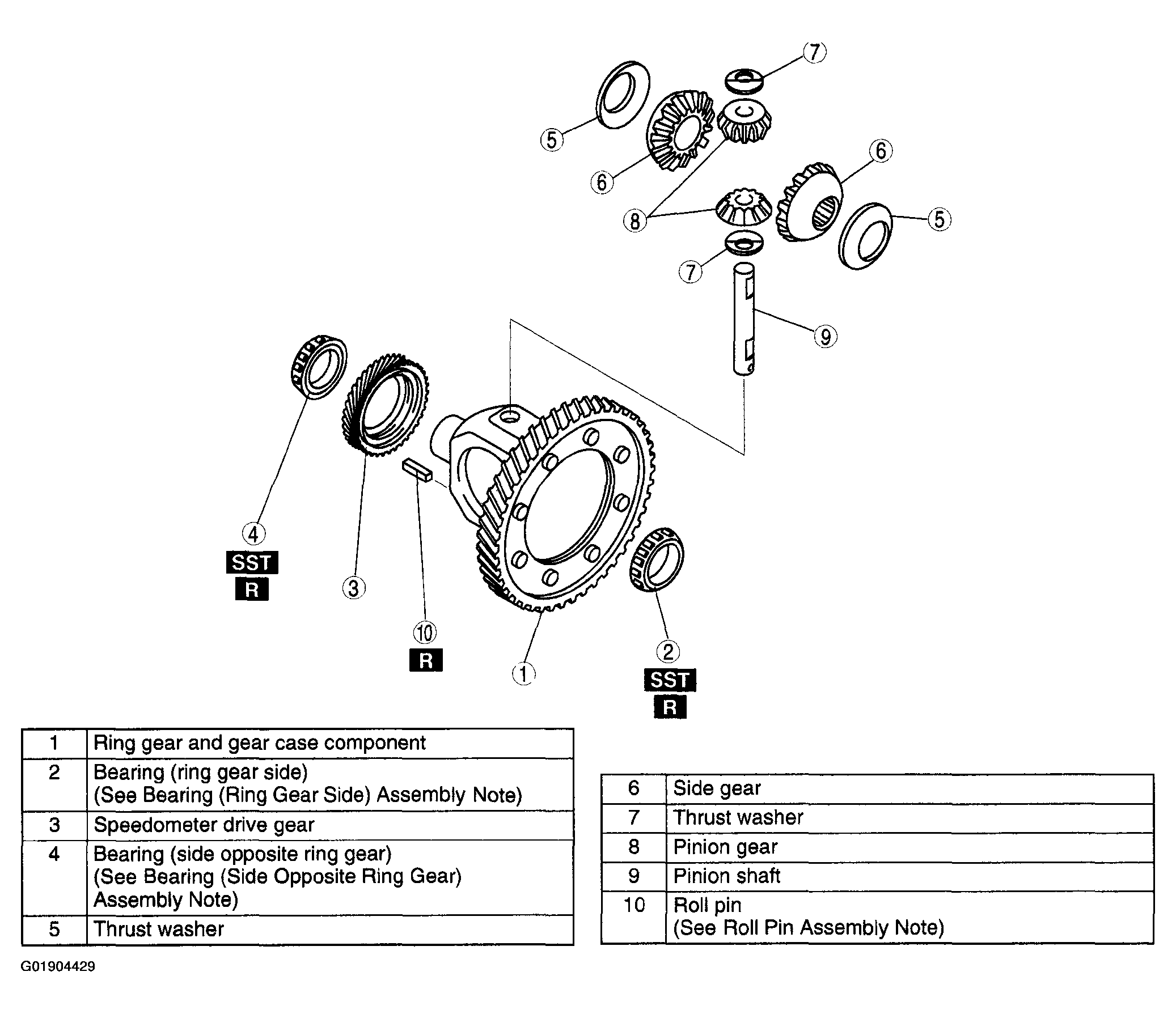

Fig 1: Assembling Differential

G01904429

Courtesy of MAZDA MOTORS CORP.
