Manual Transaxle - Overhaul (G35M-R)
>>
Clutch Housing And Transaxle Case Components Disassembly
>>
Notes
Clutch Housing And Transaxle Case Components Disassembly: Notes
Disassemble in the order shown in the figure.

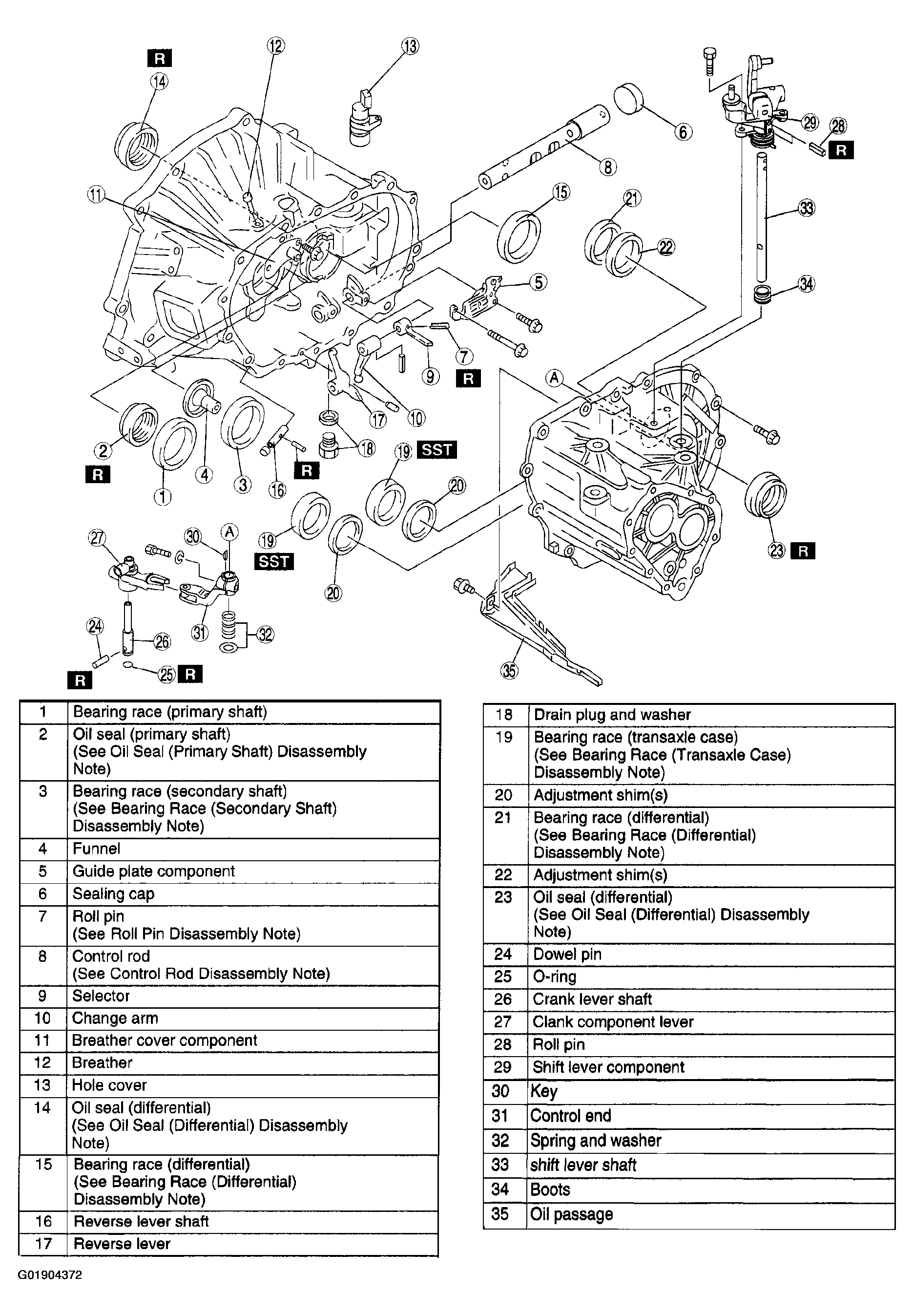

Fig 1: Disassembling Clutch Housing & Transaxle Case
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
