Clutch Housing And Transaxle Case Components Assembly: Notes

Assemble in the order shown in the figure.

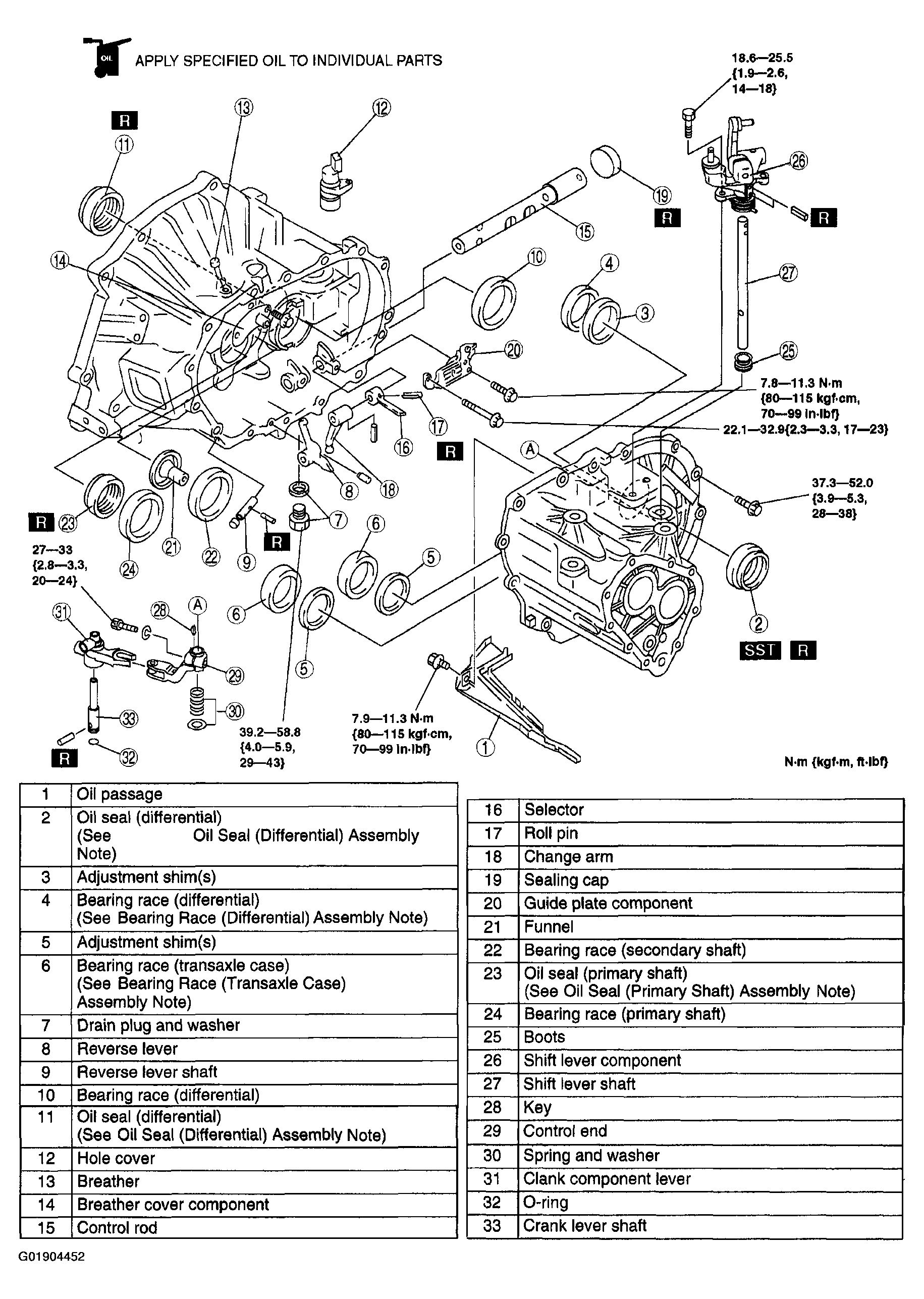

Fig 1: Assembling Clutch Housing & Transaxle Case

G01904452

Courtesy of MAZDA MOTORS CORP.
