Windshield Wiper And Washer Switch Connector End View

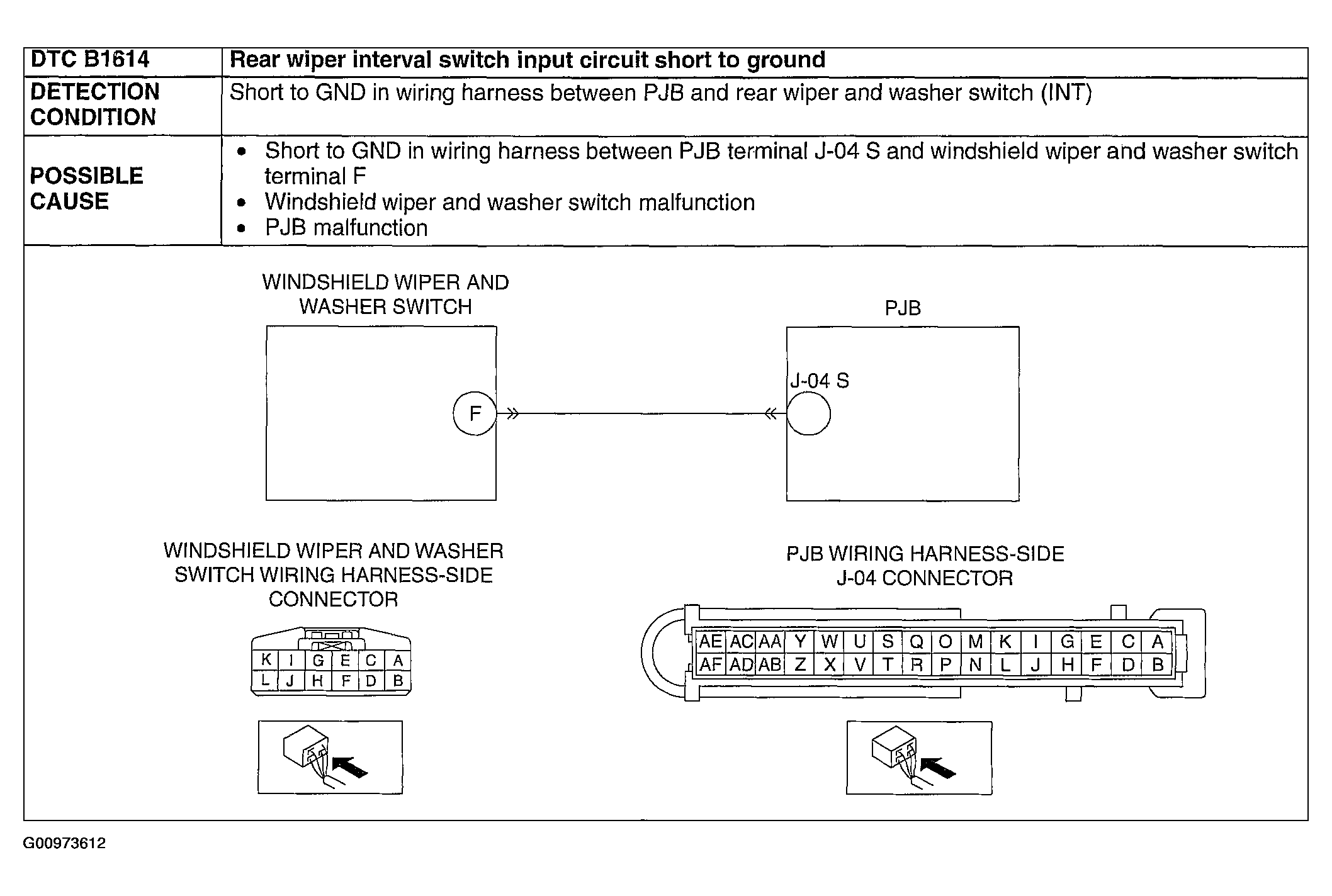

Fig 1: Windshield Wiper And Washer Switch Connector End View
G00973612Courtesy of MAZDA MOTORS CORP.

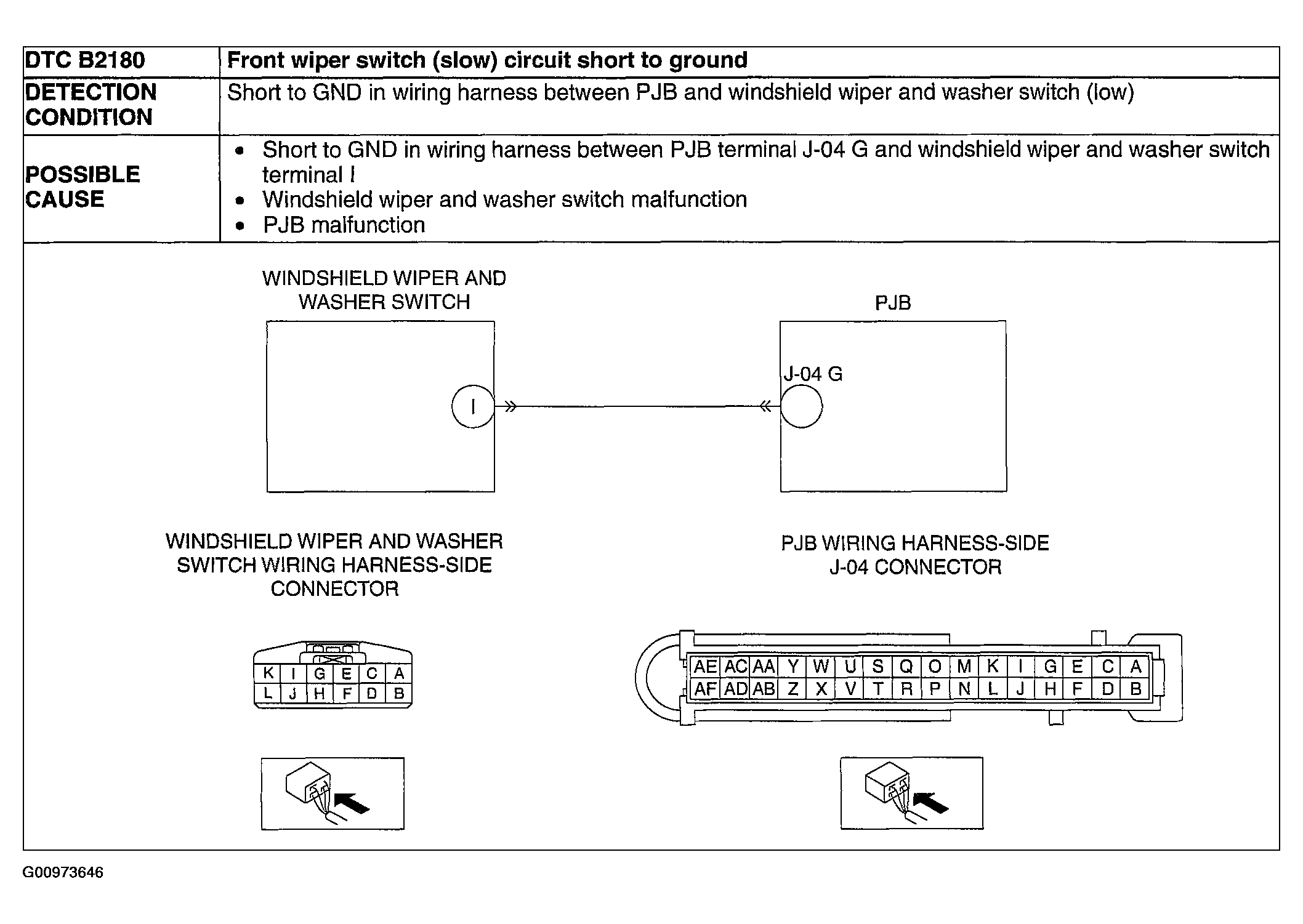

Fig 1: Windshield Wiper And Washer Switch Connector End View
G00973646Courtesy of MAZDA MOTORS CORP.
