Vehicle harness-side connector

The viewing direction of vehicle harness-side connectors is from the harness side.

* : Part names are shown only when there are multiple connector drawings.

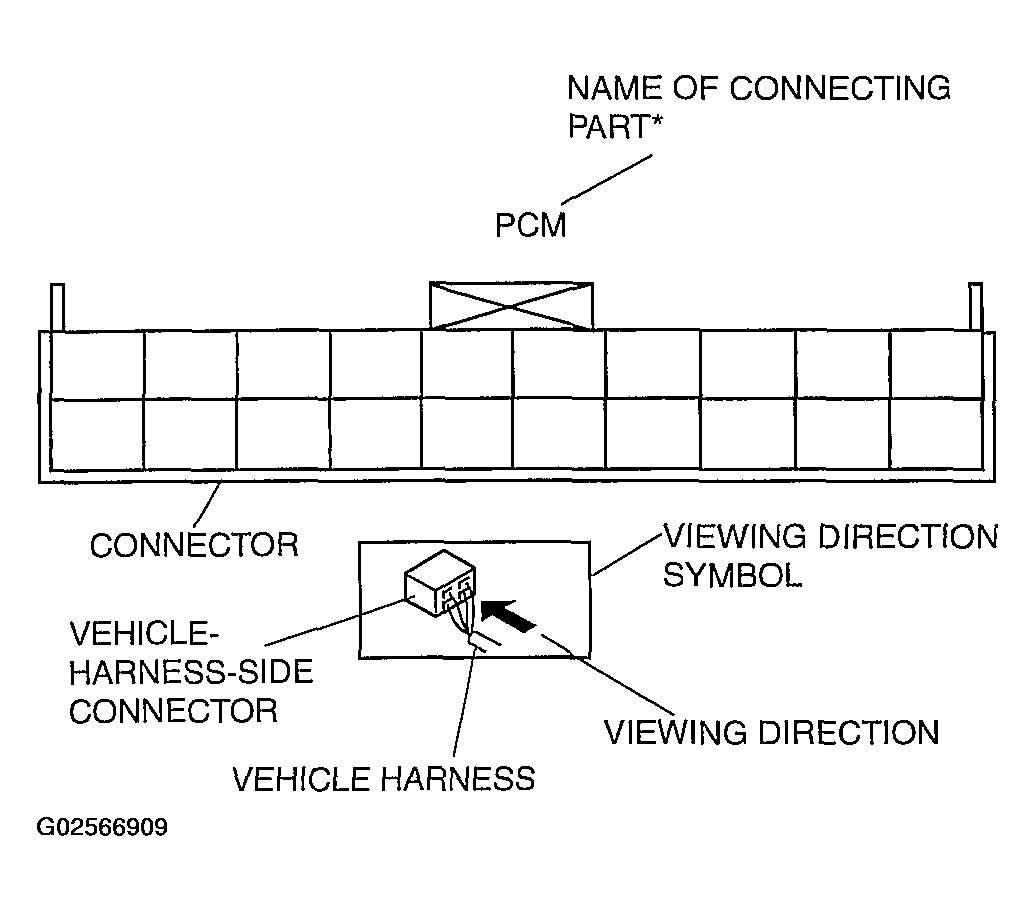

Fig 1: Identifying Viewing Direction Of Vehicle Harness-Side Connectors
G02566909Courtesy of MAZDA MOTORS CORP.
