On-Board Diagnostic [Engine Control System]
>>
DTC P2196: Front Ho2S Signal Stuck Rich
>>
Diagnostic procedure
Diagnostic procedure

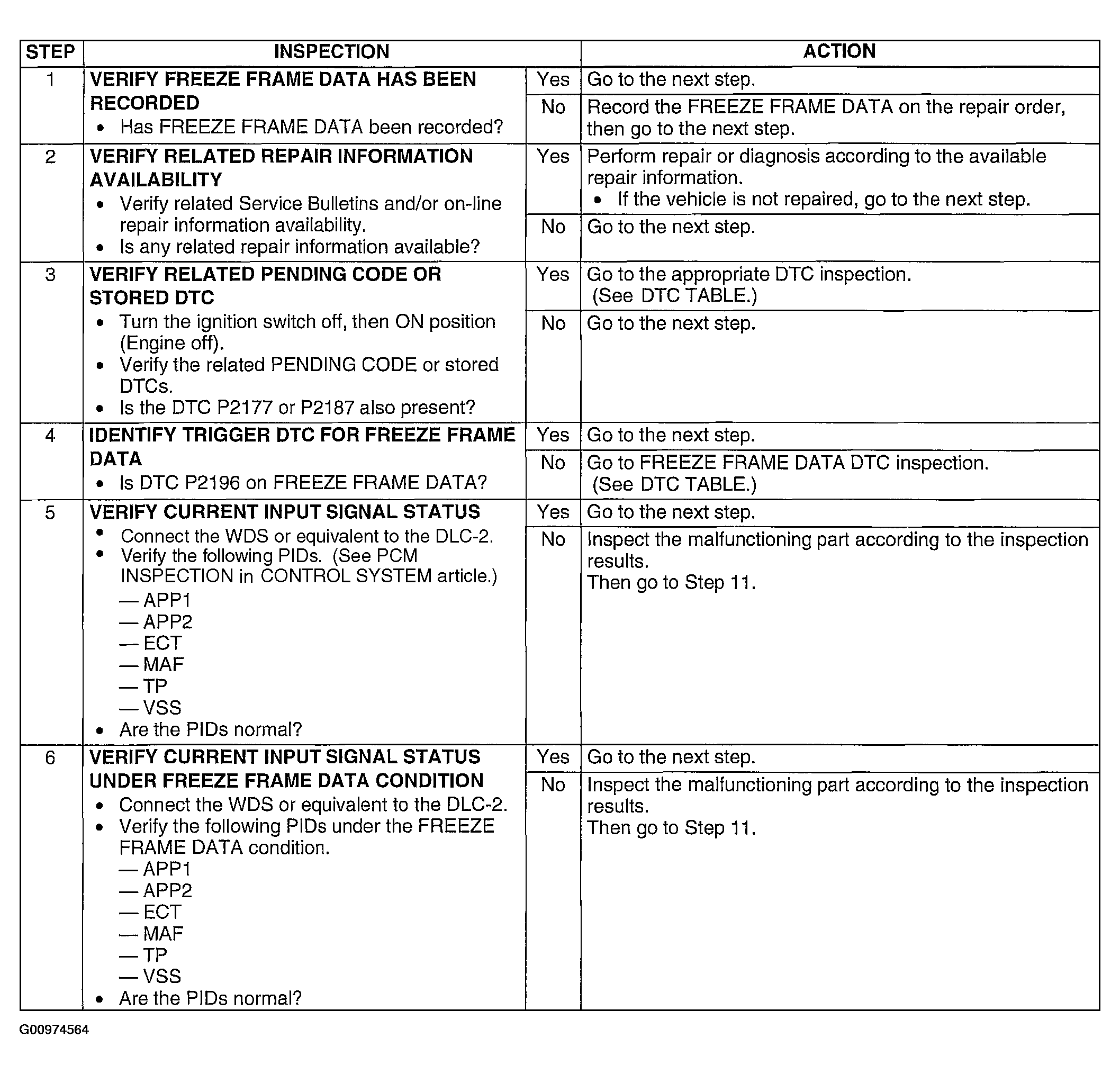

Fig 1: DTC P2196: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

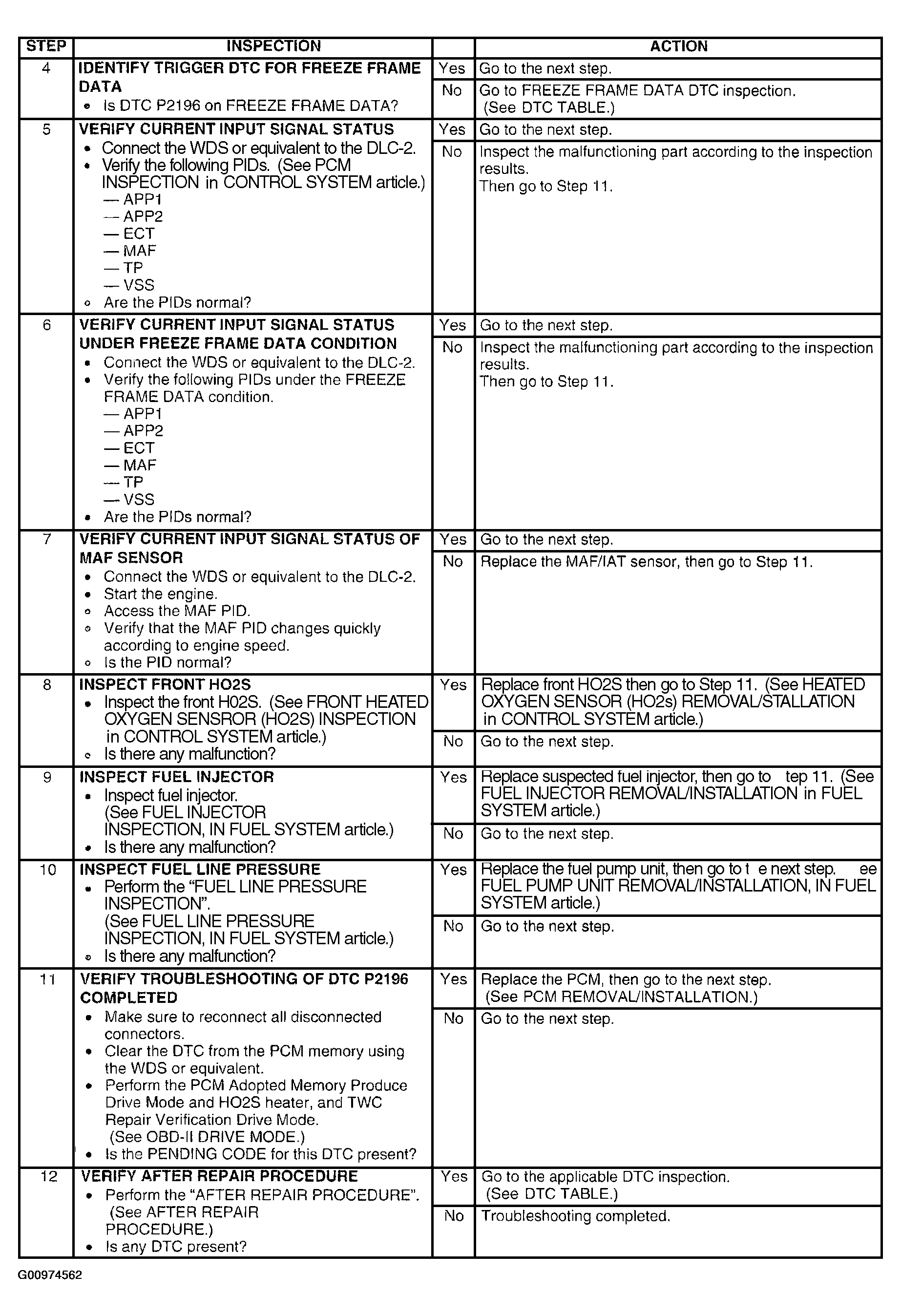

Fig 2: DTC P2196: Diagnostic Procedure Chart (Steps 4-12)
Courtesy of MAZDA MOTORS CORP.

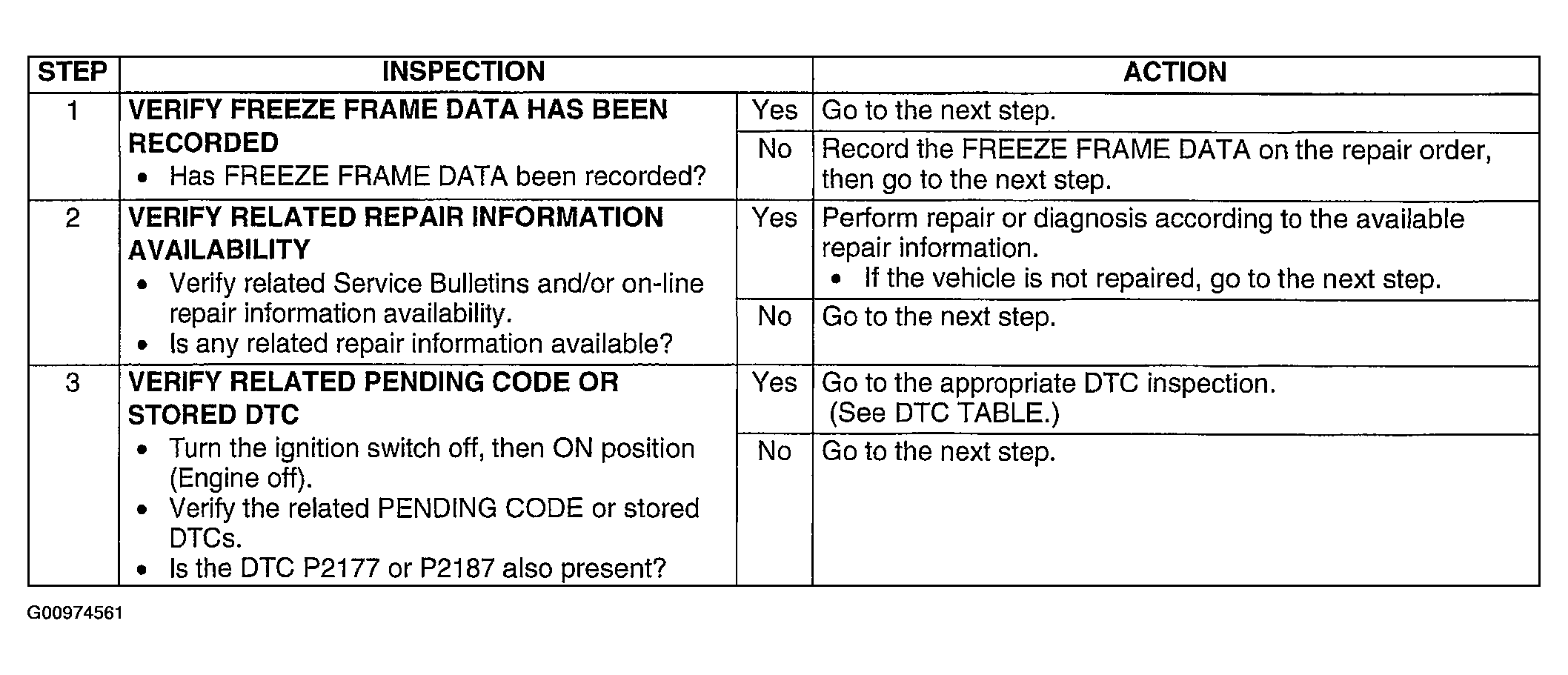

Fig 1: DTC P2196: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

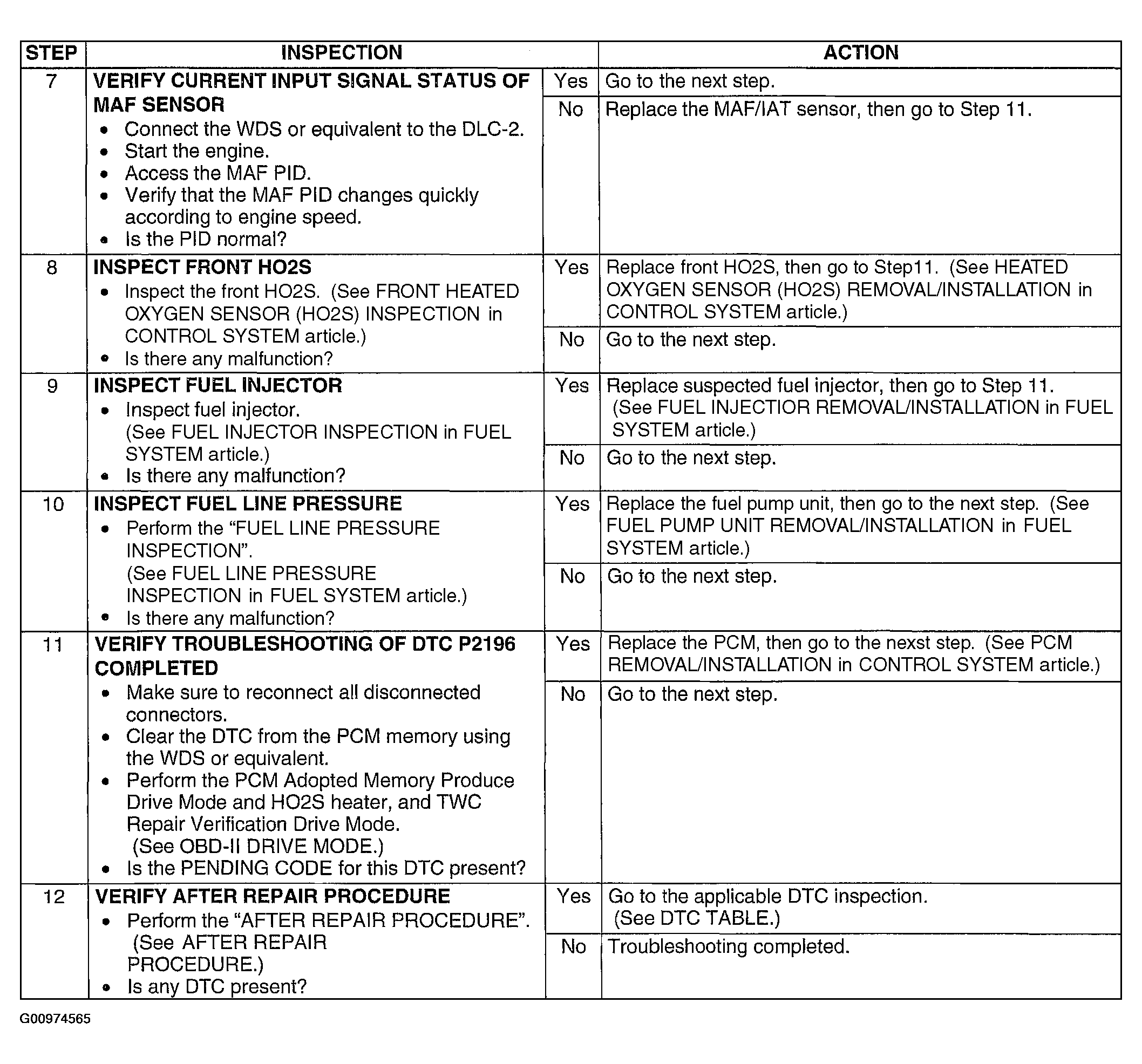

Fig 2: DTC P2196: Diagnostic Procedure Chart (Steps 7-12)
Courtesy of MAZDA MOTORS CORP.
