DTC P2195: Front Ho2S Signal Stuck Lean
>>
Diagnostic procedure
Diagnostic procedure

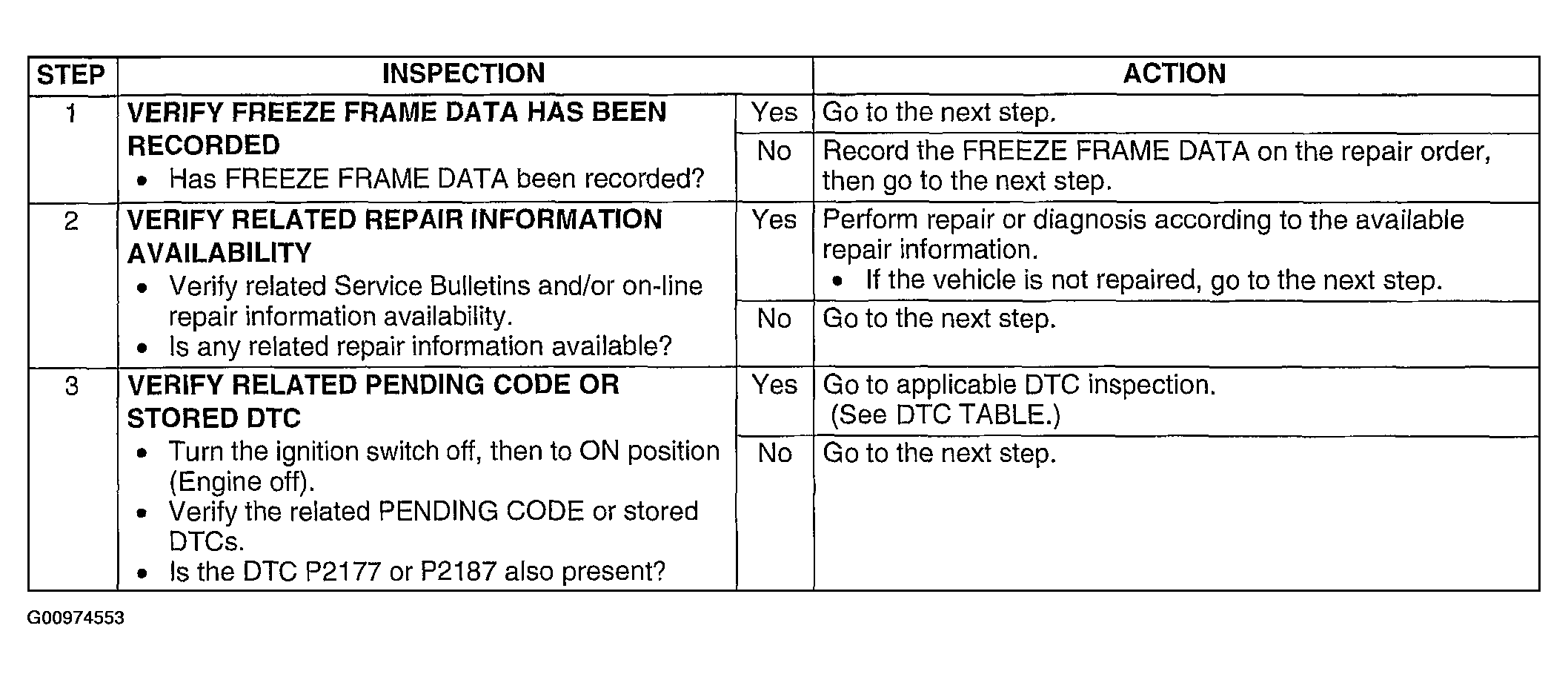

Fig 1: DTC P2195: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

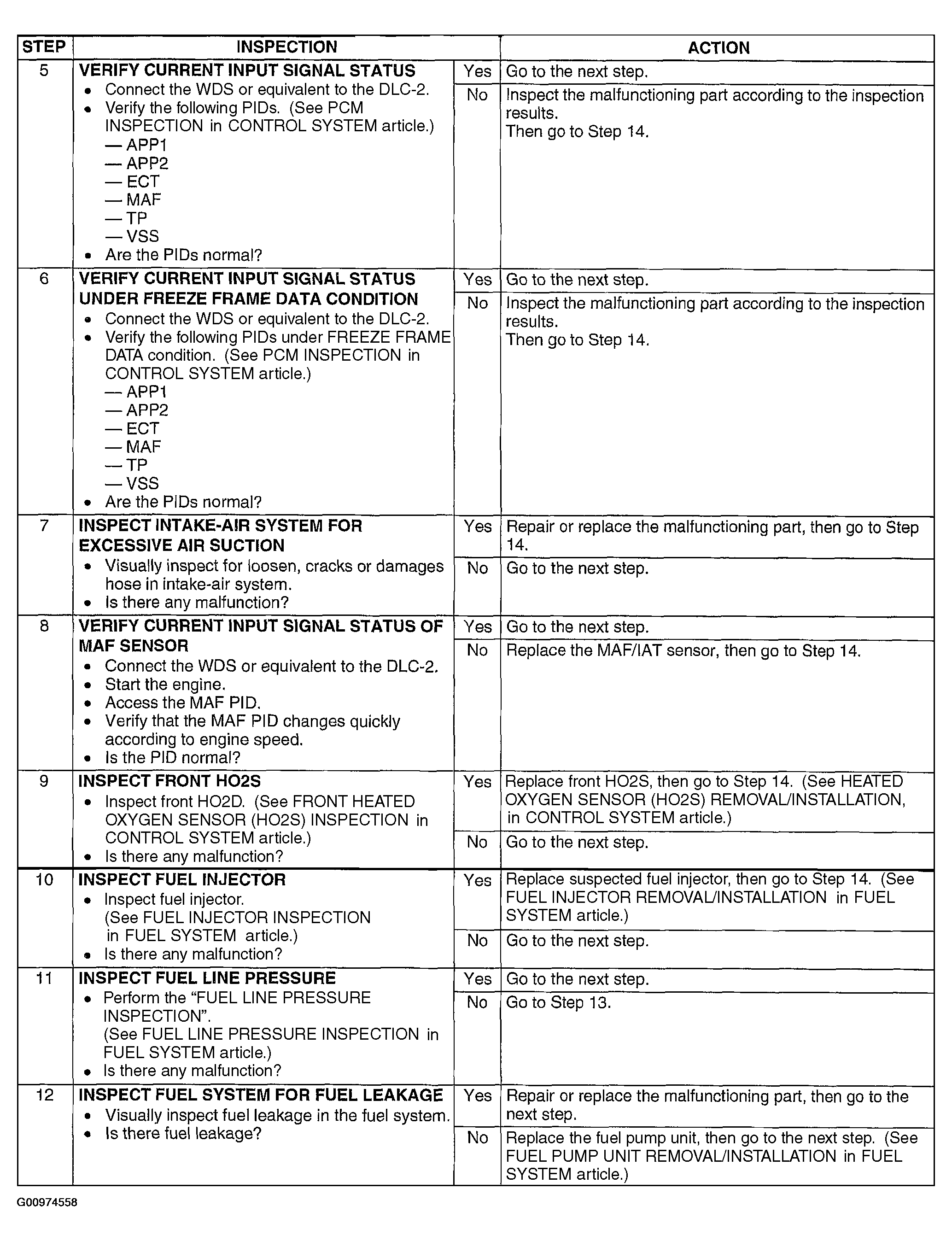

Fig 2: DTC P2195: Diagnostic Procedure Chart (Steps 4-12)
Courtesy of MAZDA MOTORS CORP.

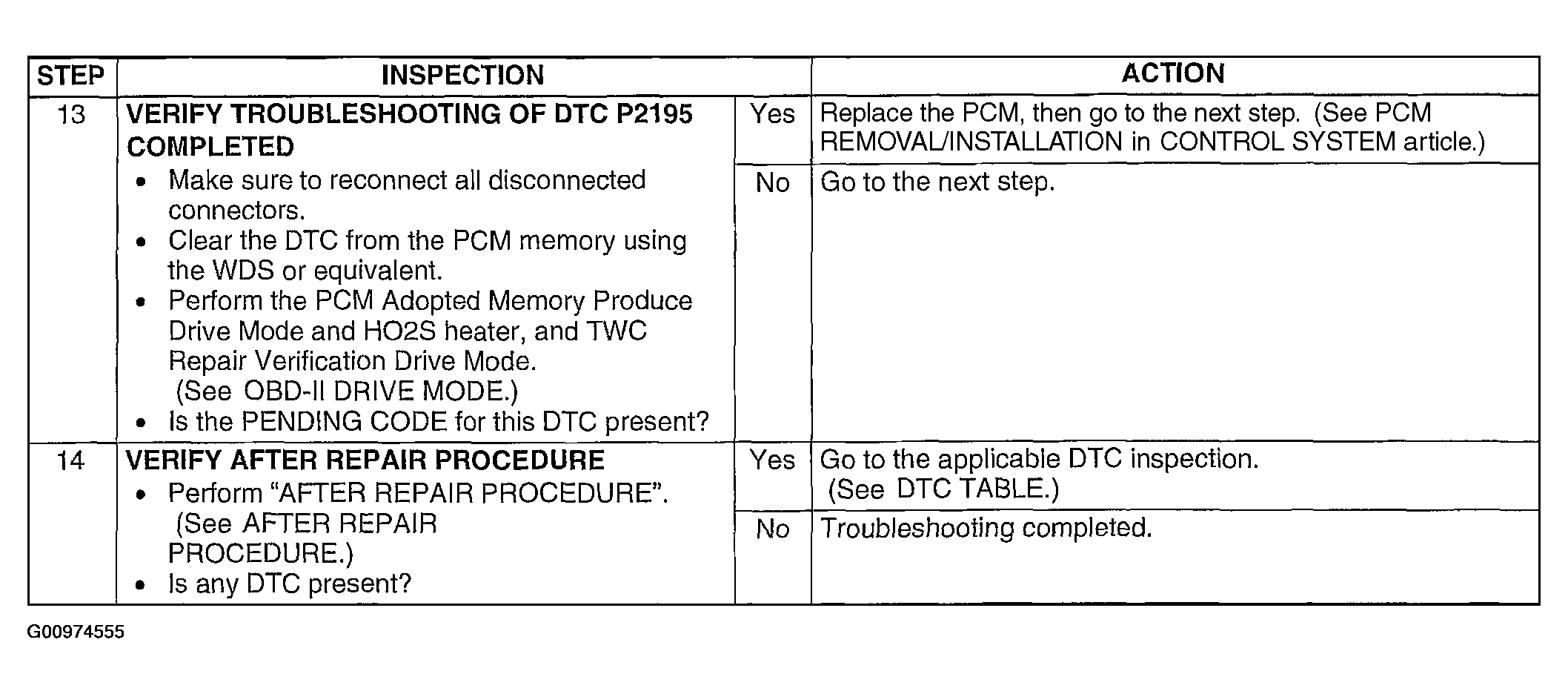

Fig 3: DTC P2195: Diagnostic Procedure Chart (Steps 13 & 14)
Courtesy of MAZDA MOTORS CORP.

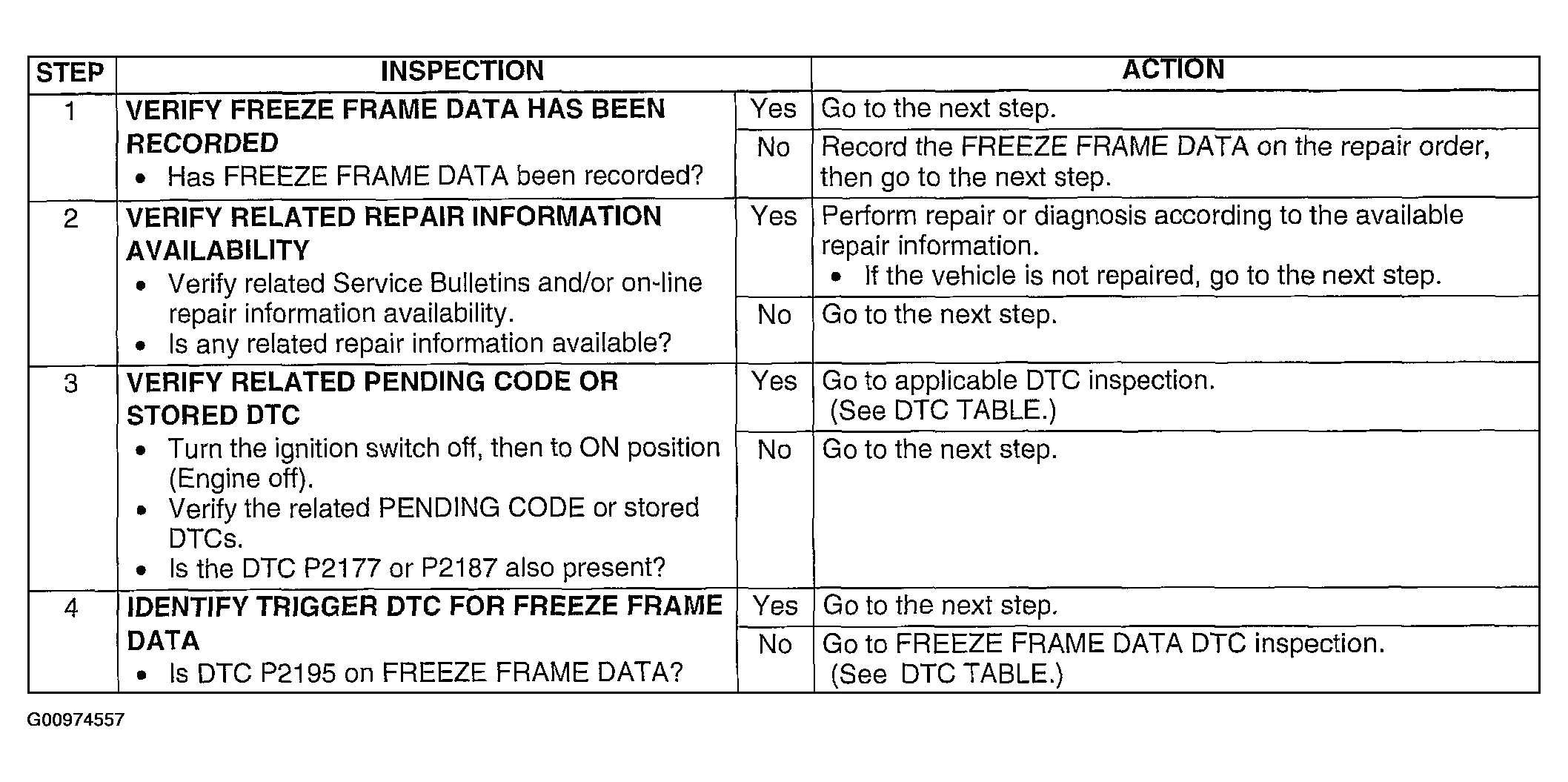

Fig 1: DTC P2195: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Fig 2: DTC P2195: Diagnostic Procedure Chart (Steps 5-12)
Courtesy of MAZDA MOTORS CORP.

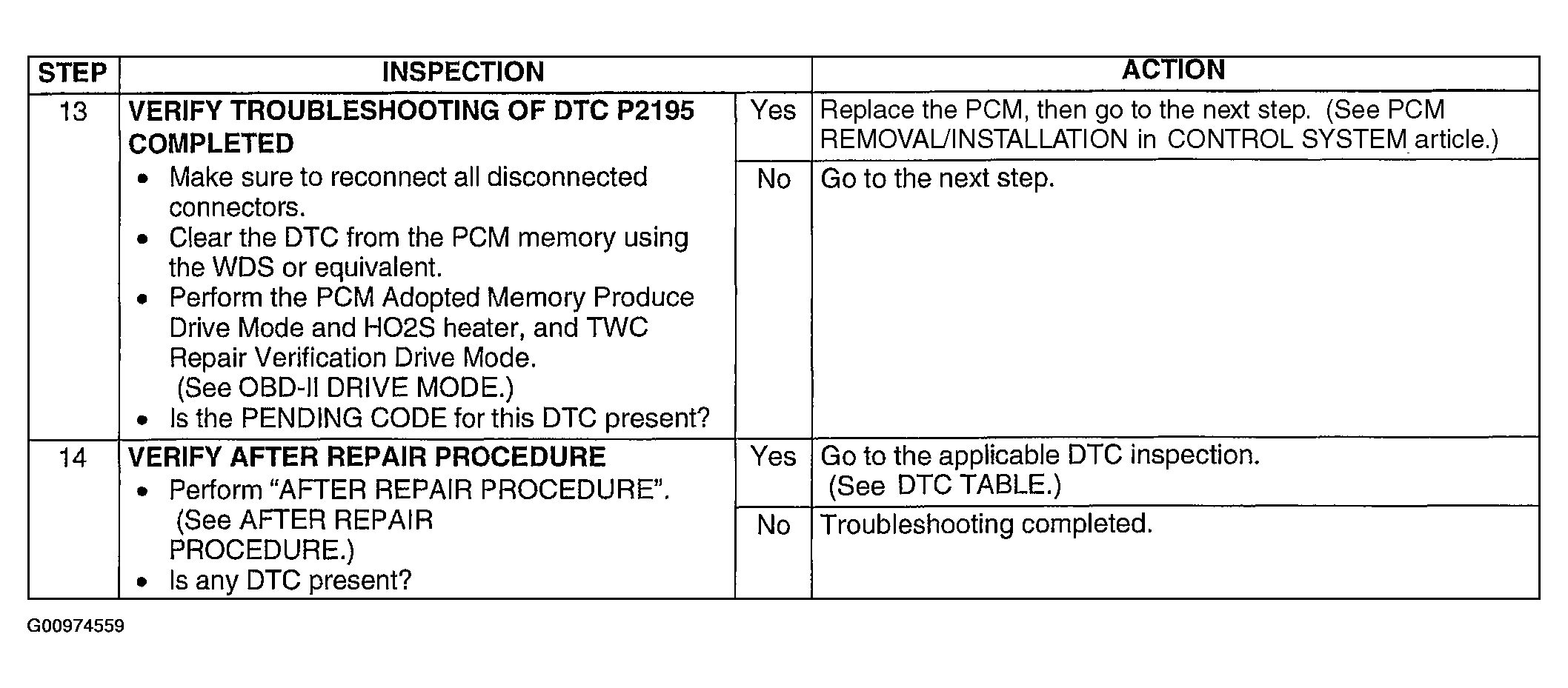

Fig 3: DTC P2195: Diagnostic Procedure Chart (Steps 13 & 14)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
