DTC P2187: Fuel System Too Lean At Idle
>>
Diagnostic procedure
Diagnostic procedure
Fig 1: DTC P2187: Diagnostic Procedure Chart (Steps 1-10)
Courtesy of MAZDA MOTORS CORP.

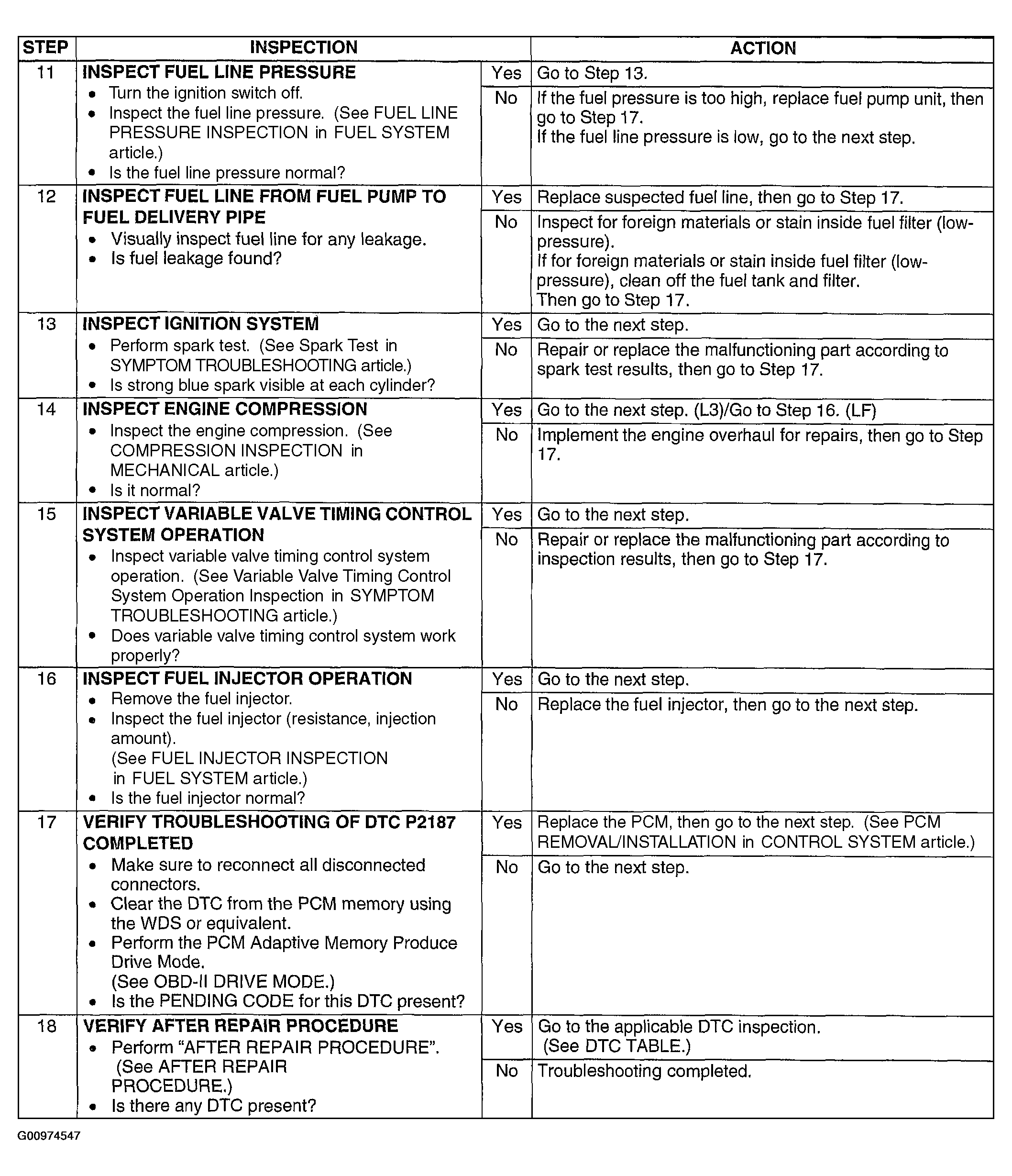

Fig 2: DTC P2187: Diagnostic Procedure Chart (Steps 11-18)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
