Diagnostic procedure

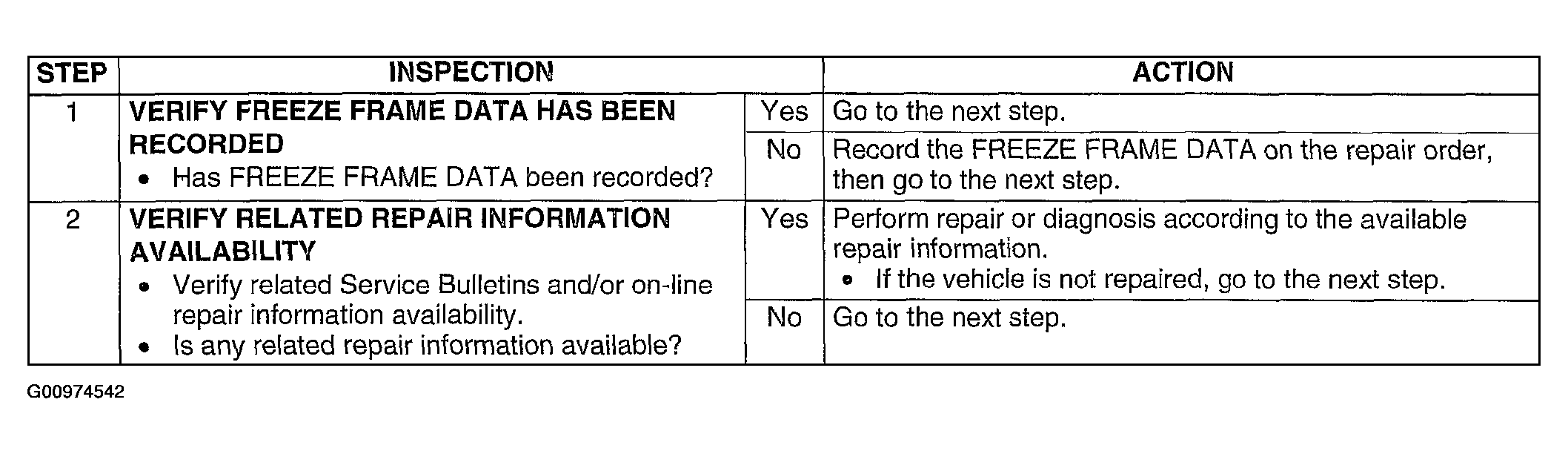

Fig 1: DTC P2178: Diagnostic Procedure Chart (Steps 1 & 2)
G00974542Courtesy of MAZDA MOTORS CORP.

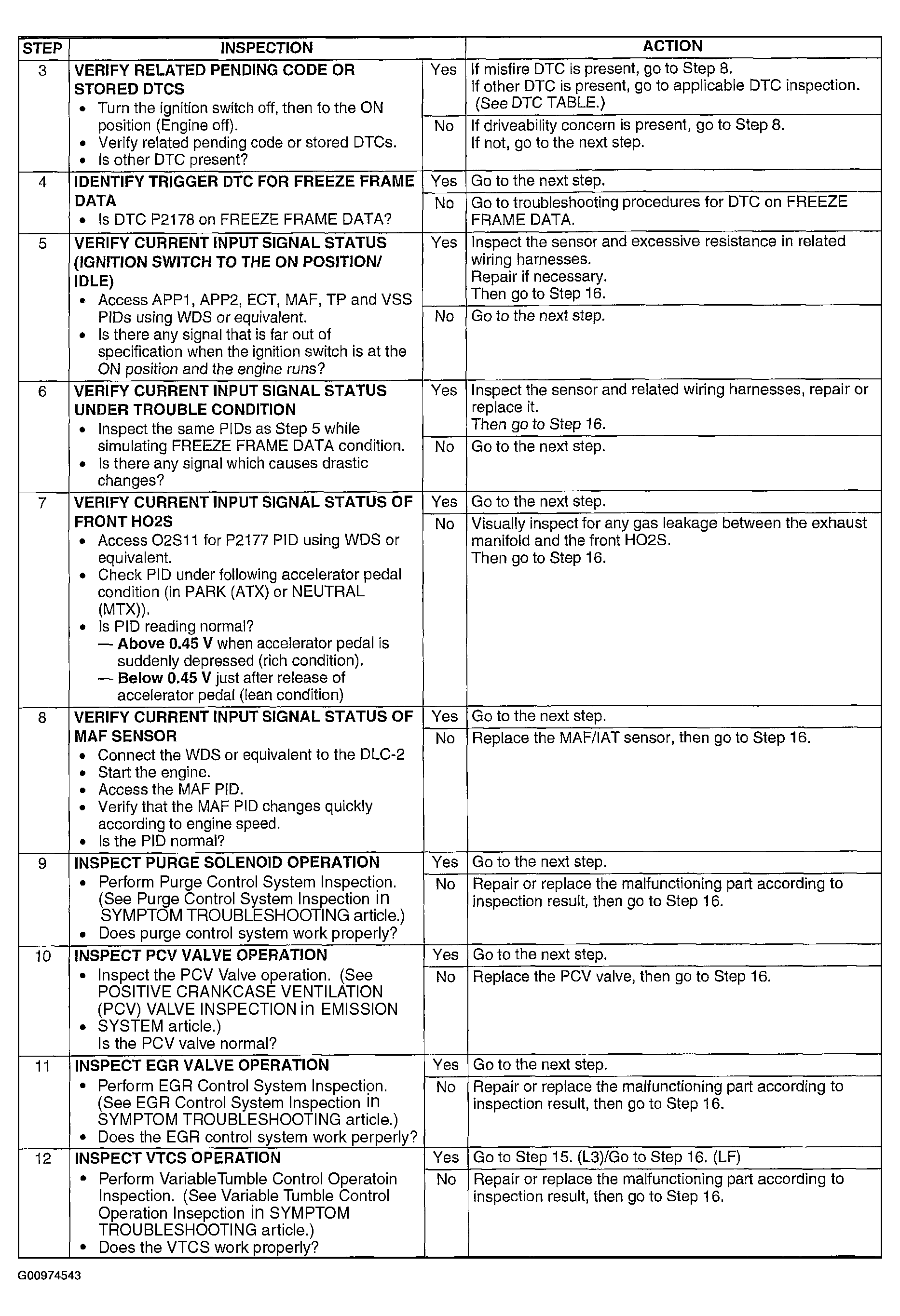

Fig 2: DTC P2178: Diagnostic Procedure Chart (Steps 3-12)
G00974543Courtesy of MAZDA MOTORS CORP.

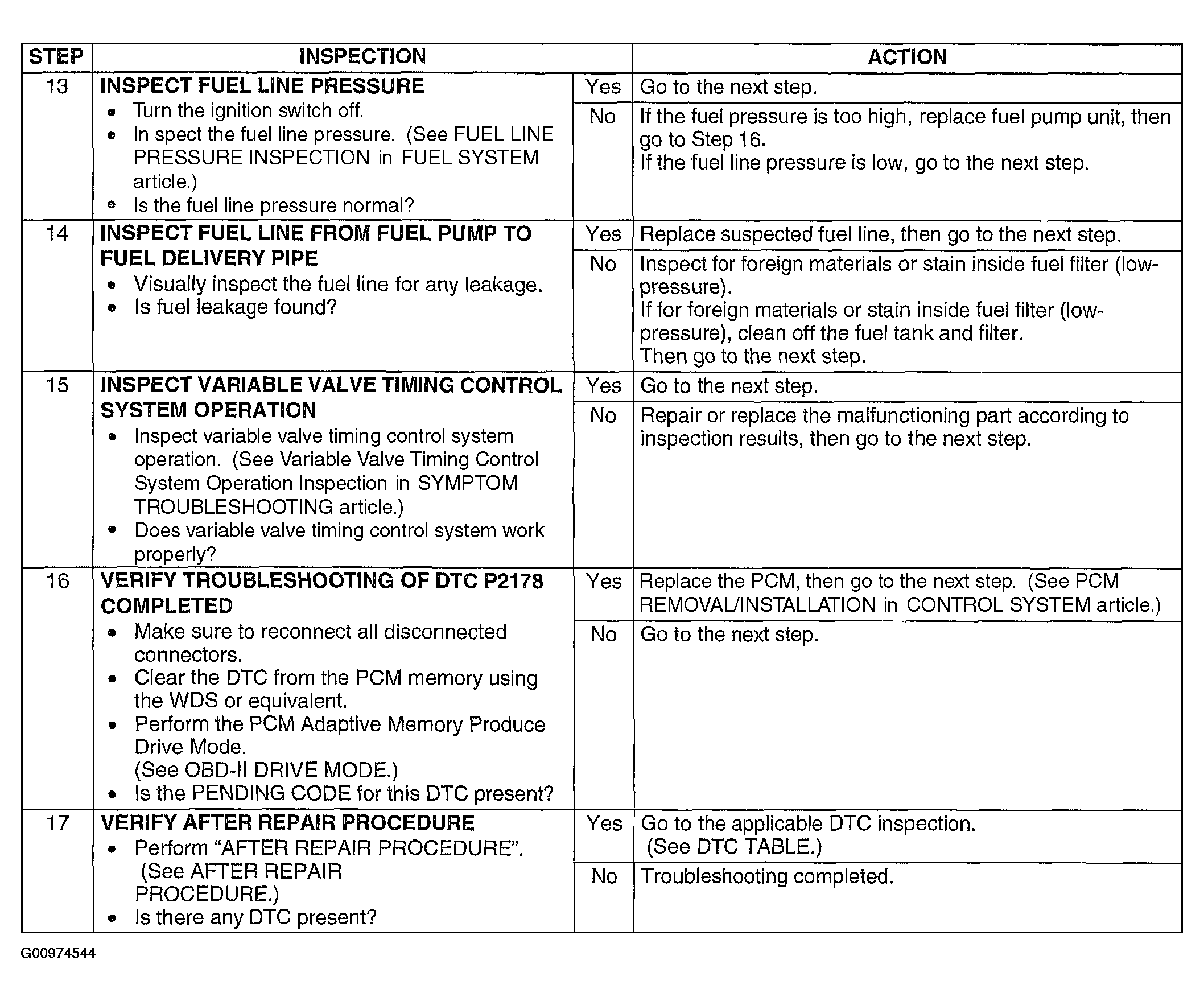

Fig 3: DTC P2178: Diagnostic Procedure Chart (Steps 13-17)
G00974544Courtesy of MAZDA MOTORS CORP.
