Diagnostic procedure

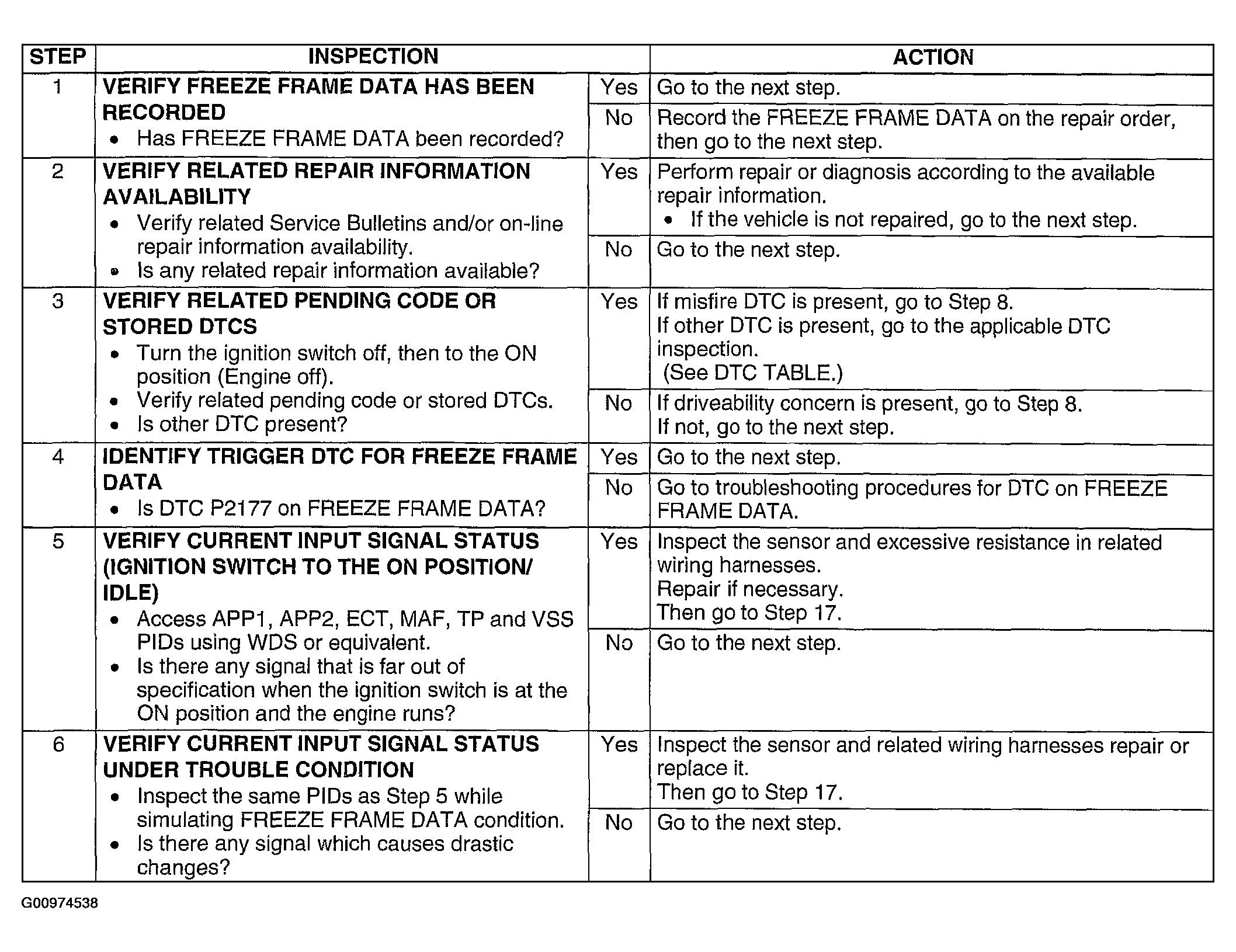

Fig 1: DTC P2177: Diagnostic Procedure Chart (Steps 1-6)
G00974538Courtesy of MAZDA MOTORS CORP.

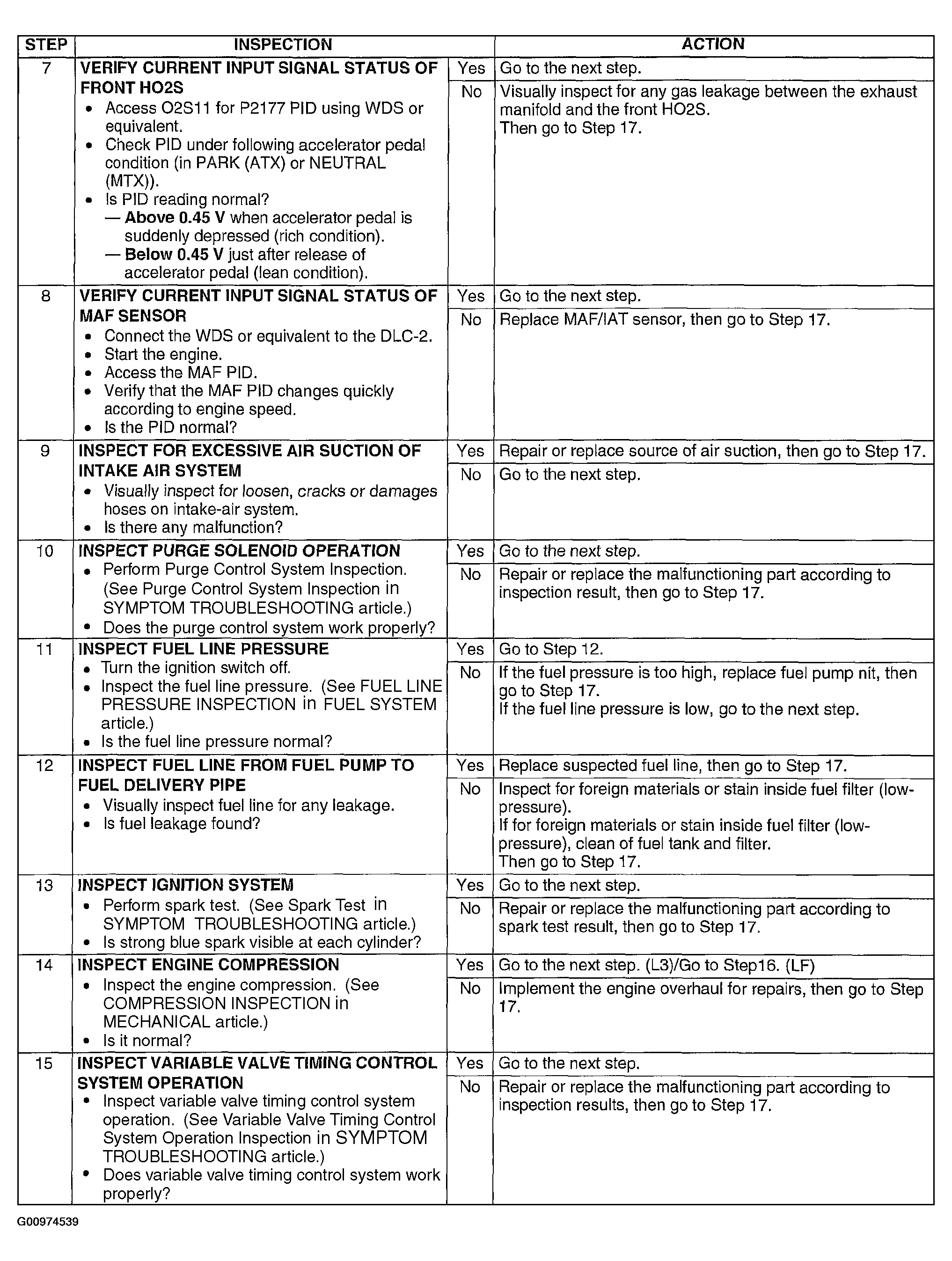

Fig 2: DTC P2177: Diagnostic Procedure Chart (Steps 7-15)
G00974539Courtesy of MAZDA MOTORS CORP.

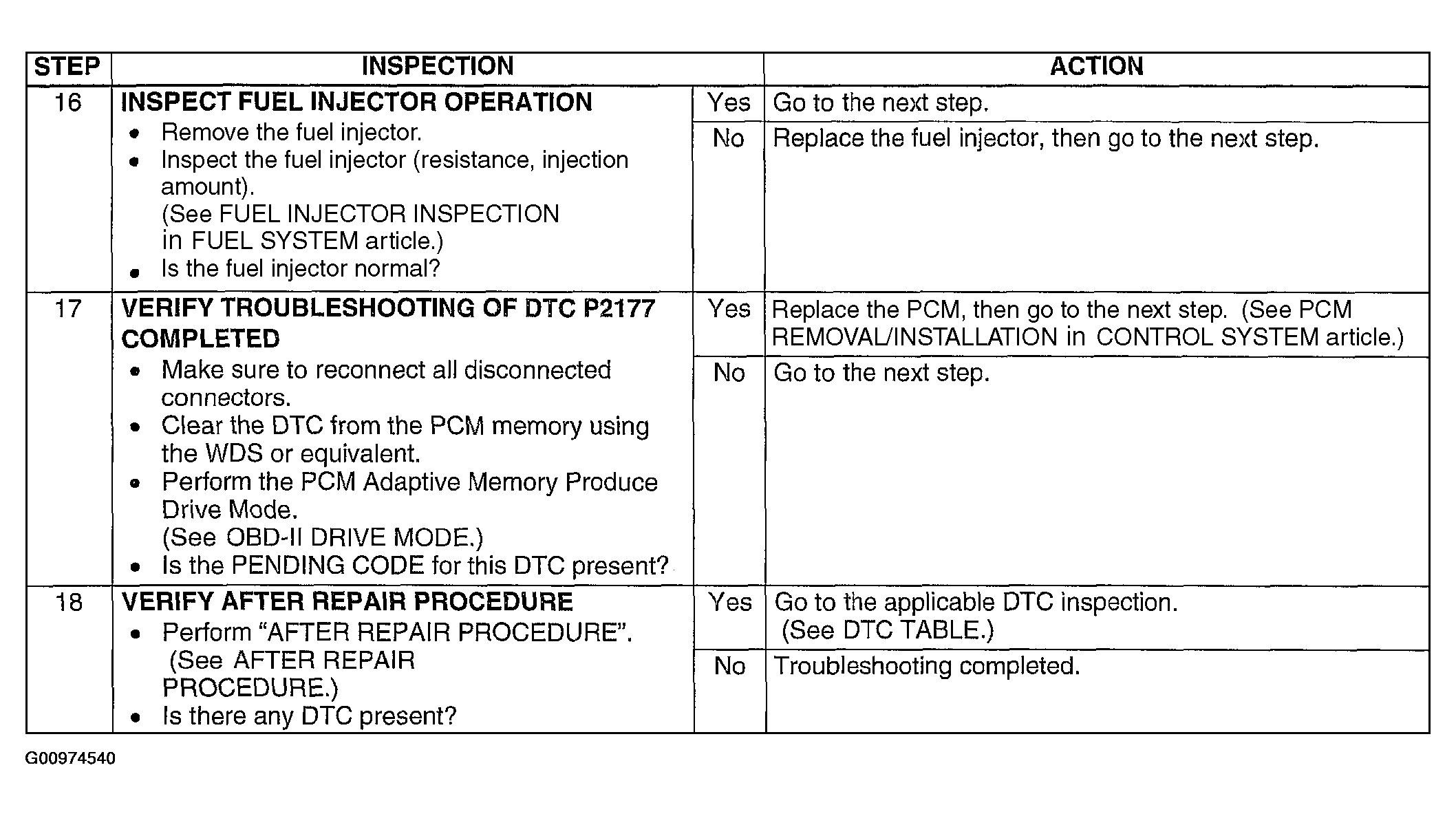

Fig 3: DTC P2177: Diagnostic Procedure Chart (Steps 16-18)
G00974540Courtesy of MAZDA MOTORS CORP.
