Diagnostic procedure

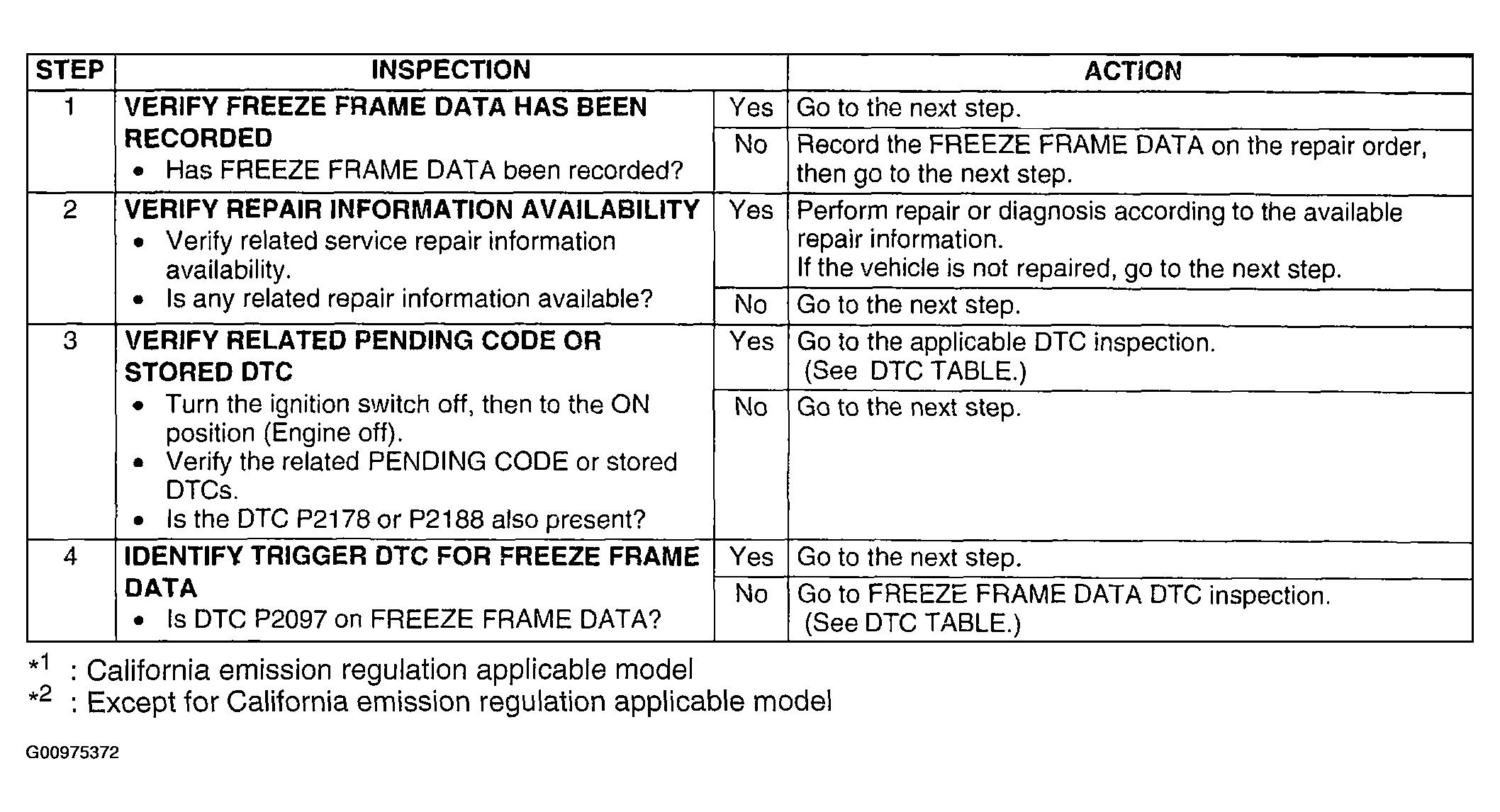

Fig 1: DTC P2097: Diagnostic Procedure Chart (Steps 1-4)
G00975372Courtesy of MAZDA MOTORS CORP.

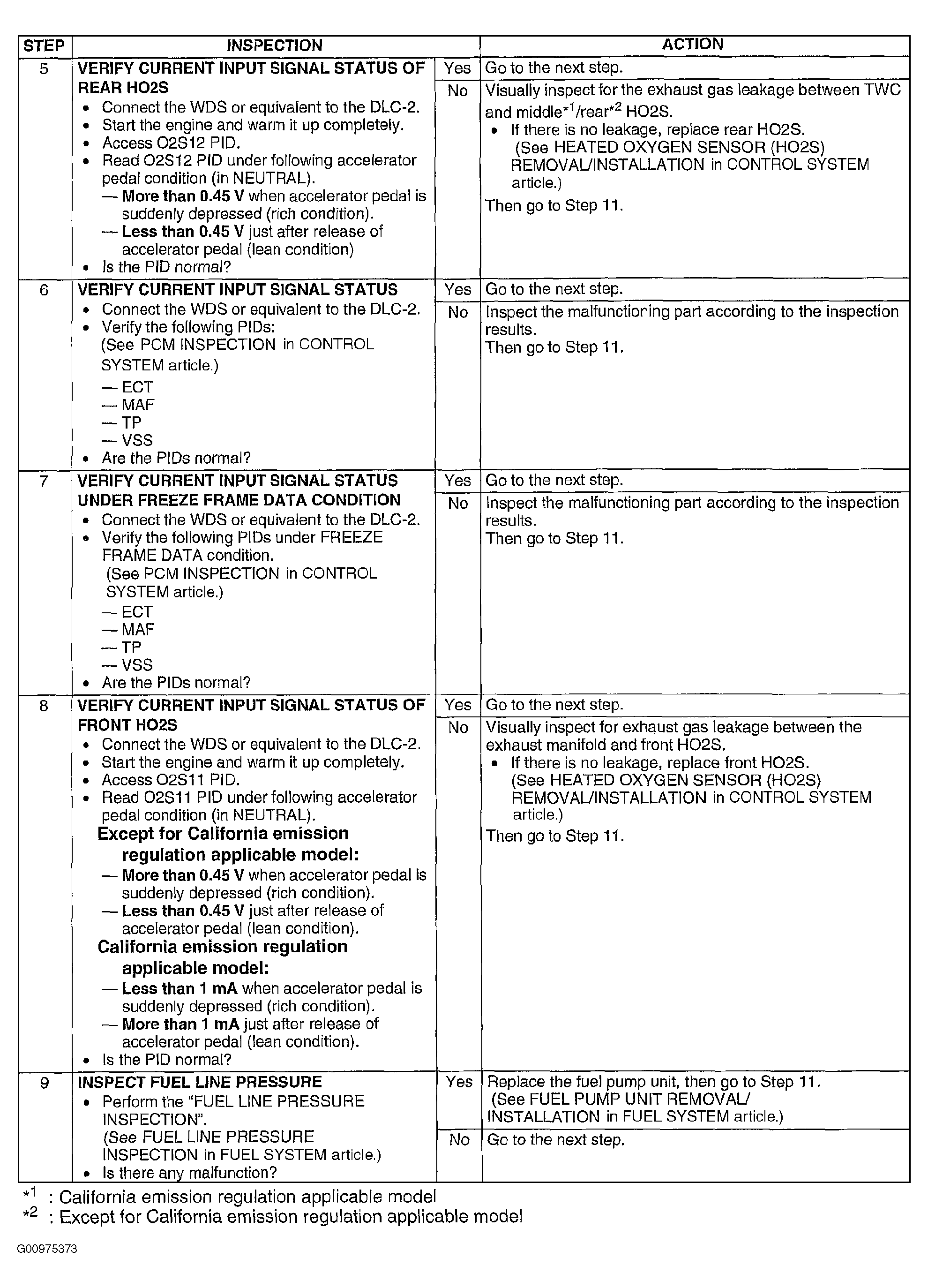

Fig 2: DTC P2097: Diagnostic Procedure Chart (Steps 5-9)
G00975373Courtesy of MAZDA MOTORS CORP.

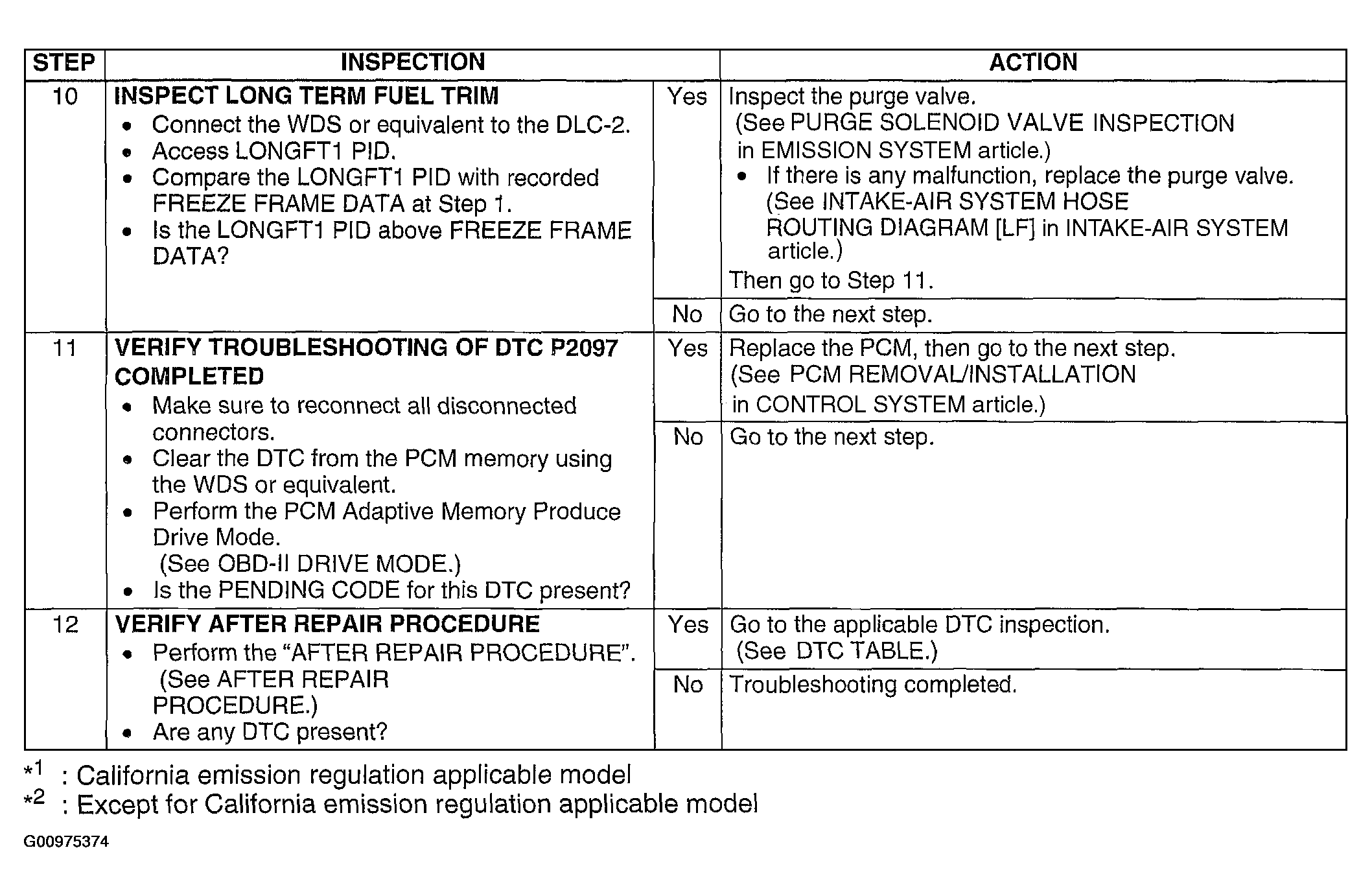

Fig 3: DTC P2097: Diagnostic Procedure Chart (Steps 10-12)
G00975374Courtesy of MAZDA MOTORS CORP.
