DTC P2088: Oil Control Valve Circuit Low
>>
Diagnostic procedure
Diagnostic procedure

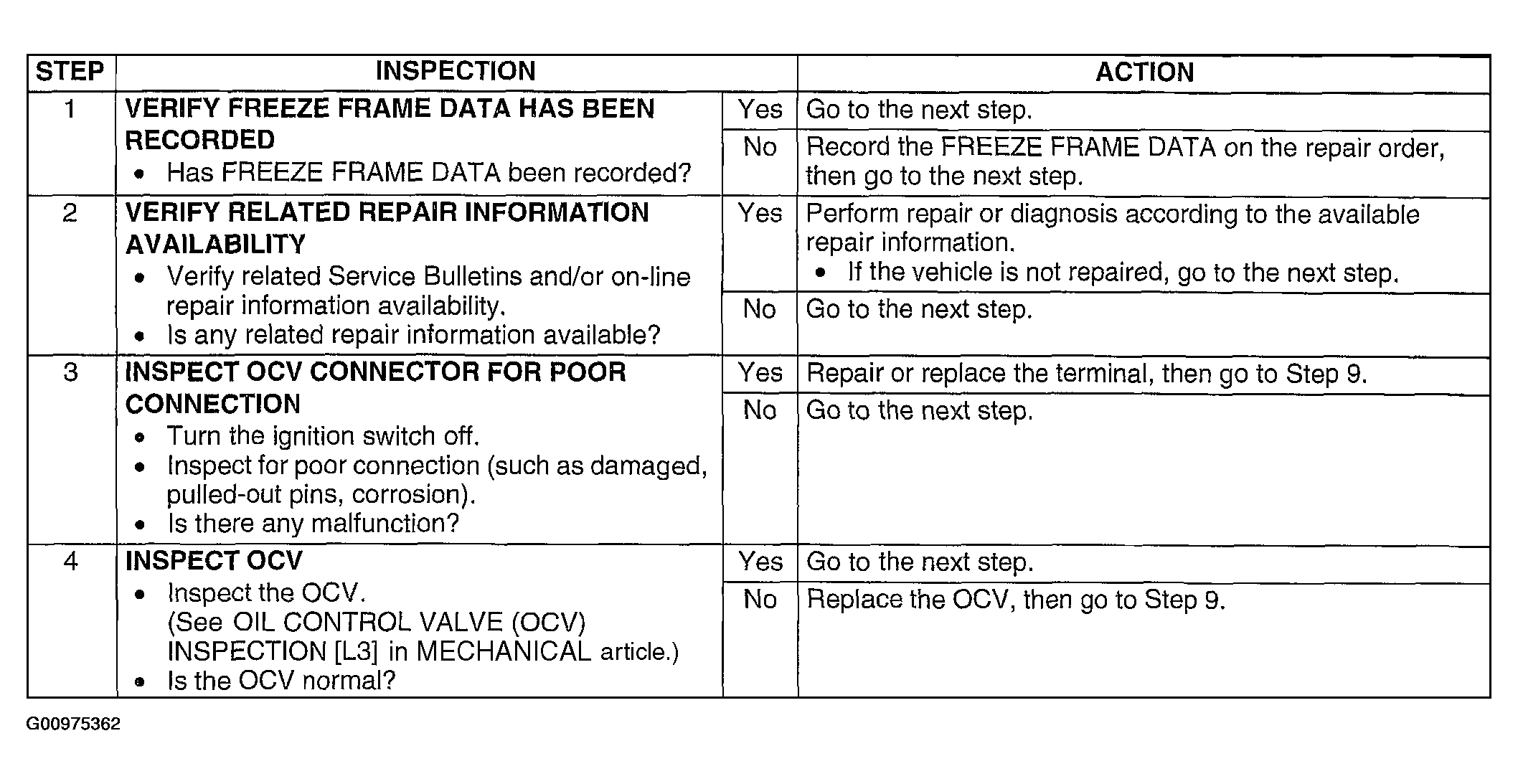

Fig 1: DTC P2088: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

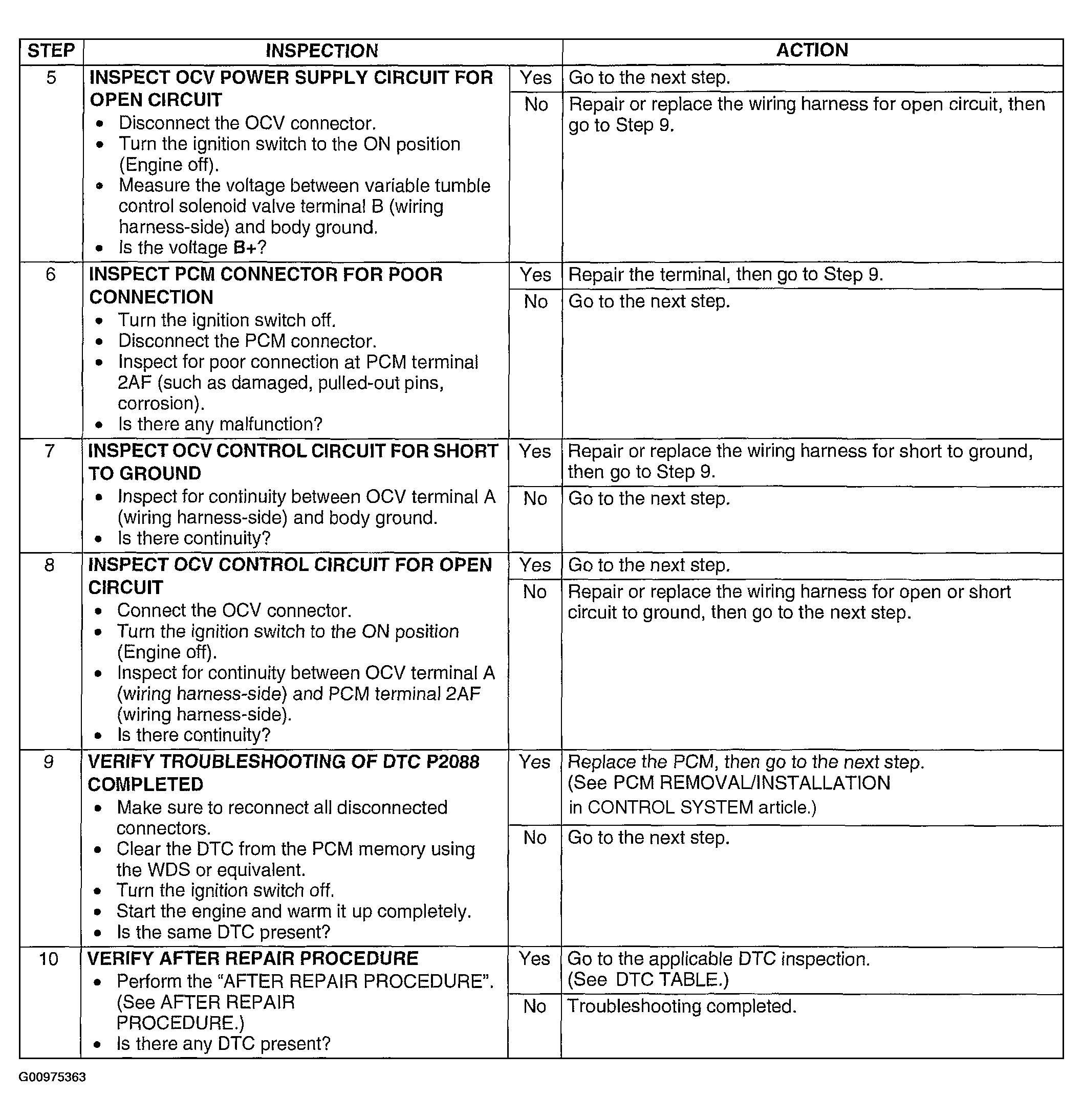

Fig 2: DTC P2088: Diagnostic Procedure Chart (Steps 5-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
