Diagnostic procedure

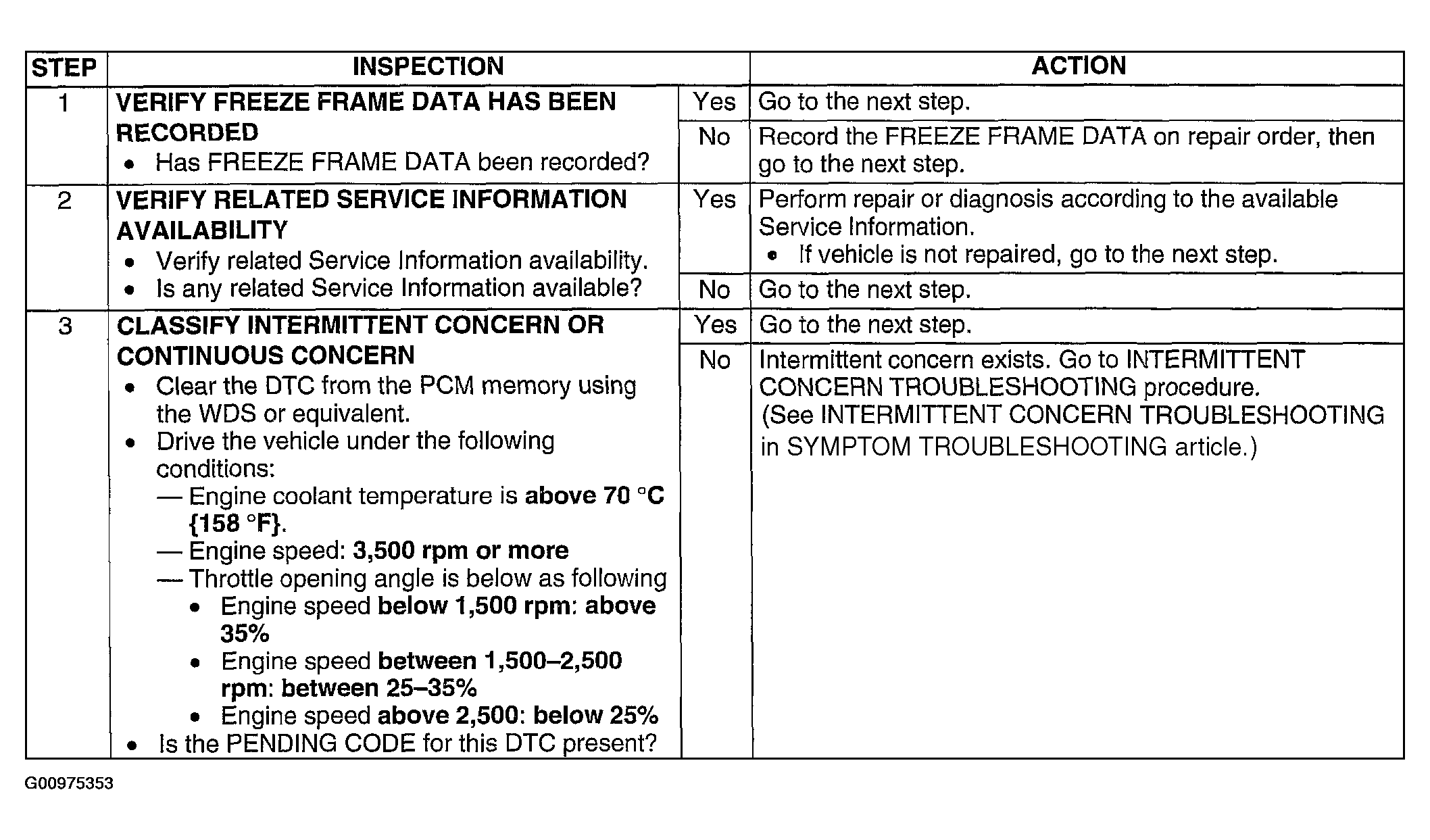

Fig 1: DTC P2006: Diagnostic Procedure Chart (Steps 1-3)

G00975353

Courtesy of MAZDA MOTORS CORP.

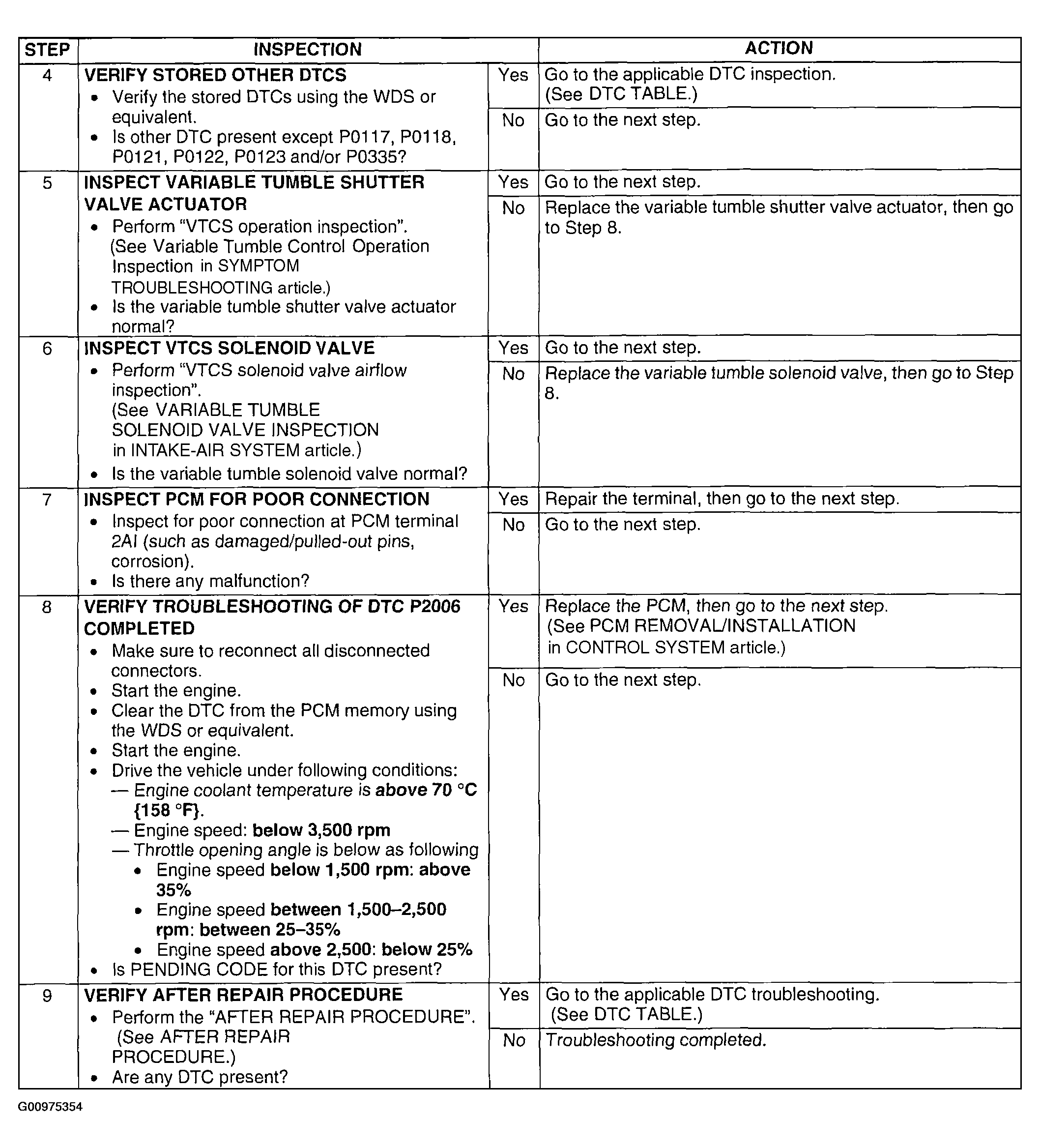

Fig 2: DTC P2006: Diagnostic Procedure Chart (Steps 4-9)

G00975354

Courtesy of MAZDA MOTORS CORP.
