Diagnostic procedure

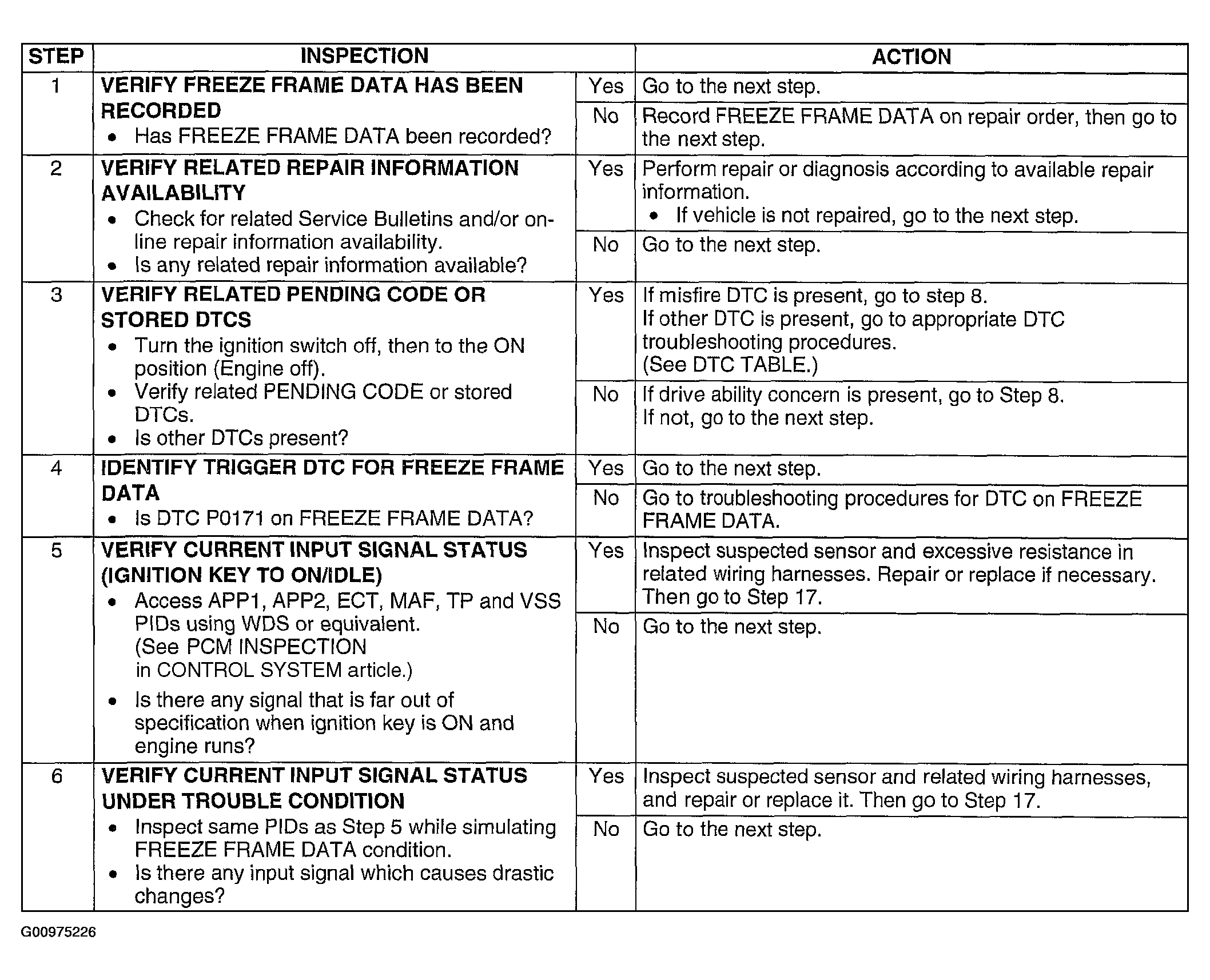

Fig 1: DTC P0171: Diagnostic Procedure Chart (Steps 1-6)
G00975226Courtesy of MAZDA MOTORS CORP.

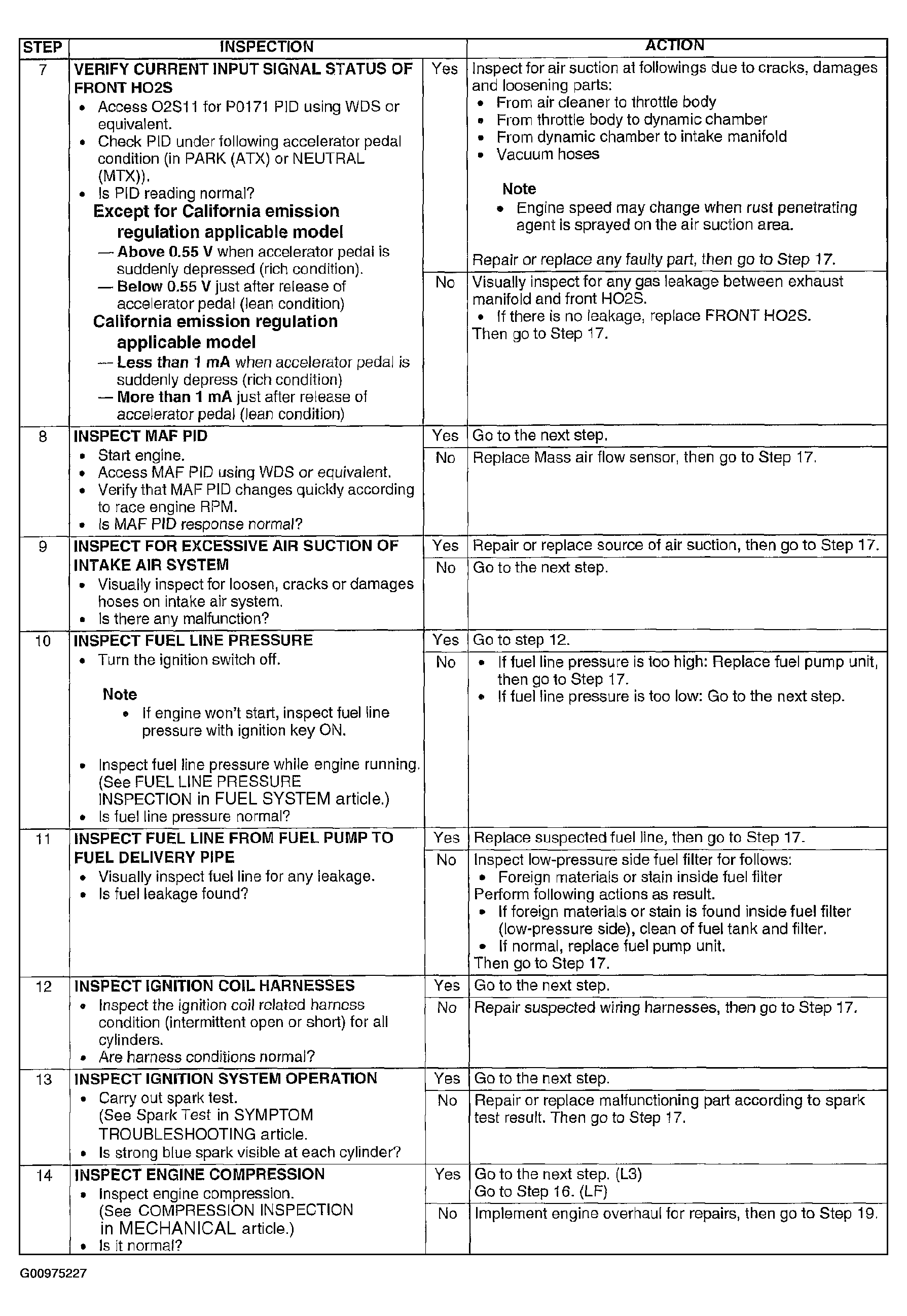

Fig 2: DTC P0171: Diagnostic Procedure Chart (Steps 7-14)
G00975227Courtesy of MAZDA MOTORS CORP.

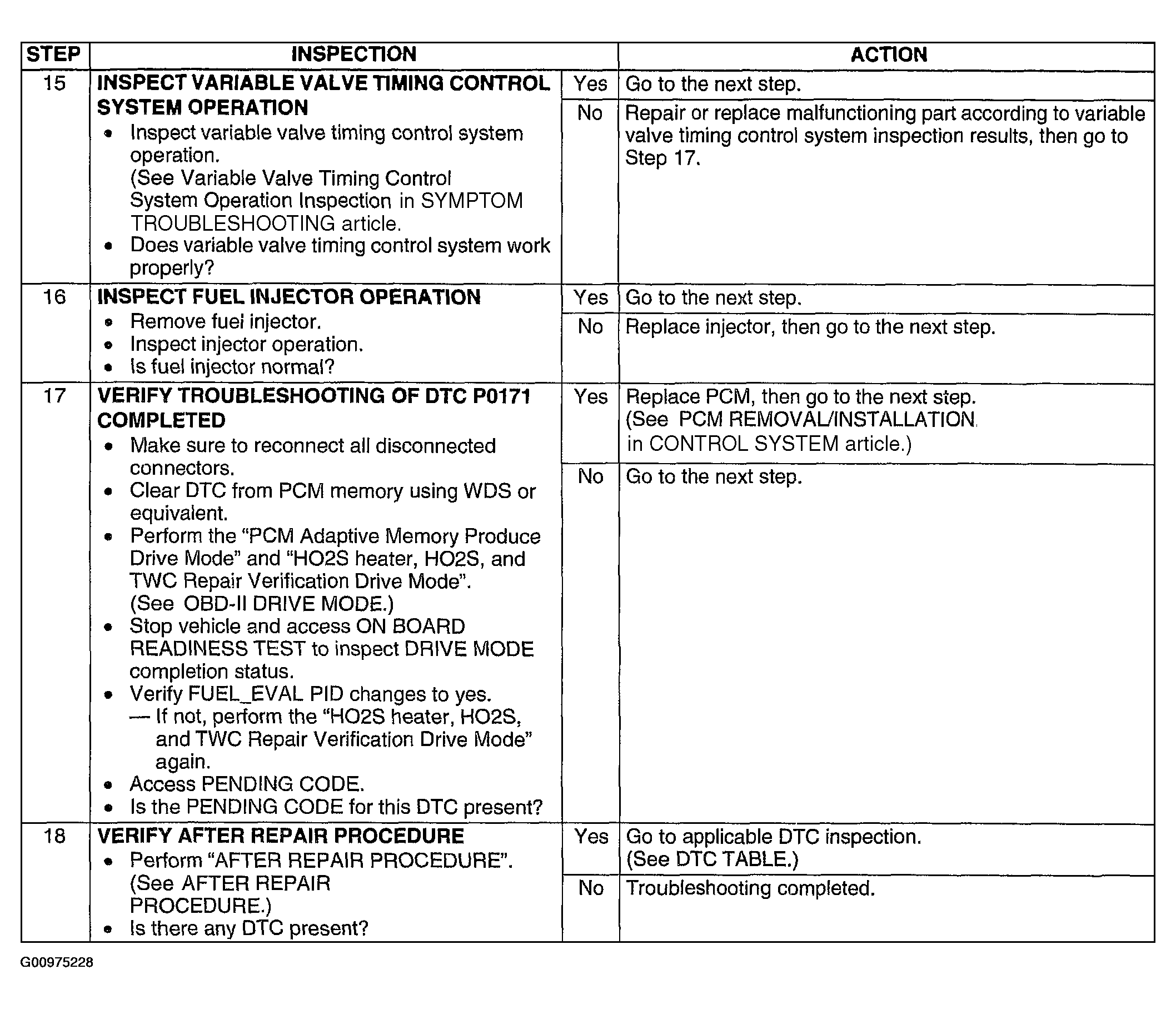

Fig 3: DTC P0171: Diagnostic Procedure Chart (Steps 15-18)
G00975228Courtesy of MAZDA MOTORS CORP.
