3 i, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System]
>>
DTC P0016: CKP-CMP Correlation
>>
Diagnostic procedure
Diagnostic procedure

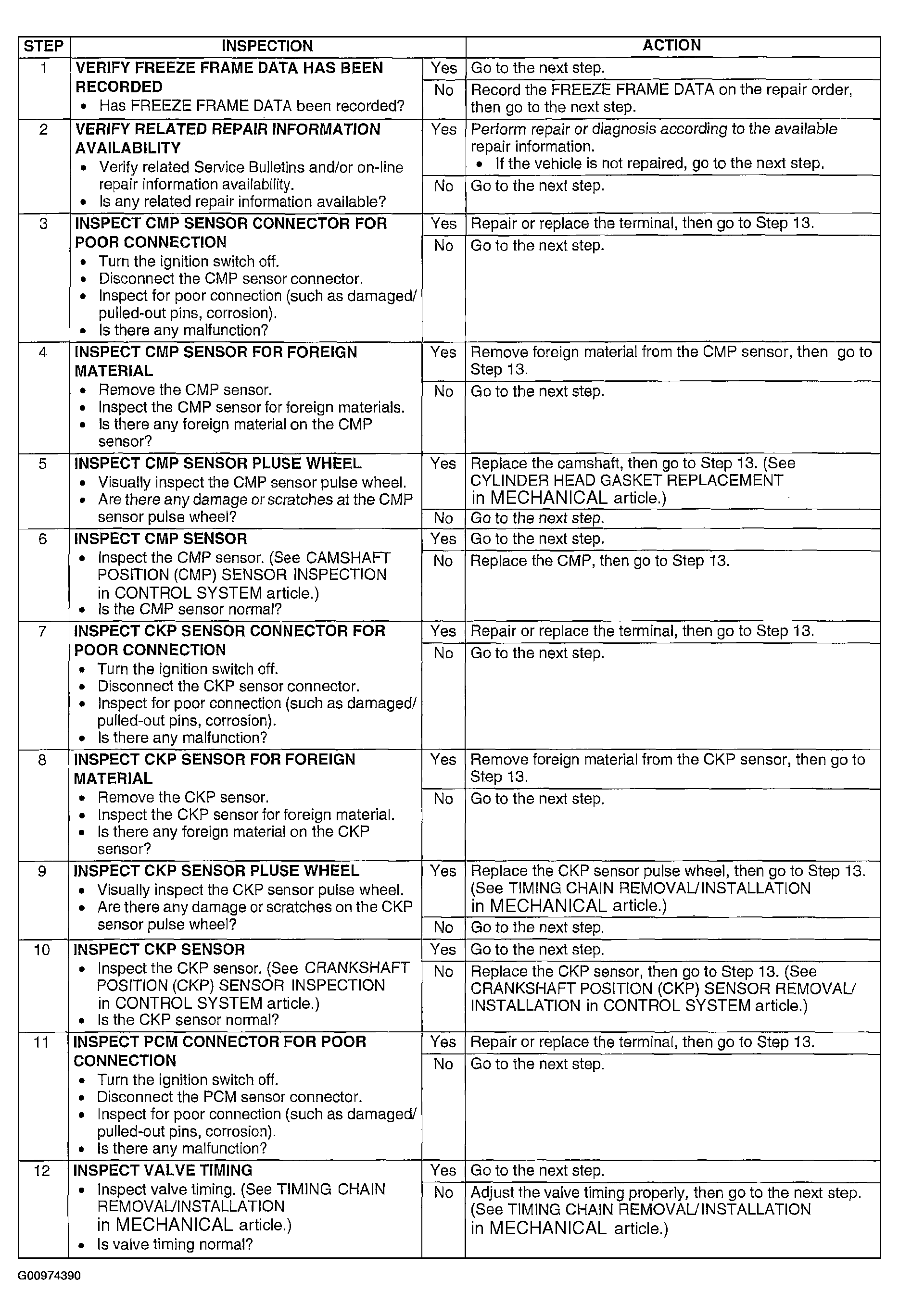

Fig 1: DTC P0016: Diagnostic Procedure Chart (Steps 1-12)
Courtesy of MAZDA MOTORS CORP.

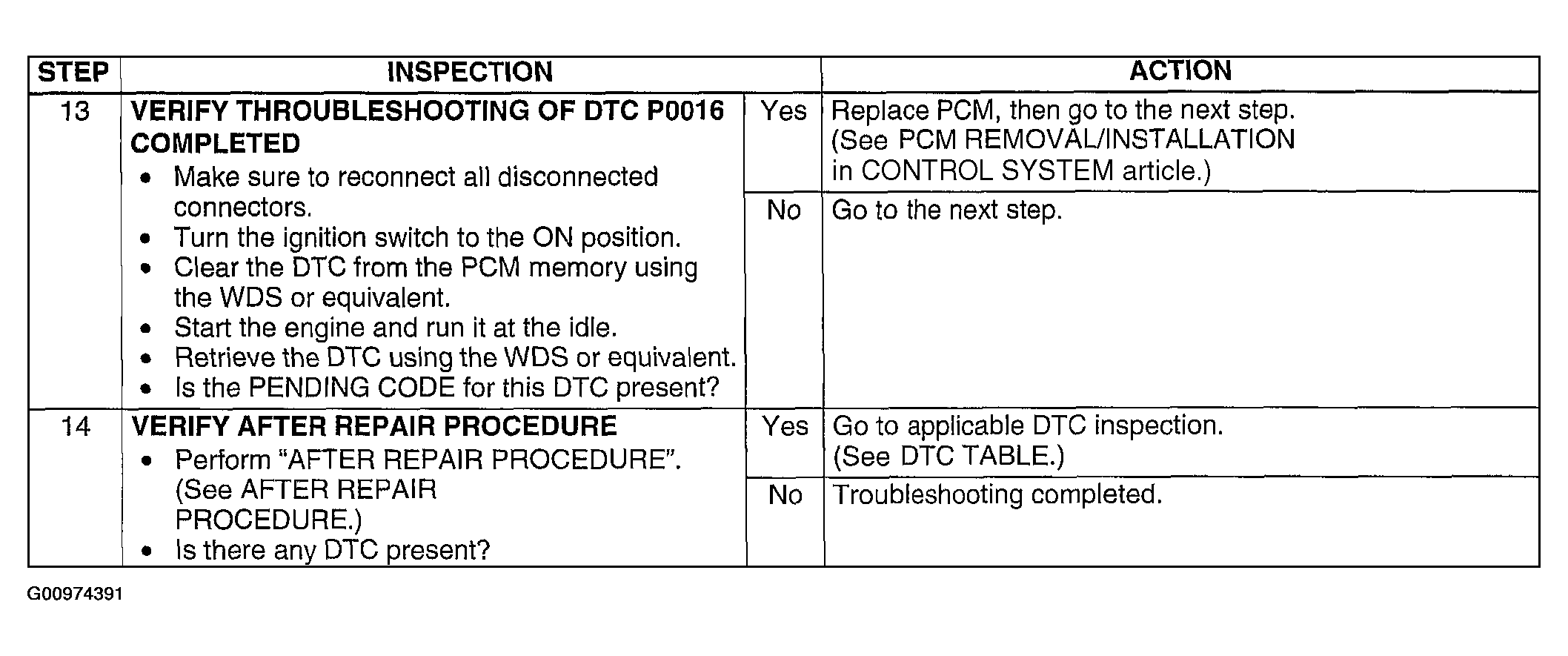

Fig 2: DTC P0016: Diagnostic Procedure Chart (Steps 13 & 14)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
