Middle HO2S Heater Resistance Inspection

  1. Disconnect the middle HO2S connector.
  2. Measure the middle HO2S resistance between terminals C and D.
    • If not within the specification, replace the middle HO2S.

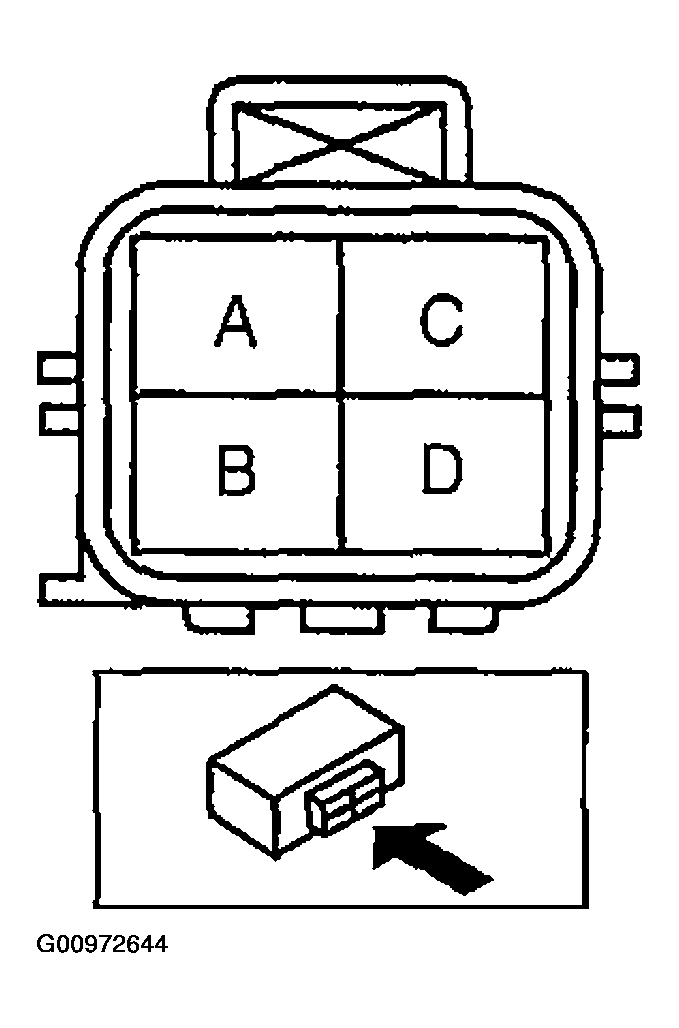

    Fig 1: Identifying Middle HO2S Connector Terminals
    G00972644Courtesy of MAZDA MOTORS CORP.
  1. Middle HO2S heater resistance 2-50 ohms
