Symptom Troubleshooting (Keyless Entry System)
>>
Keyless Entry System Preliminary Inspection
Keyless Entry System Preliminary Inspection
Perform the following preliminary inspection before troubleshooting.

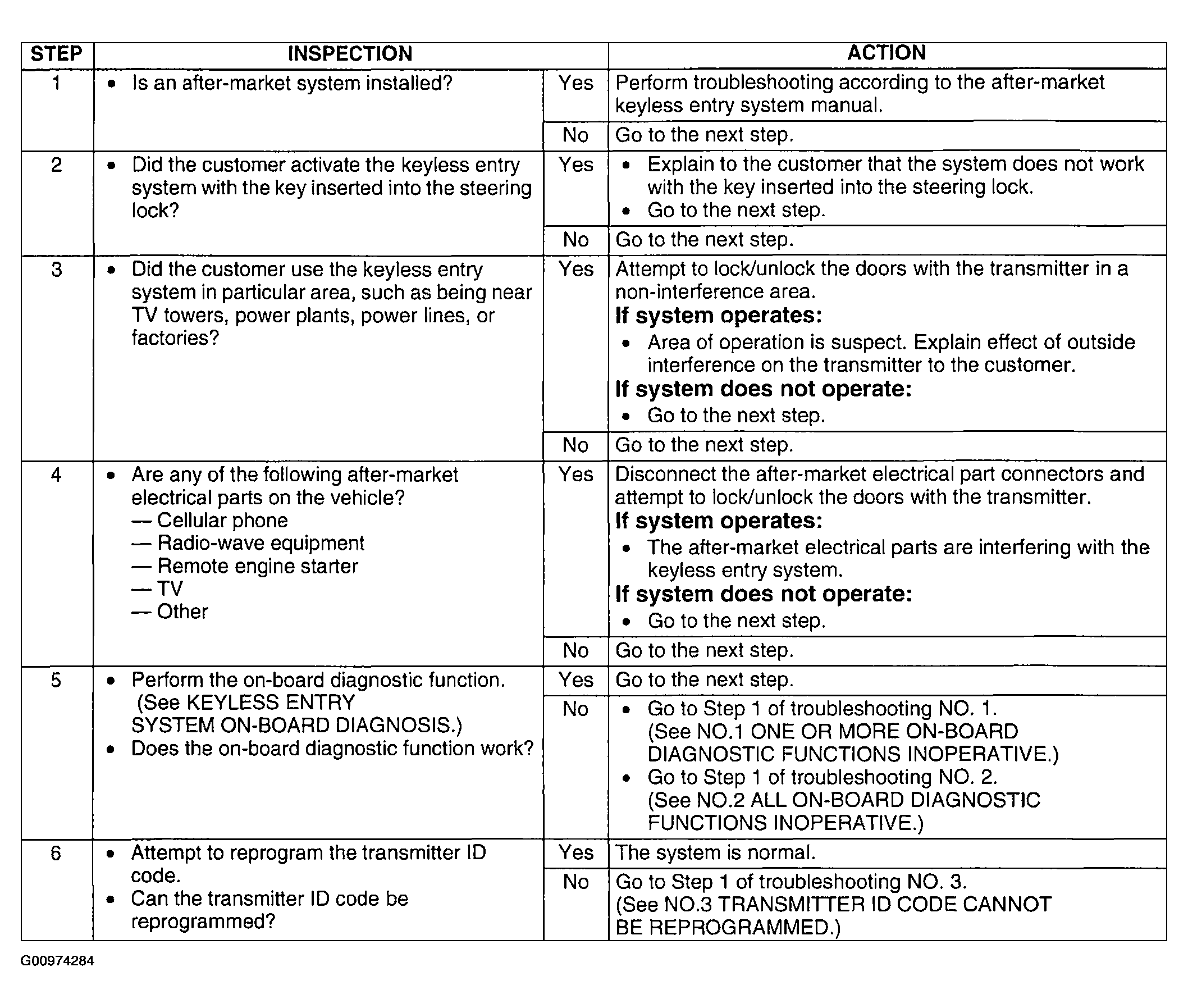

Fig 1: Keyless Entry System Preliminary Inspection Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
