Keyless Entry System On-Board Diagnosis

NOTE:
  • "All doors" includes the liftgate. (5 door)

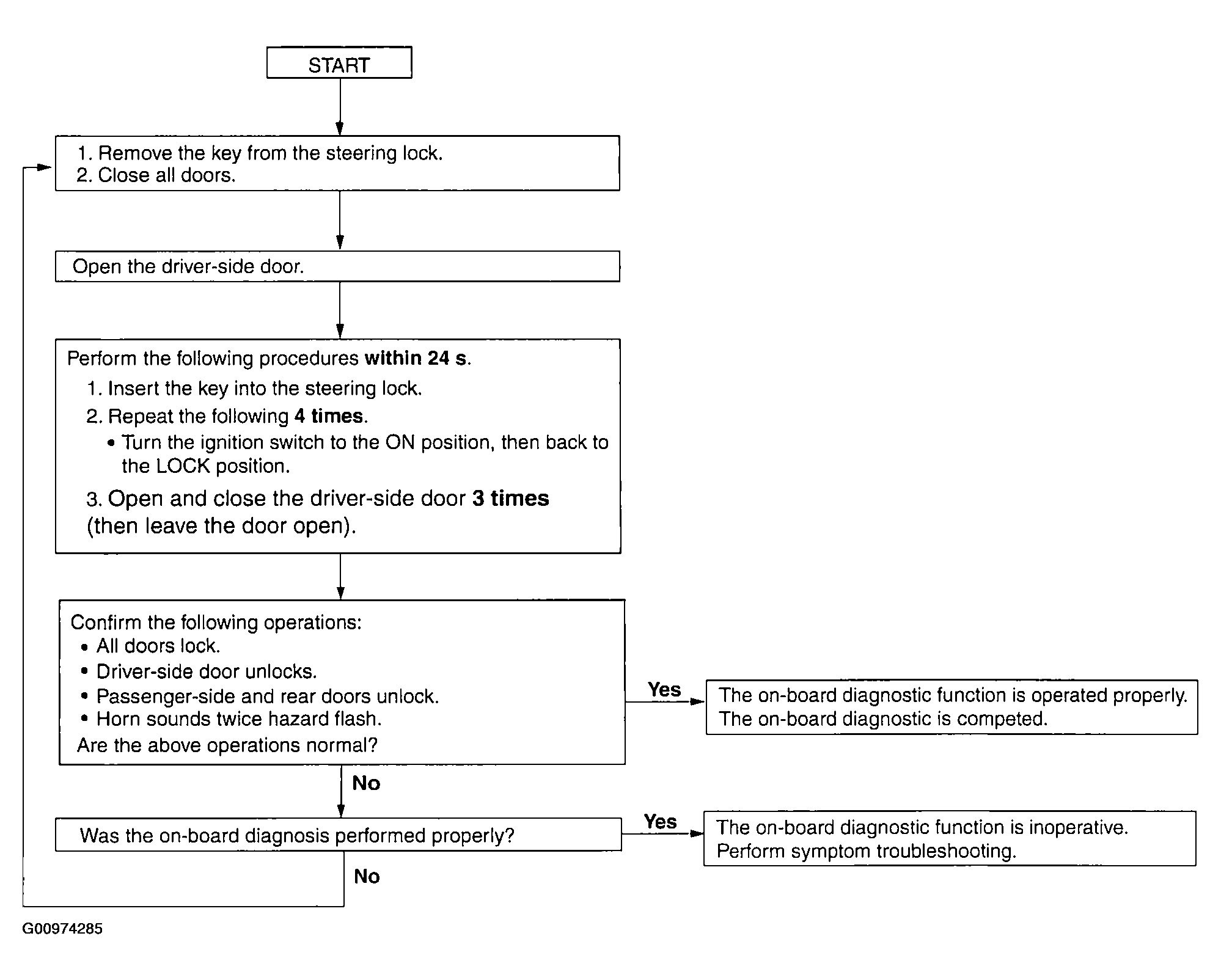

Fig 1: Keyless Entry System On-Board Diagnosis Block Diagram
G00974285Courtesy of MAZDA MOTORS CORP.
