Reference: Clutch/Band Application Chart No. 601

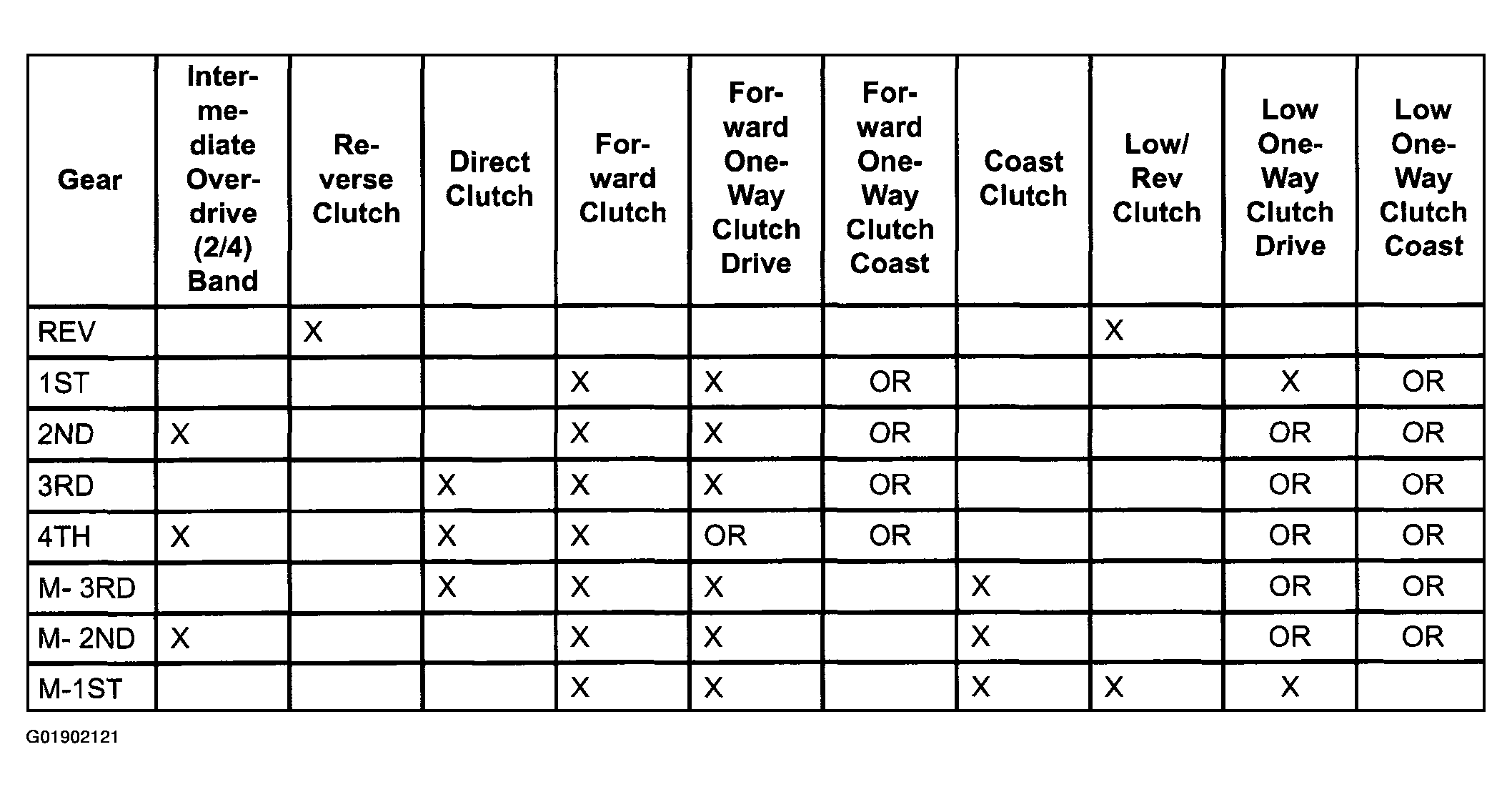

Fig 1: Clutch/Band Application Chart No. 601

G01902121

Courtesy of MAZDA MOTORS CORP.
