Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction

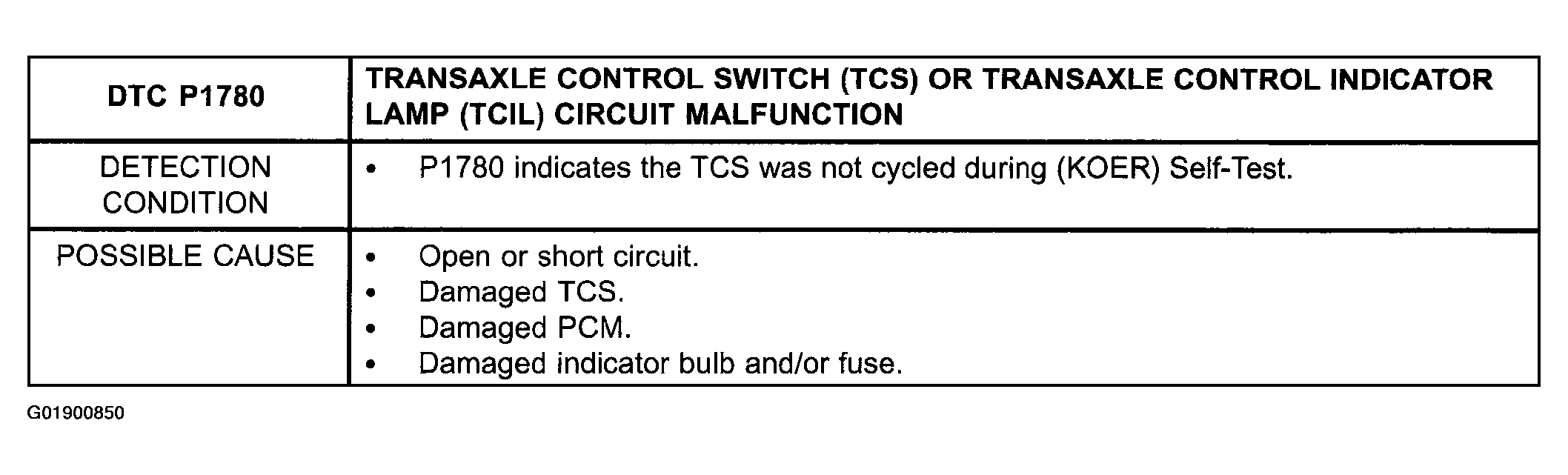

Fig 1: Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction Possible Causes (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

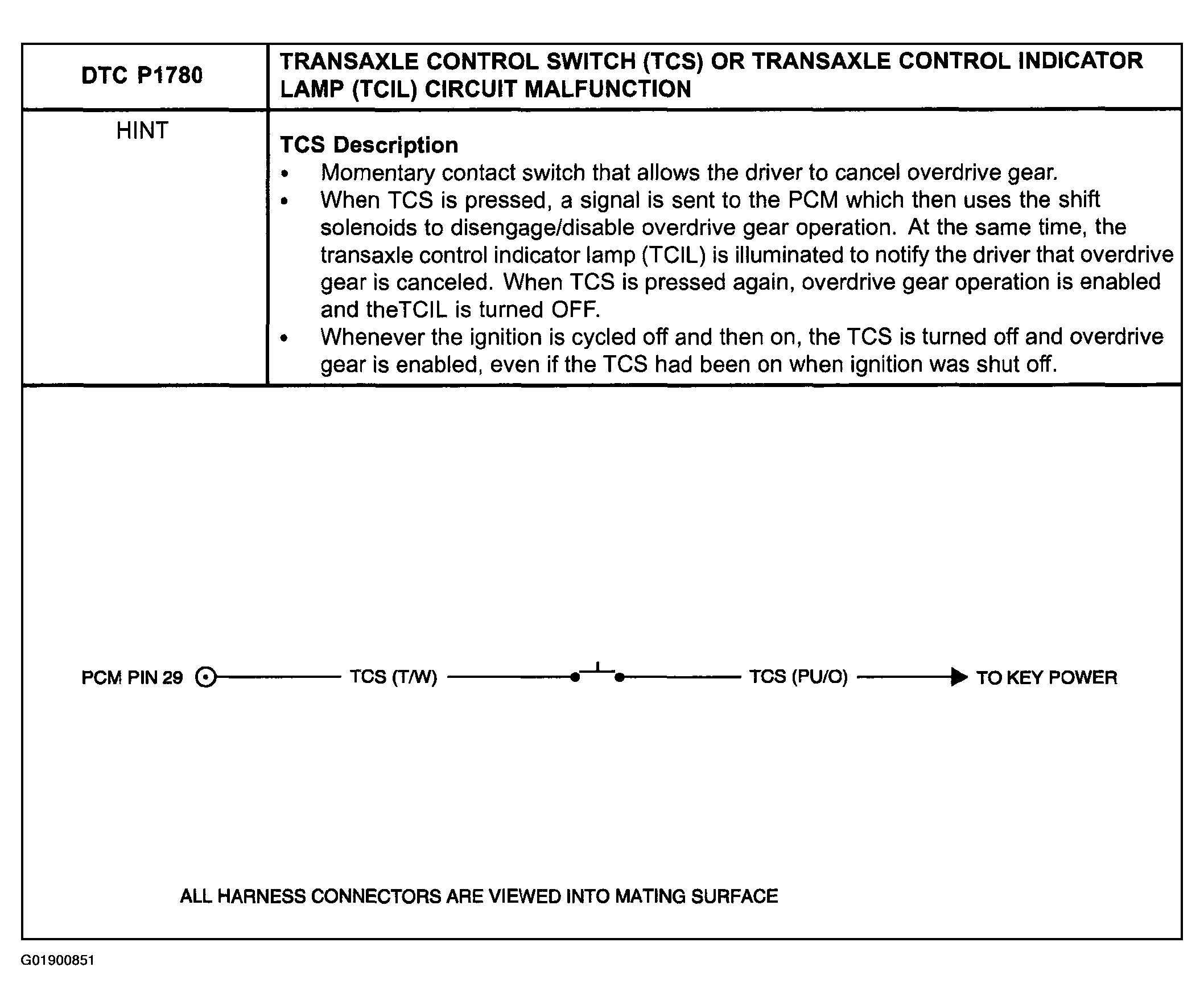

Fig 2: Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction Possible Causes (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

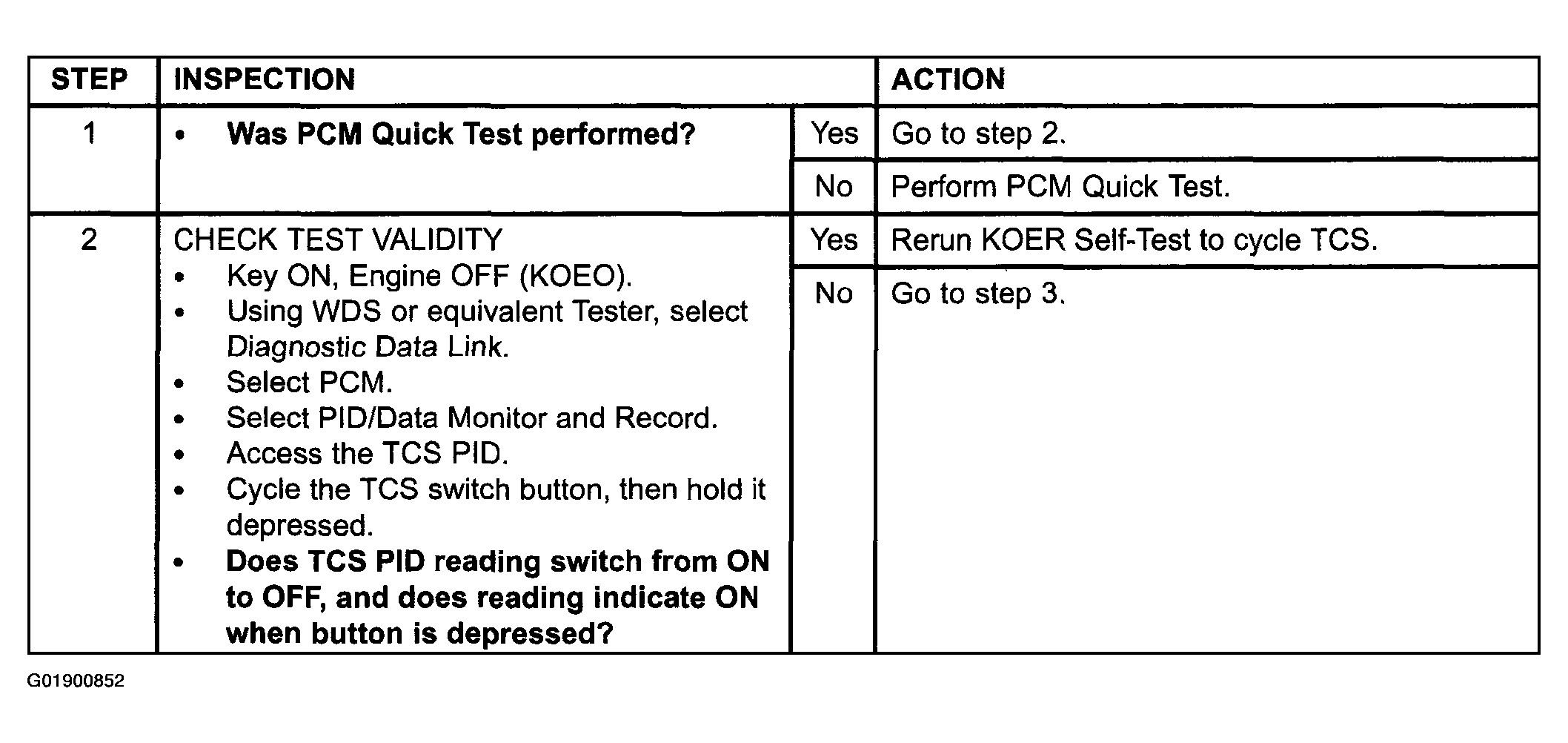

Fig 3: Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction Test Procedure (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

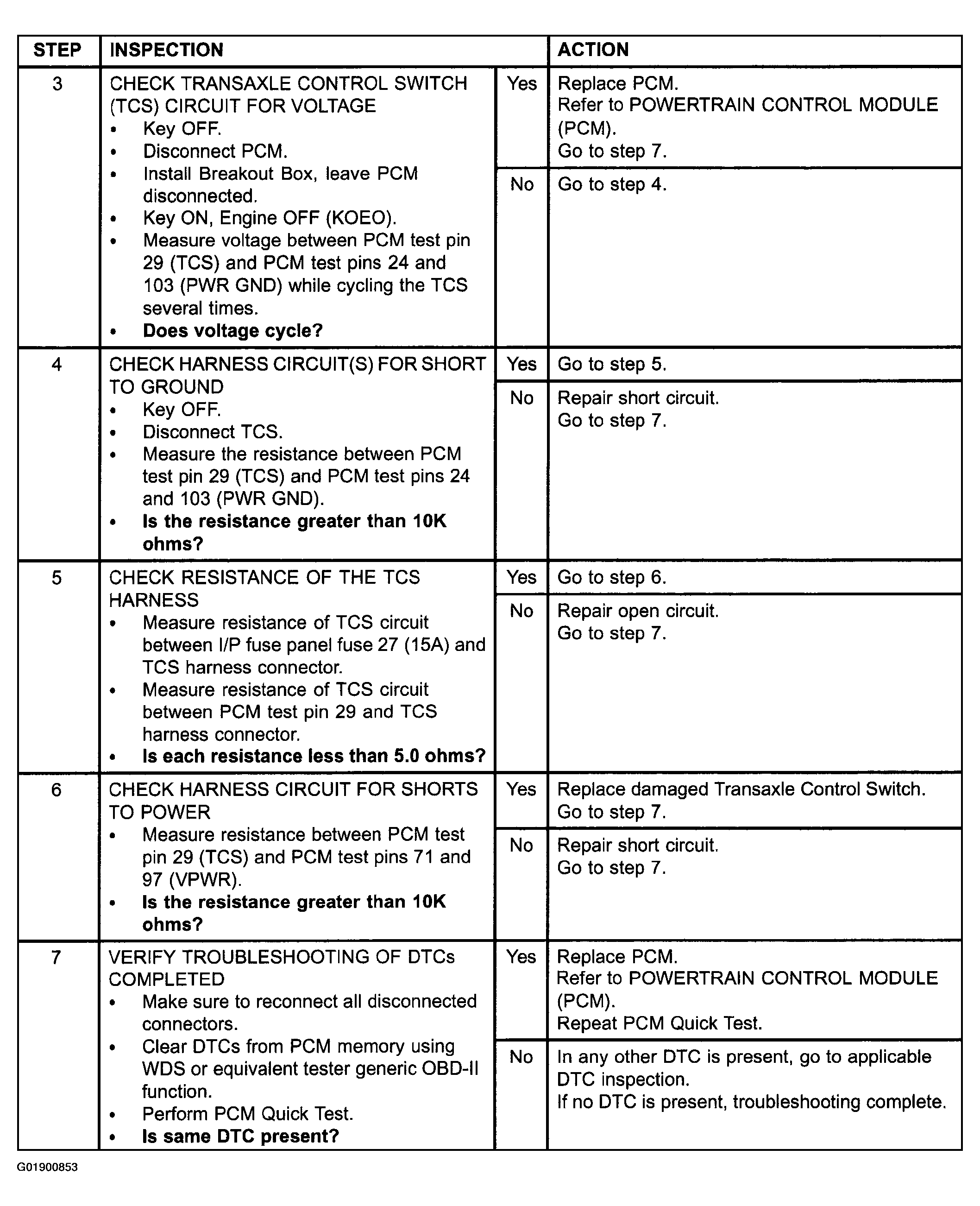

Fig 4: Transaxle Control Switch (TCS) Or Transaxle Control Indicator Lamp (TCIL) Circuit Malfunction Test Procedure (Steps 3-7)
