Home >> Mazda >> 2003 >> Tribute ES, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Symptom Troubleshooting - Transmission >> Symptom Troubleshooting Chart - Clutch >> Notes

Symptom Troubleshooting Chart - Clutch: Notes

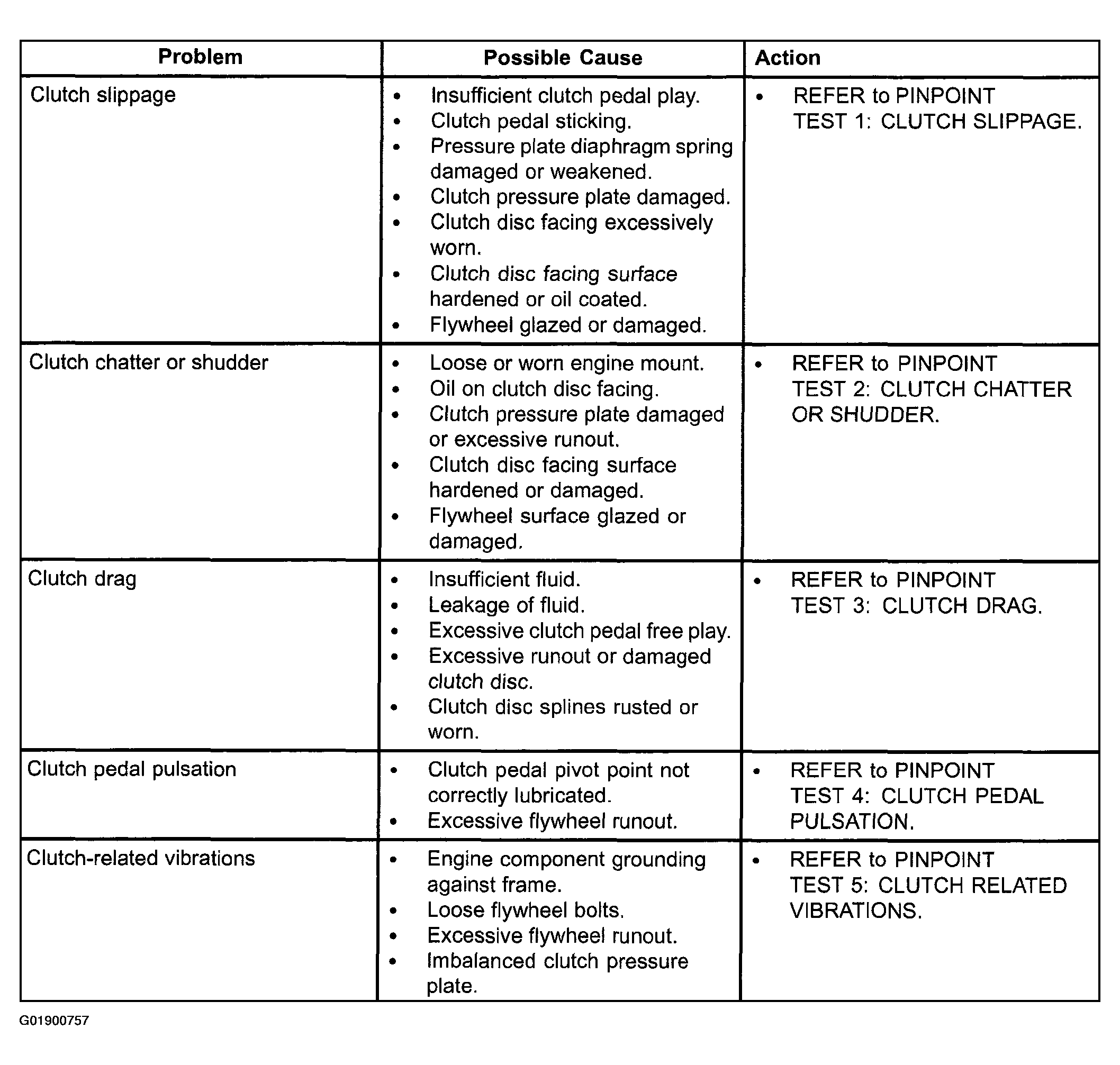

Fig 1: Symptom Troubleshooting Chart - Clutch (1 Of 2)
G01900757Courtesy of MAZDA MOTORS CORP.

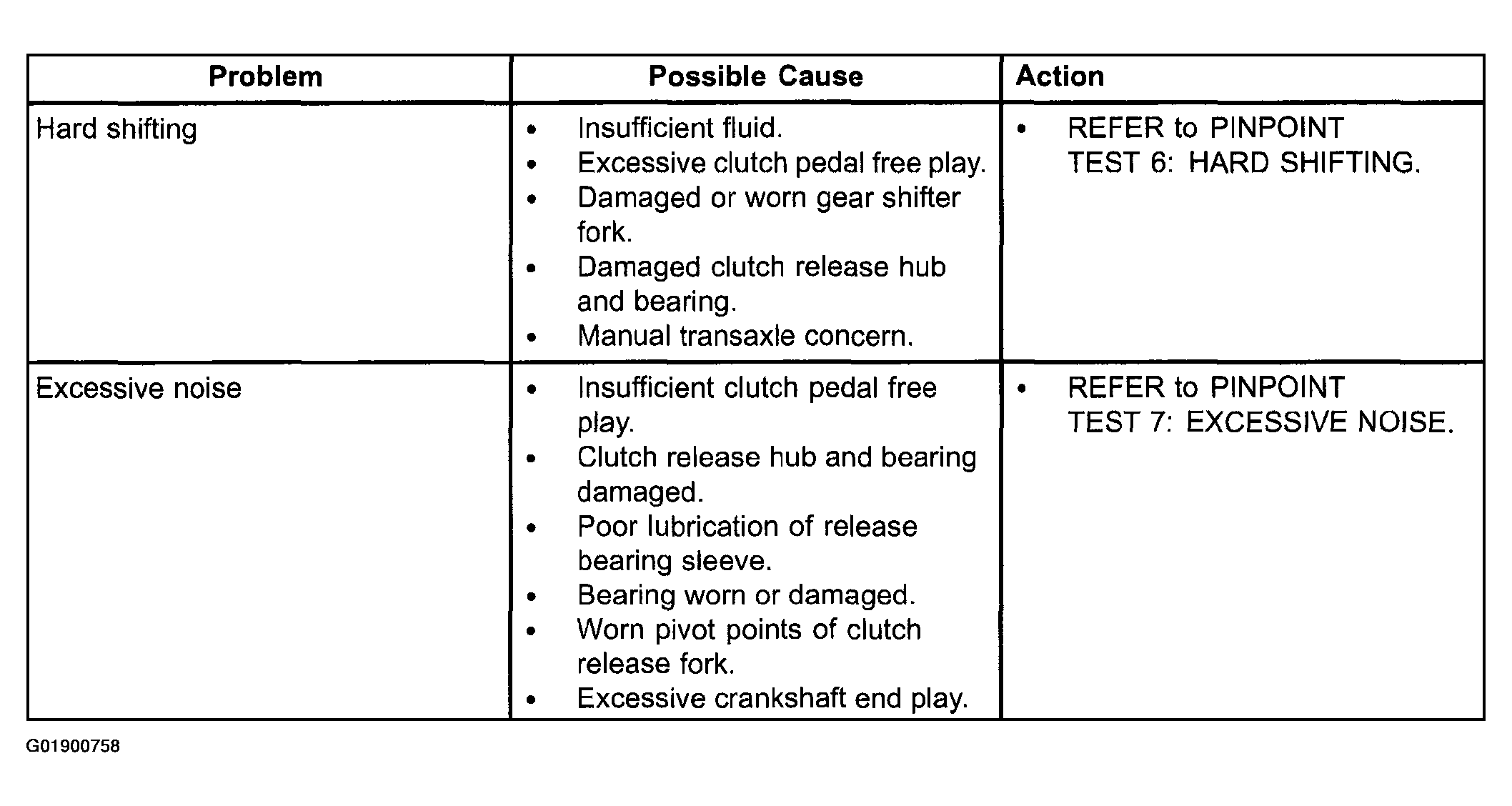

Fig 2: Symptom Troubleshooting Chart - Clutch (2 Of 2)
G01900758Courtesy of MAZDA MOTORS CORP.
