Symptom Troubleshooting Chart - Automatic Transaxle Cooling

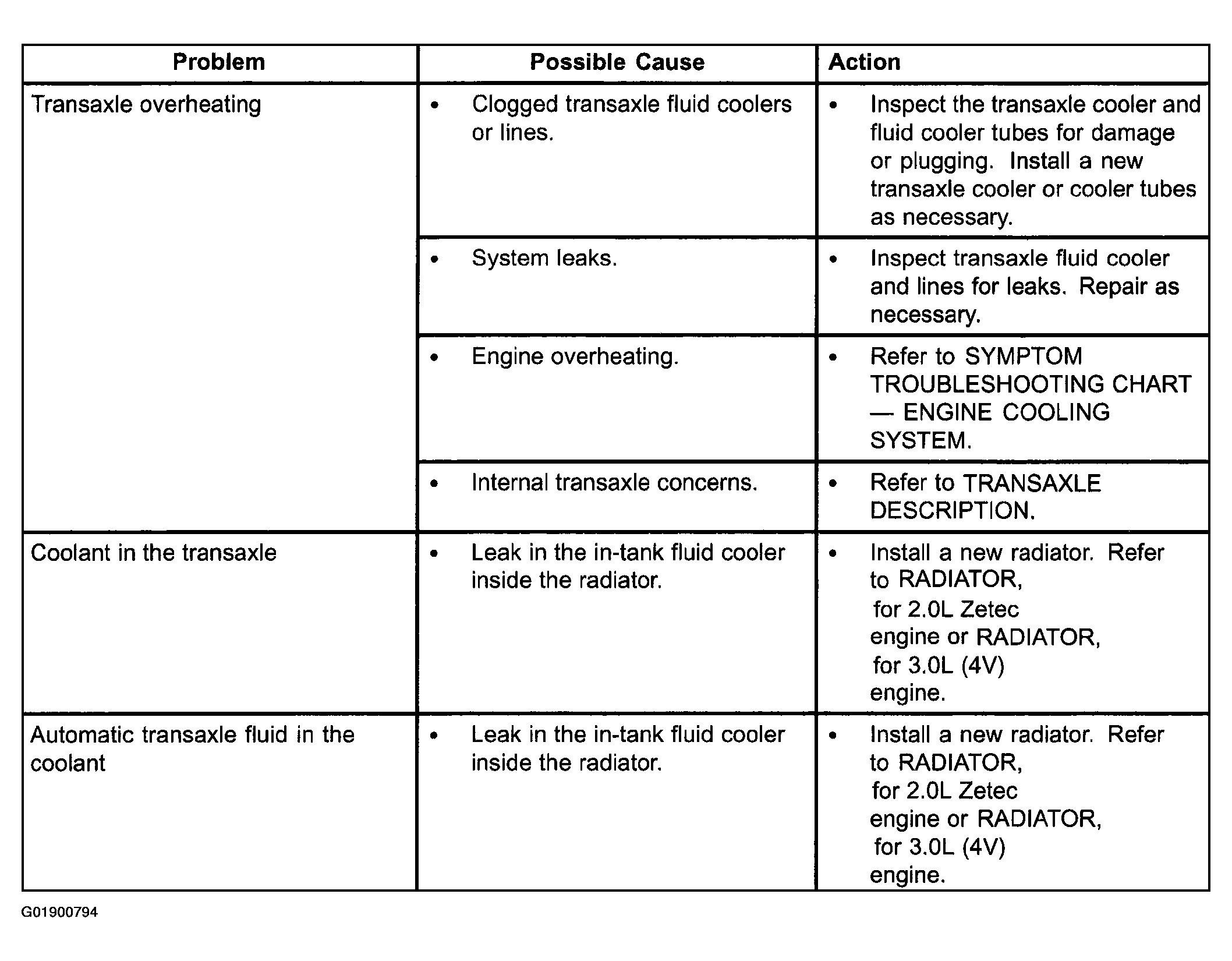

Fig 1: Symptom Troubleshooting Chart - Automatic Transaxle Cooling

G01900794

Courtesy of MAZDA MOTORS CORP.
