Transaxle Range (Tr) Sensor: Installation

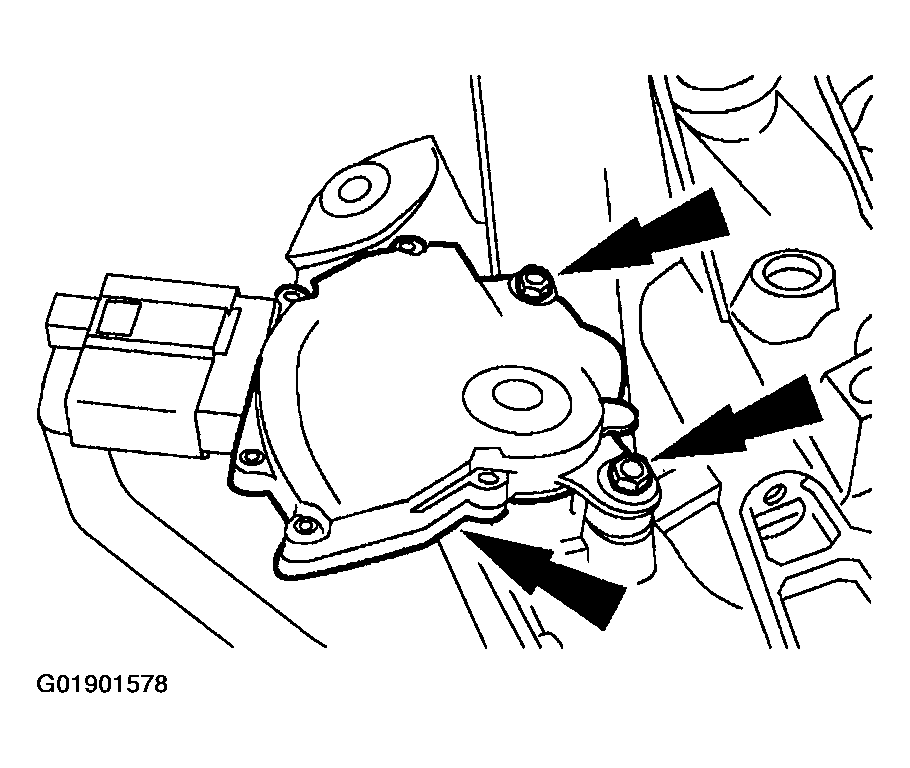

Fig 1: Installing Transaxle Range (TR) Sensor And Loosely Install Bolts

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Make sure the transaxle is in the NEUTRAL position.

1. Install the transaxle range (TR) sensor and loosely install the bolts.

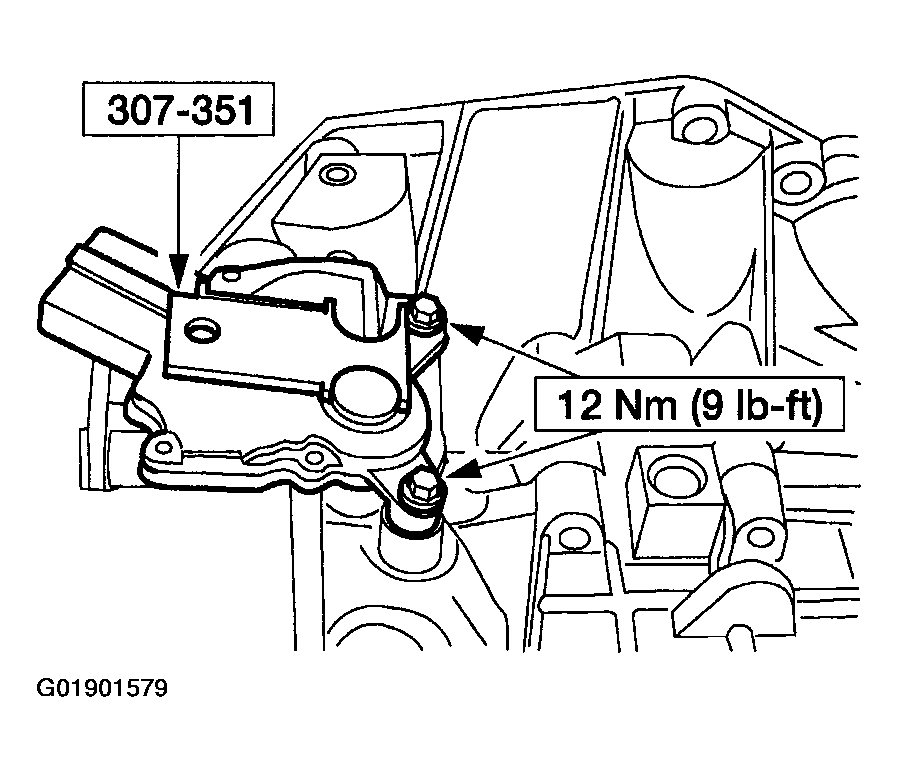

   Fig 2: Aligning TR Sensor And Tighten Bolts

   Courtesy of MAZDA MOTORS CORP.
2. Using the special tool, align the TR sensor and tighten the bolts.
   1. Connect the electrical connector.
3. Install the thermostat housing. Refer to THERMOSTAT -- 3.0L DURATEC (4V) .
   Fig 3: Installing Thermostat Housing

   Courtesy of MAZDA MOTORS CORP.

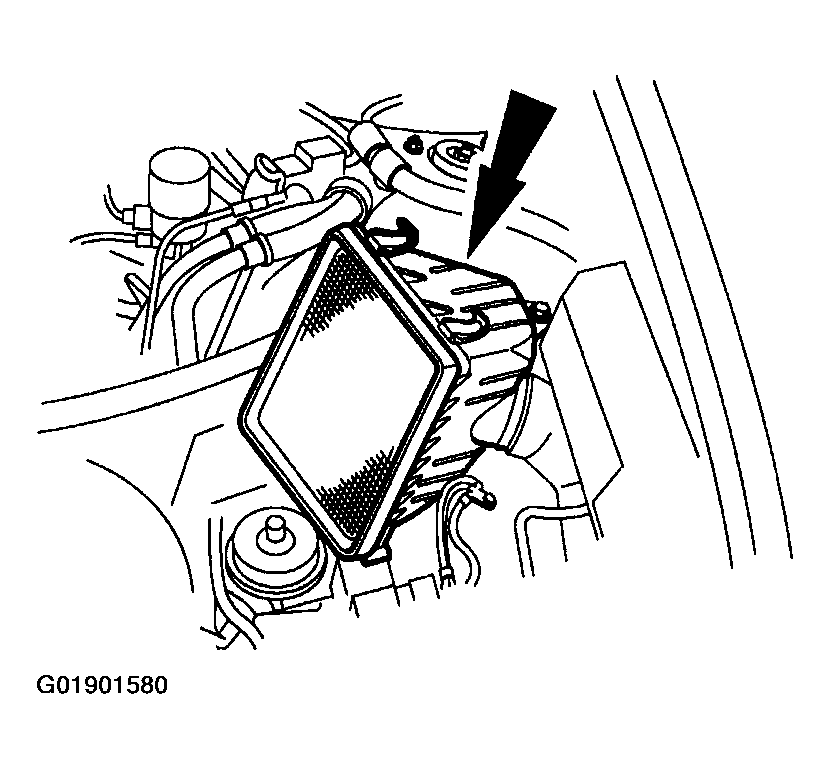

4. Install the air cleaner assembly.

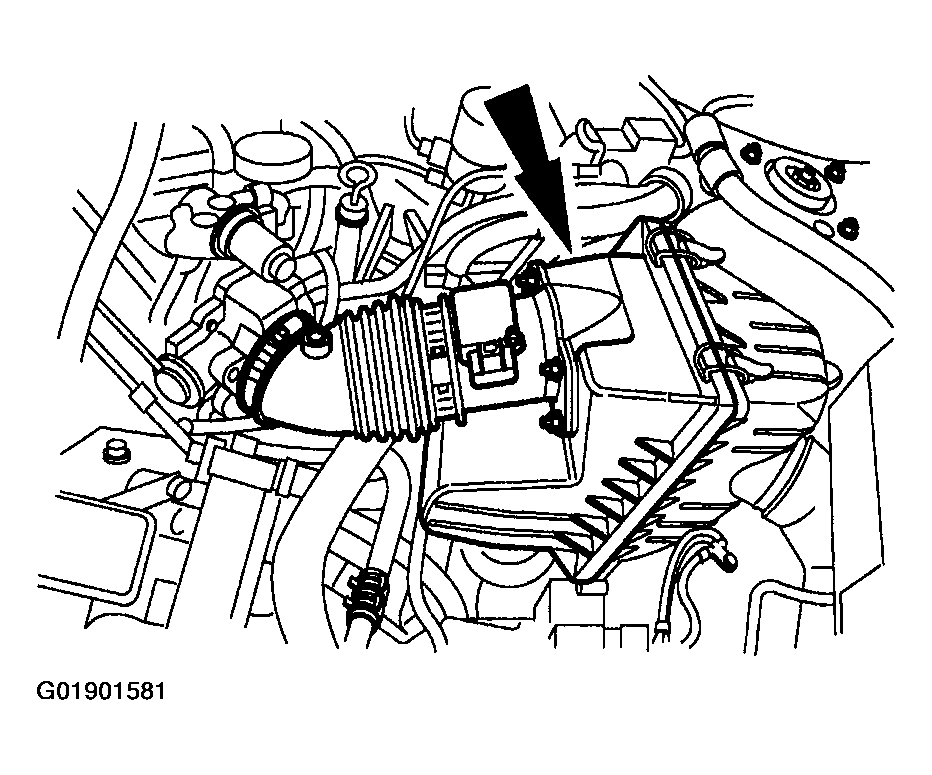

   Fig 4: Installing Intake Tube And Air Cleaner Cover

   Courtesy of MAZDA MOTORS CORP.
5. Install the intake tube and air cleaner cover.

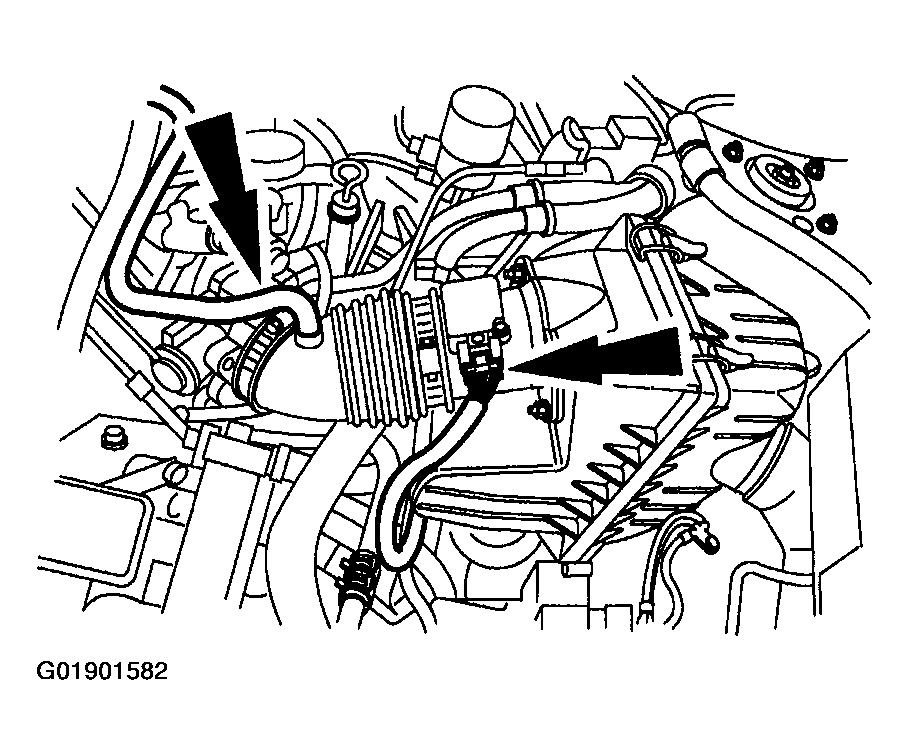

   Fig 5: Connecting Breather Tube And Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

   Courtesy of MAZDA MOTORS CORP.
6. Connect the breather tube and mass air flow (MAF)/intake air temperature (IAT) sensor.
   NOTE:

   • Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.
7. Install the battery and tray. .
8. Connect the battery cables.
9. Check the correct operation with parking brake control engaged. The engine should start only in PARK or NEUTRAL. Backup lamps should be active only in the REVERSE position.
