Assembly Note

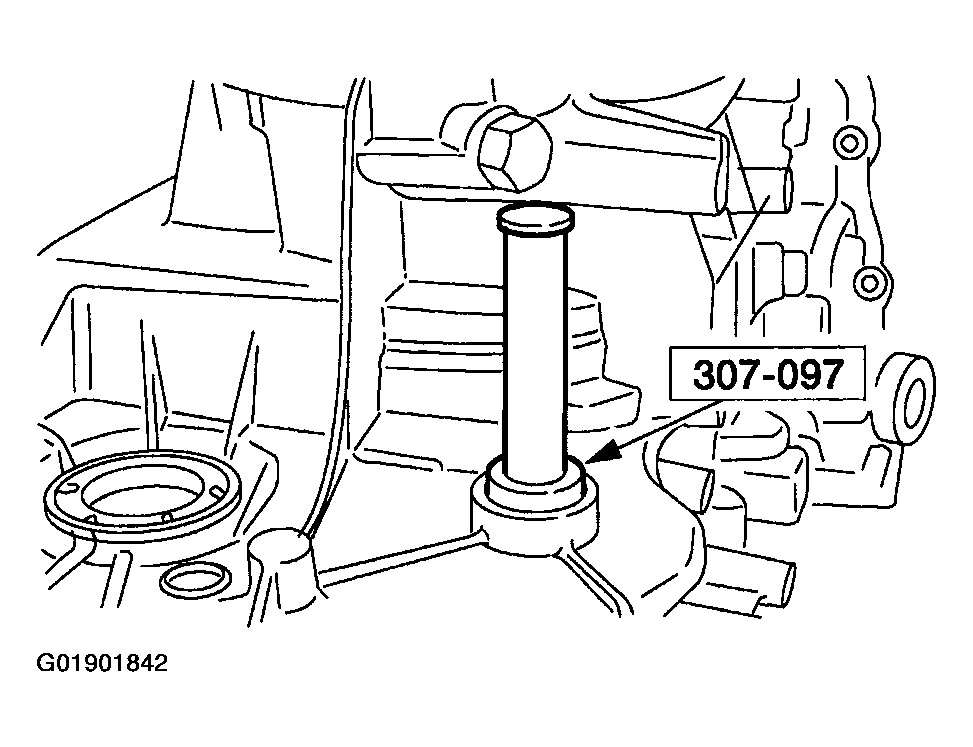

Fig 1: Installing Driven Sprocket Bearing No. 18 Into Transaxle Case

Courtesy of MAZDA MOTORS CORP.

NOTE:

A new driven sprocket bearing No. 18 can be installed once before an installation of the transaxle case becomes necessary. If the No. 18 driven sprocket bearing was installed previously and a second installation is required, a new transaxle case must be installed.

As necessary, install the No. 18 driven sprocket bearing into the transaxle case.
1. Position the special tool.
2. Position the special tool.
3. Install new bearing.

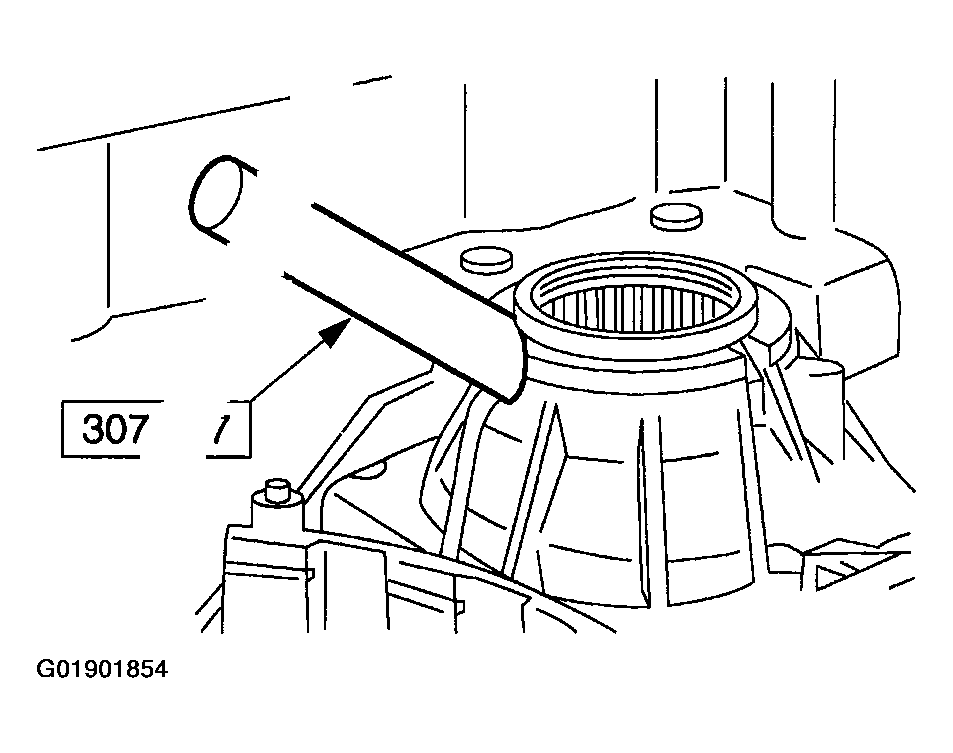

  Fig 2: Installing No. 18 Driven Sprocket Bearing Assembly By Pressing It Into Transaxle Case
  Courtesy of MAZDA MOTORS CORP.
  CAUTION:
  - Do not lubricate the outer surface of the No. 18 driven sprocket bearing assembly.
  NOTE:
  - The No. 18 driven sprocket bearing must be installed with the lettering on the needle bearing surface facing toward the needle bearing replacer.

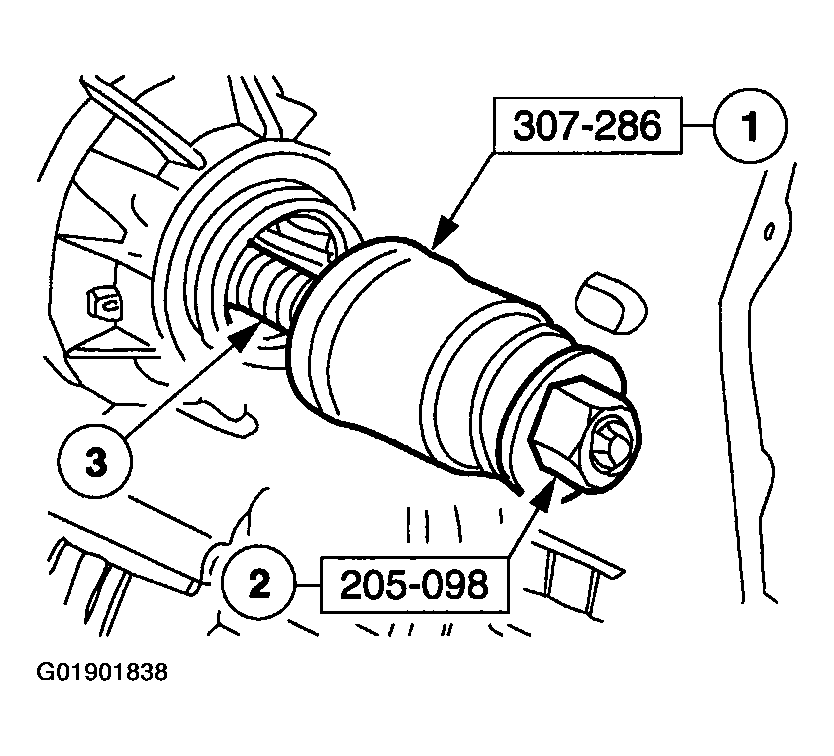

Using the special tools, install the No. 18 driven sprocket bearing assembly by pressing it into the transaxle case.
1. Install the bearing on the special tool.
2. Position the special tool.
3. Install the No. 18 driven sprocket bearing.

  Fig 3: Installing Cooler Tube Fitting
  Courtesy of MAZDA MOTORS CORP.
Install the cooler tube fitting.

Fig 4: Installing Line Pressure Port Plug
Courtesy of MAZDA MOTORS CORP.
Install the line pressure port plug.

Fig 5: Installing A New Manual Control Lever Seal
Courtesy of MAZDA MOTORS CORP.

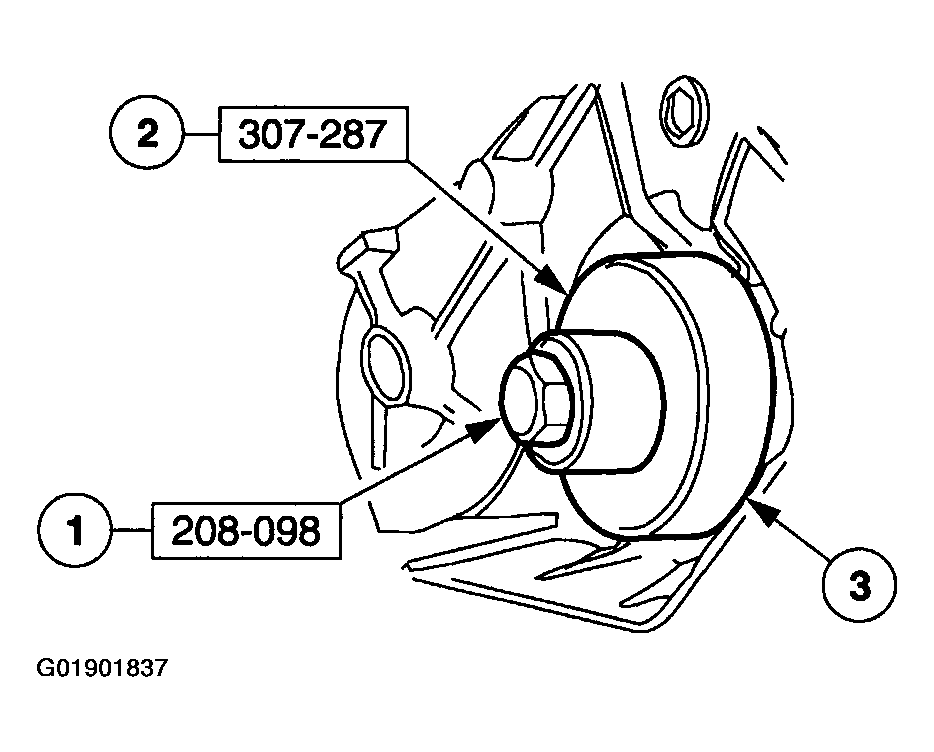

Using the special tool, install a new manual control lever seal.

Fig 6: Installing A New Manual Control Seal
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install a new manual control seal.

Fig 7: Installing Manual Valve Detent Lever Assembly And Manual Valve Detent Lever Shaft Assembly
Courtesy of MAZDA MOTORS CORP.

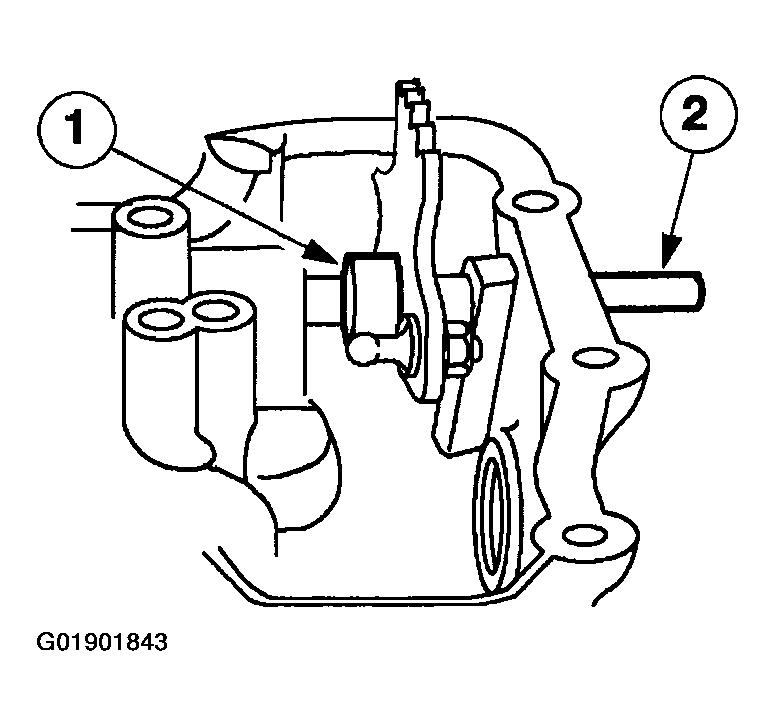

Install the manual valve detent lever assembly and the manual valve detent lever shaft assembly.
1. Position the manual valve detent lever into the transaxle case.
2. Install the manual valve detent lever shaft into the transaxle case and lever.

  Fig 8: Installing A New Manual Shaft Retaining Pin
  Courtesy of MAZDA MOTORS CORP.

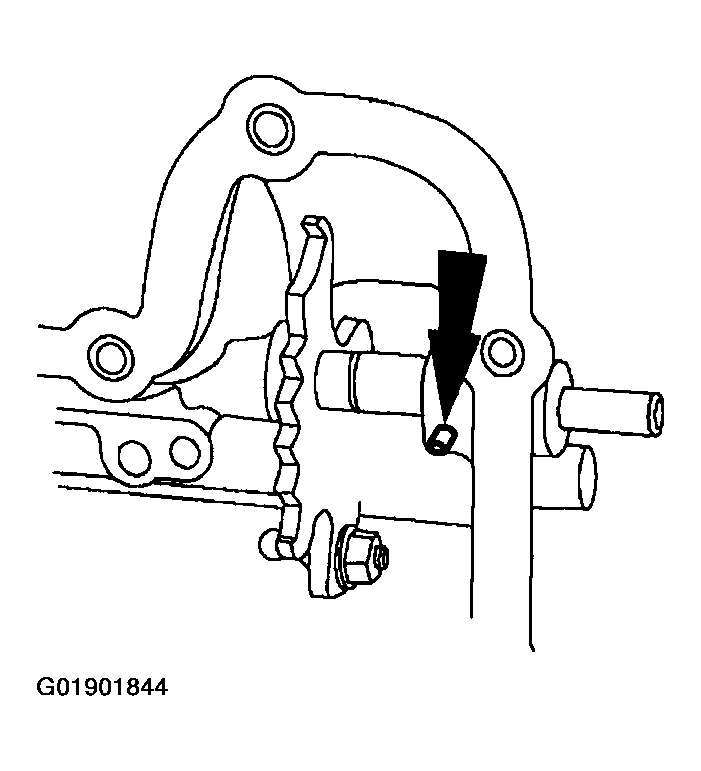

Install a new manual shaft retaining pin.

Fig 9: Installing A New Manual Valve Detent Lever Shaft Retaining Pin
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not allow the manual shaft retaining pin to contact the transaxle case.
Install a new manual valve detent lever shaft retaining pin.
1. Verify that the manual valve detent lever shaft rotates without binding.

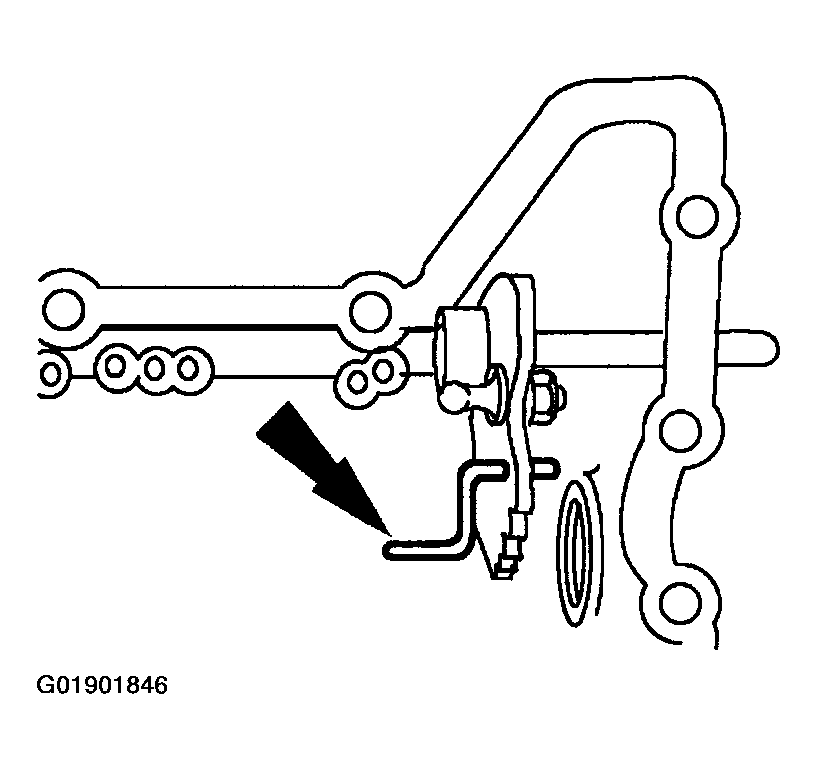

Fig 10: Installing Manual Valve Actuator Rod (Manual Valve Link)
Courtesy of MAZDA MOTORS CORP.
Install the manual valve actuator rod (manual valve link).

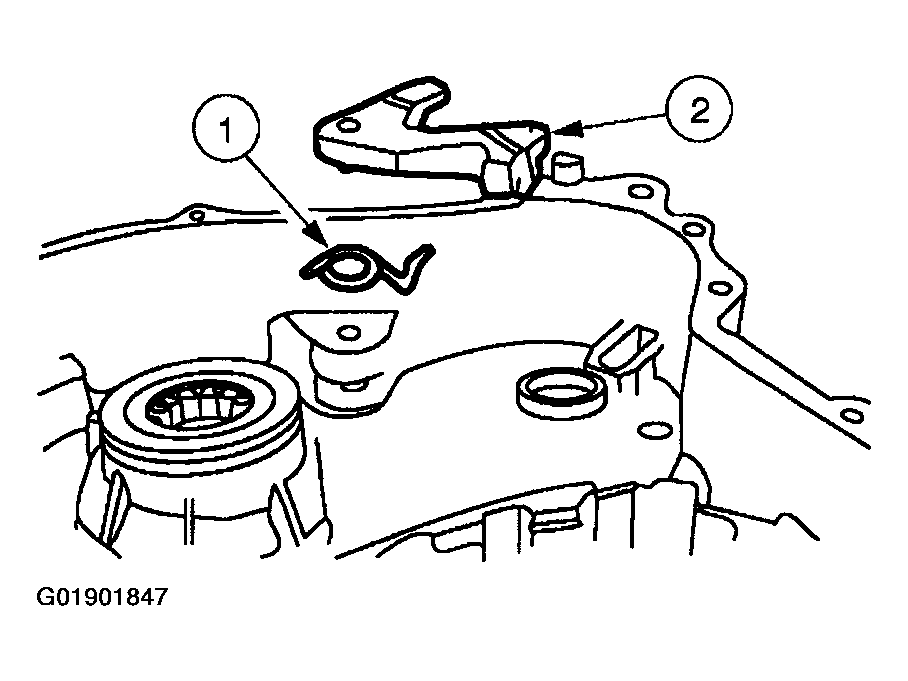

Fig 11: Installing Parking Pawl Assembly
Courtesy of MAZDA MOTORS CORP.
Install the parking pawl assembly.
1. Install the parking pawl return spring.
2. Install the parking pawl.

  Fig 12: Installing Parking Pawl Shaft
  Courtesy of MAZDA MOTORS CORP.
Install the parking pawl shaft.

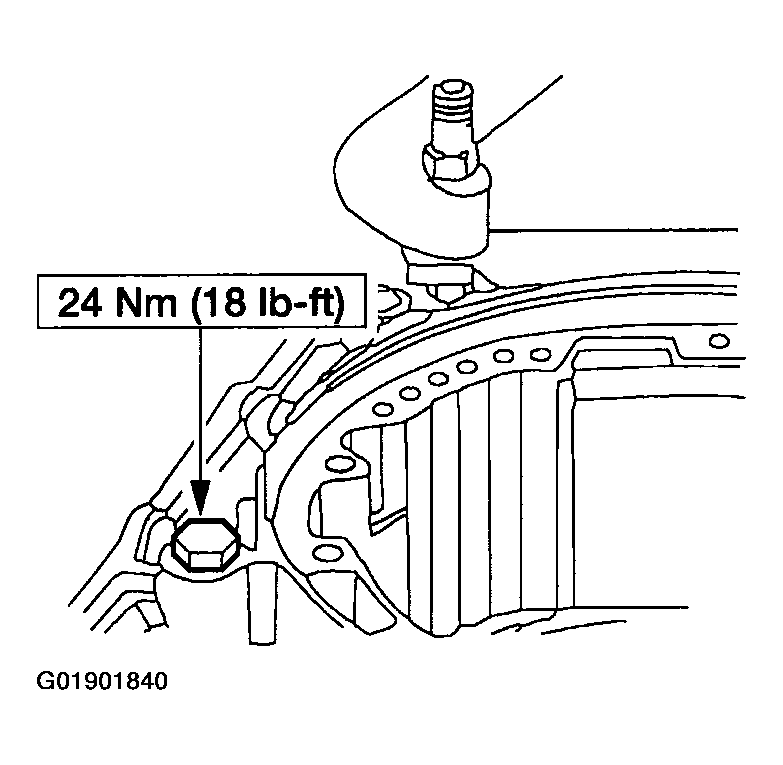

Fig 13: Installing Parking Pawl Shaft Retainer And Bolt
Courtesy of MAZDA MOTORS CORP.
Install the parking pawl shaft retainer and bolt.

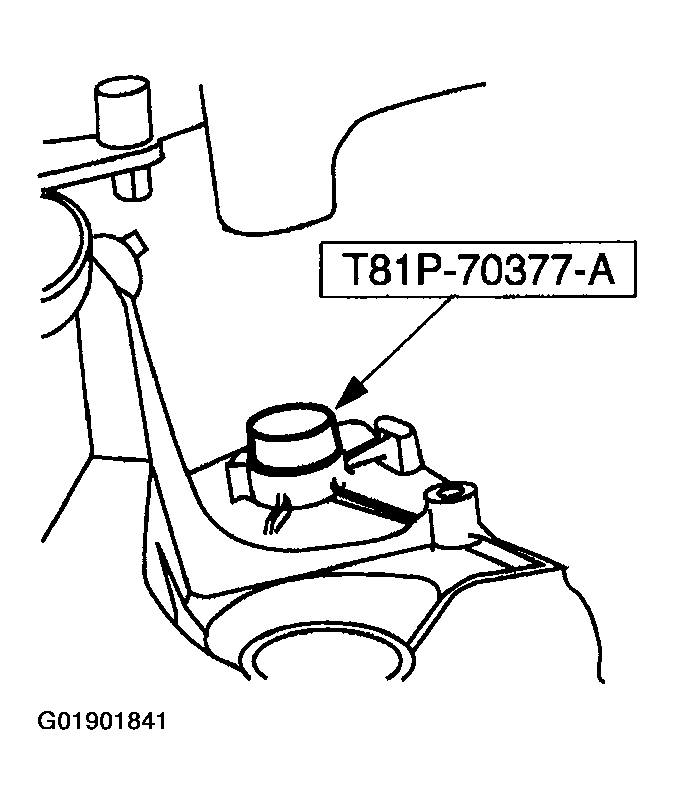

Fig 14: Installing Manual Control Lever Shaft Assembly
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the manual control lever inner shaft prior to installation.
Install the manual control lever shaft assembly.
NOTE:
- Verify that the actuating cam rotates freely.
Install the parking pawl ratcheting spring.

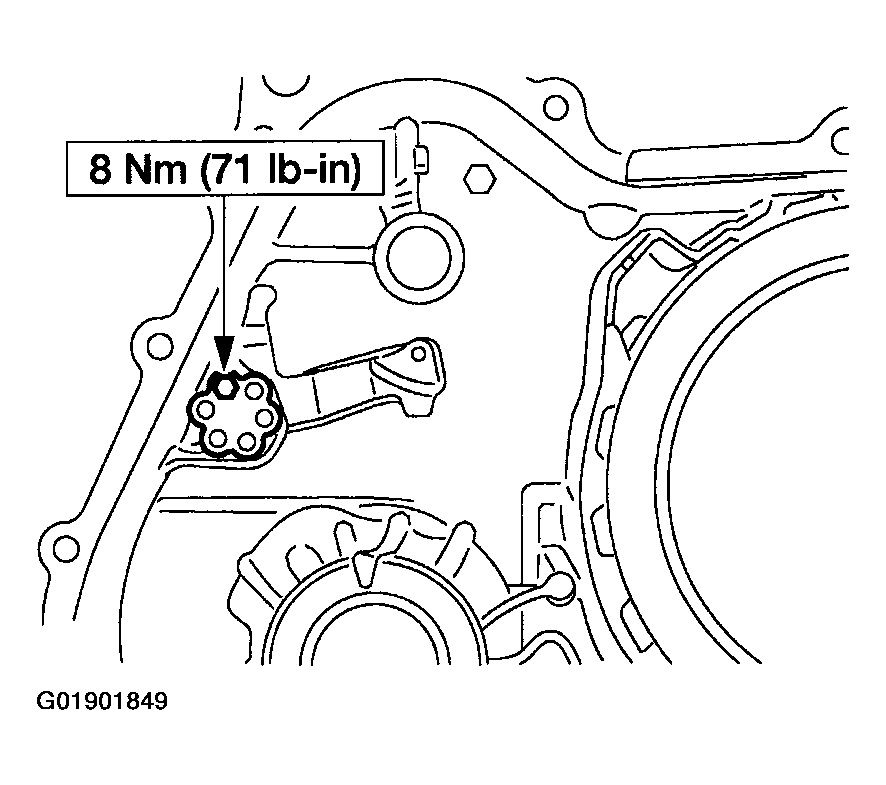

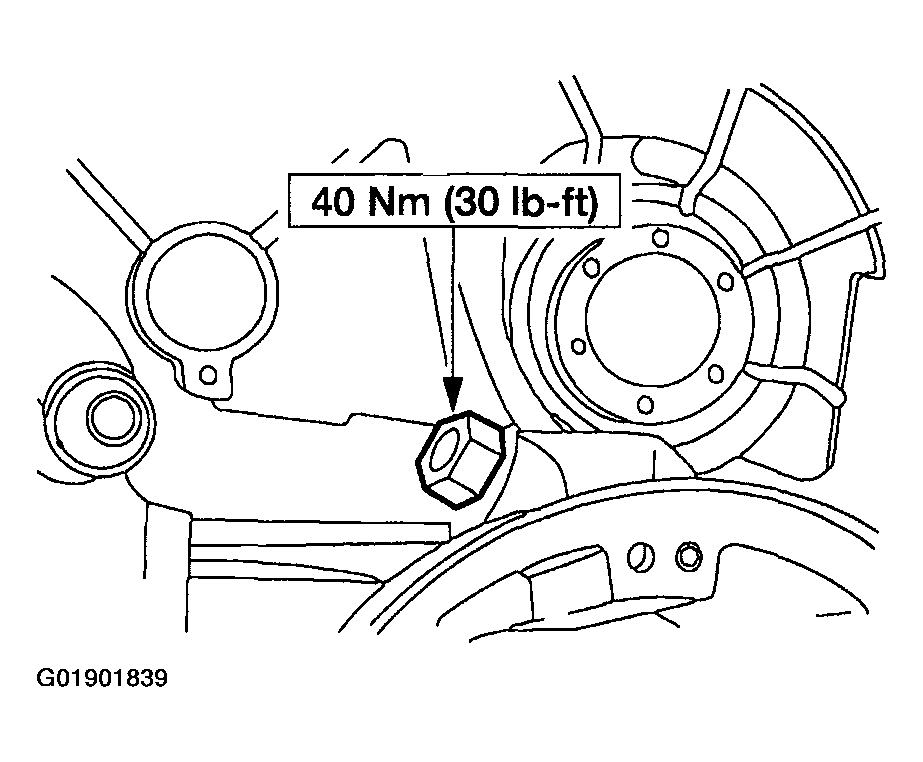

Fig 15: Installing Manual Control Lever Outer Assembly And Bolt
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Hand-tighten the manual control lever bolt; it will be torqued after linkage adjustment.

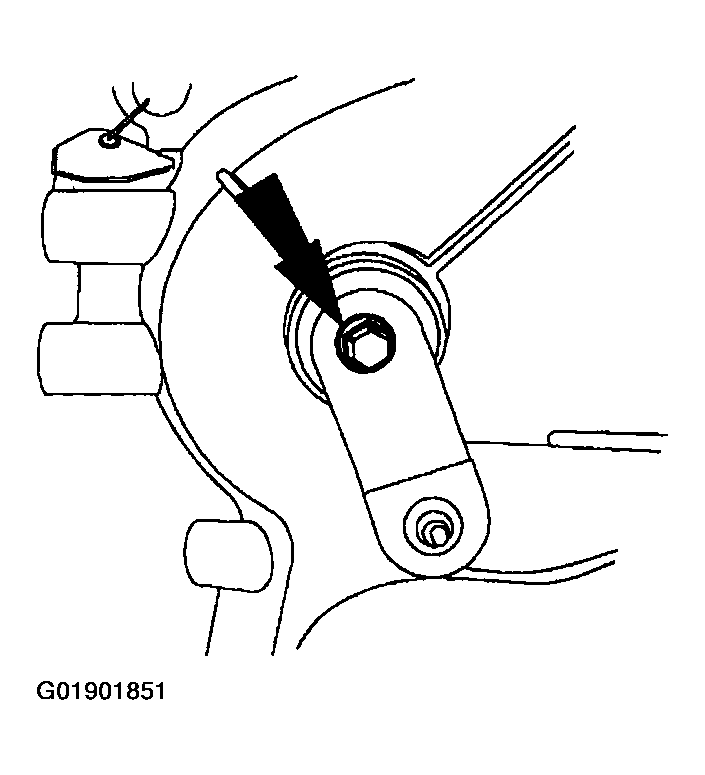

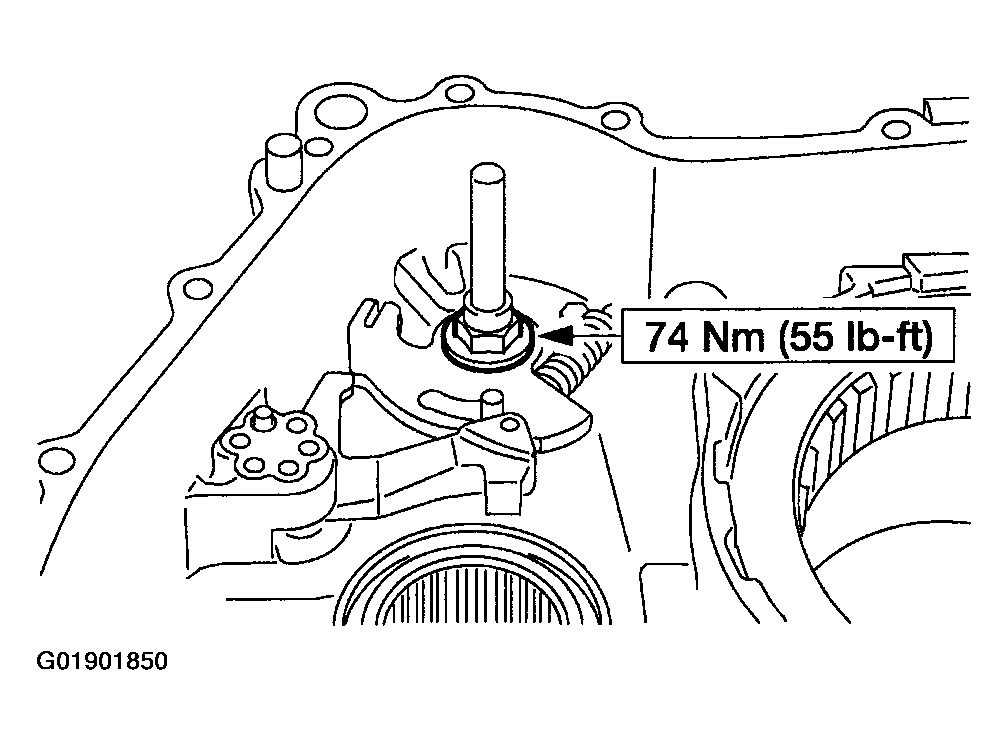

Install the manual control lever outer assembly and bolt.

Fig 16: Installing A New Final Drive Lube Tube Seal
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install a new final drive lube tube seal.

Fig 17: Installing Final Drive Lube Tube Into Seal
Courtesy of MAZDA MOTORS CORP.

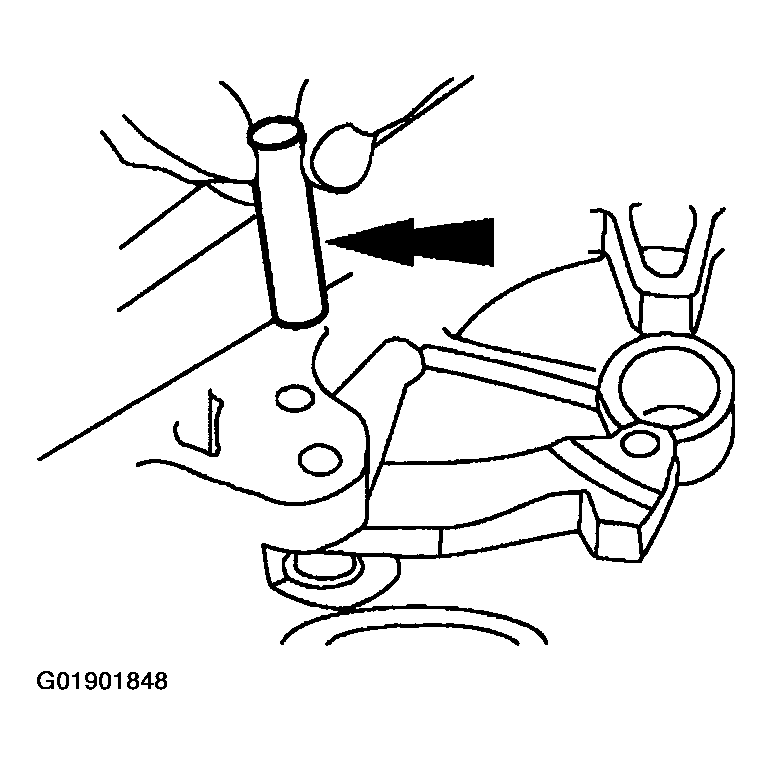

Install the final drive lube tube into the seal.

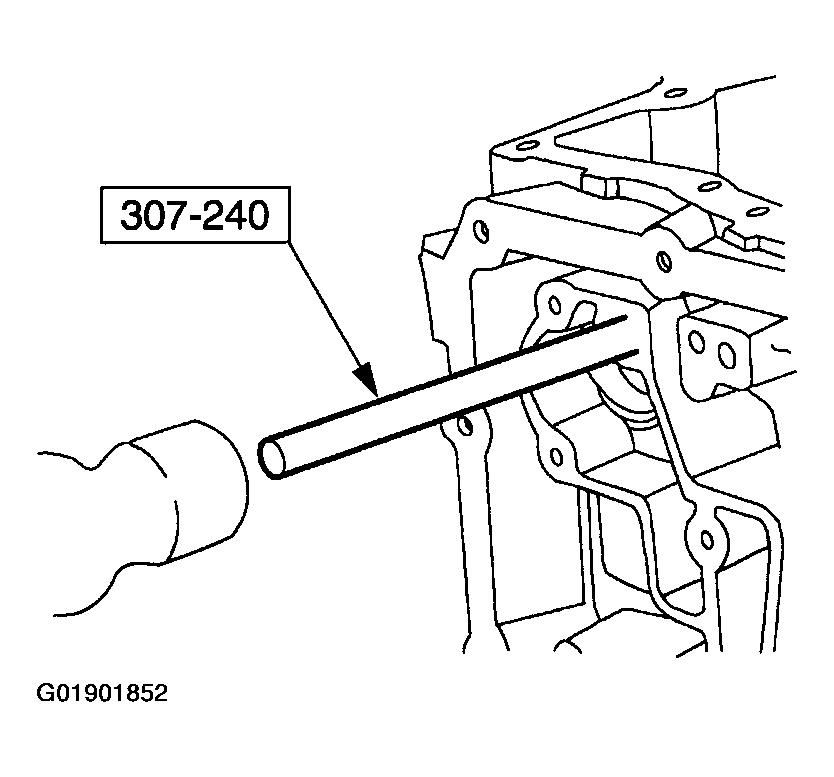

Fig 18: Installing Final Drive Lube Tube Into Case
Courtesy of MAZDA MOTORS CORP.

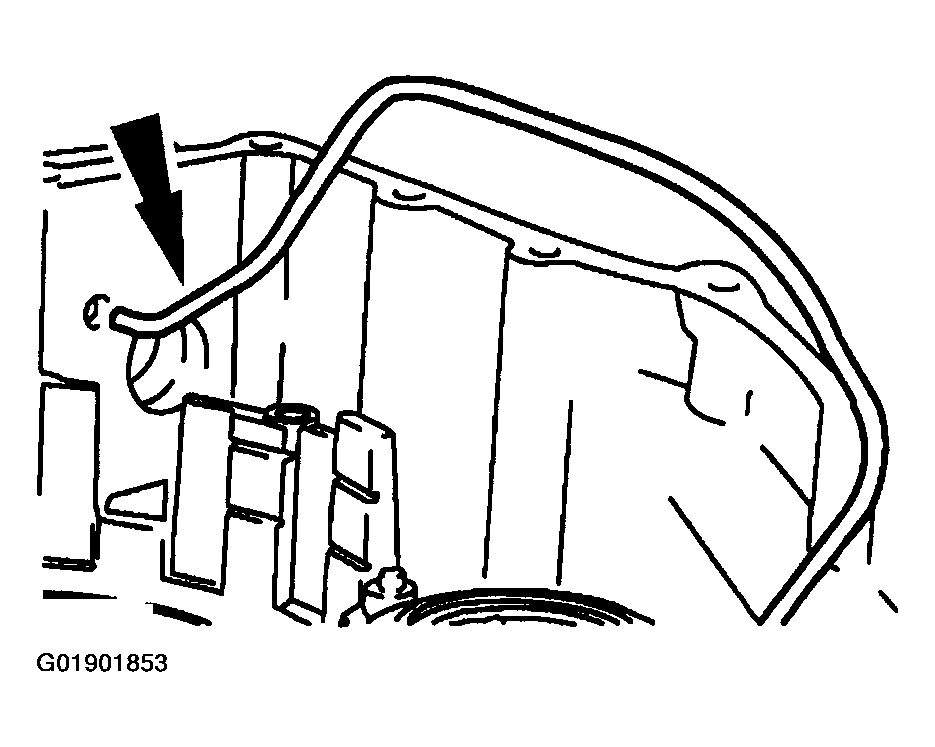

Using the special tool, install the final drive lube tube into the case.
