Main Control Valve Body: Removal

Disconnect the battery cables. .
Remove the battery and tray. .

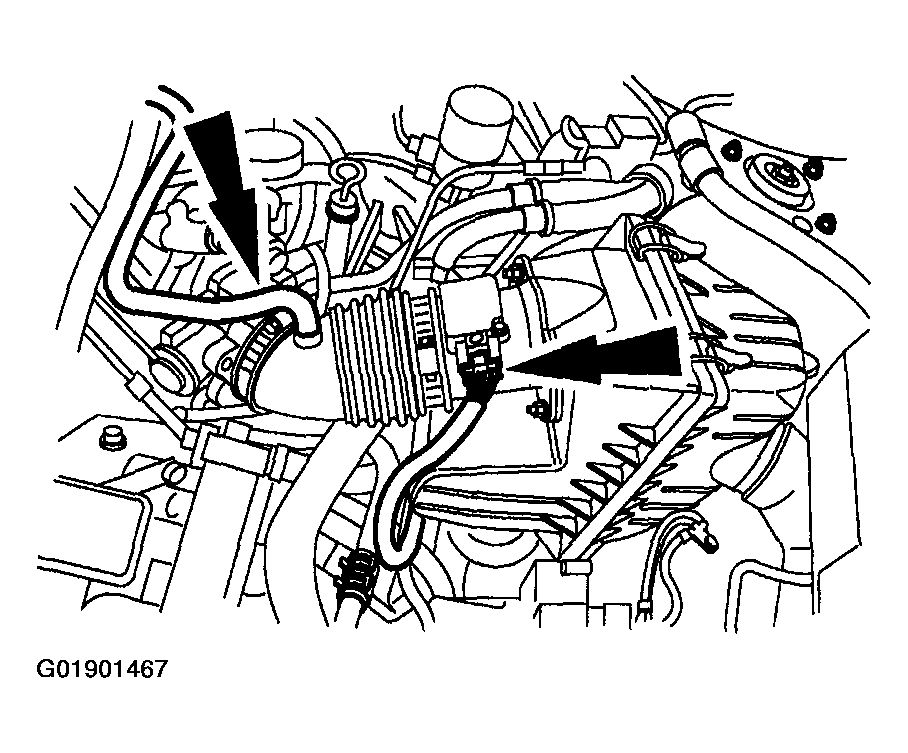

Fig 1: Disconnecting Breather Tube And Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Courtesy of MAZDA MOTORS CORP.
Disconnect the breather tube and mass air flow (MAF) / intake air temperature (IAT) sensor.

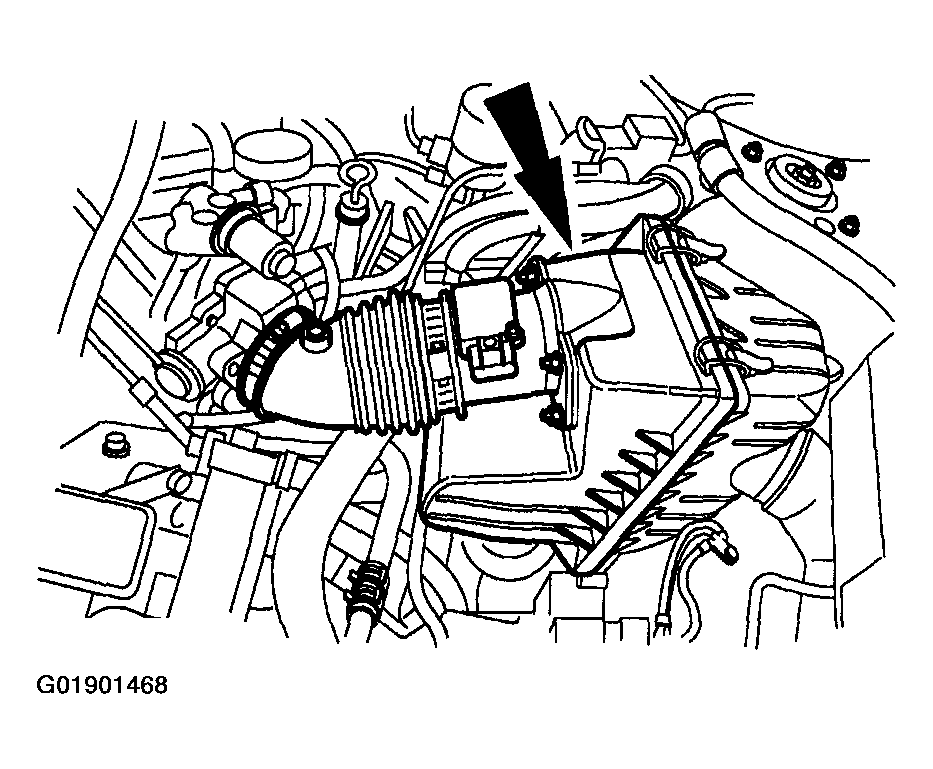

Fig 2: Removing Intake Tube And Air Cleaner Cover
Courtesy of MAZDA MOTORS CORP.
Remove the intake tube and air cleaner cover.

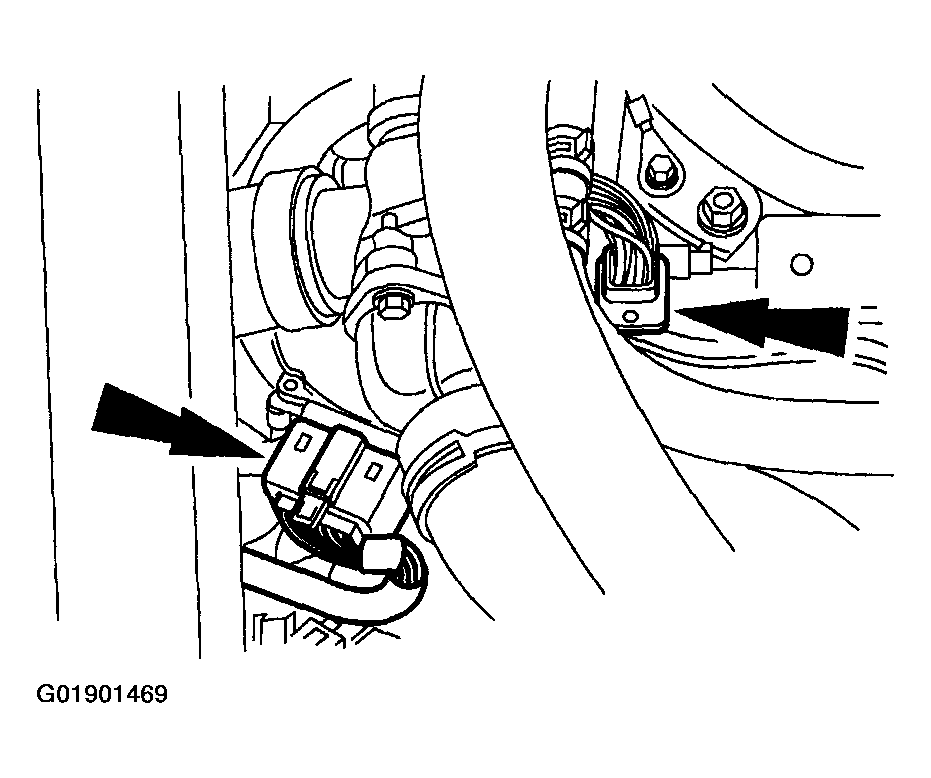

Fig 3: Disconnecting Transaxle Wiring Harness Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the transaxle wiring harness electrical connector, and TR sensor connector.

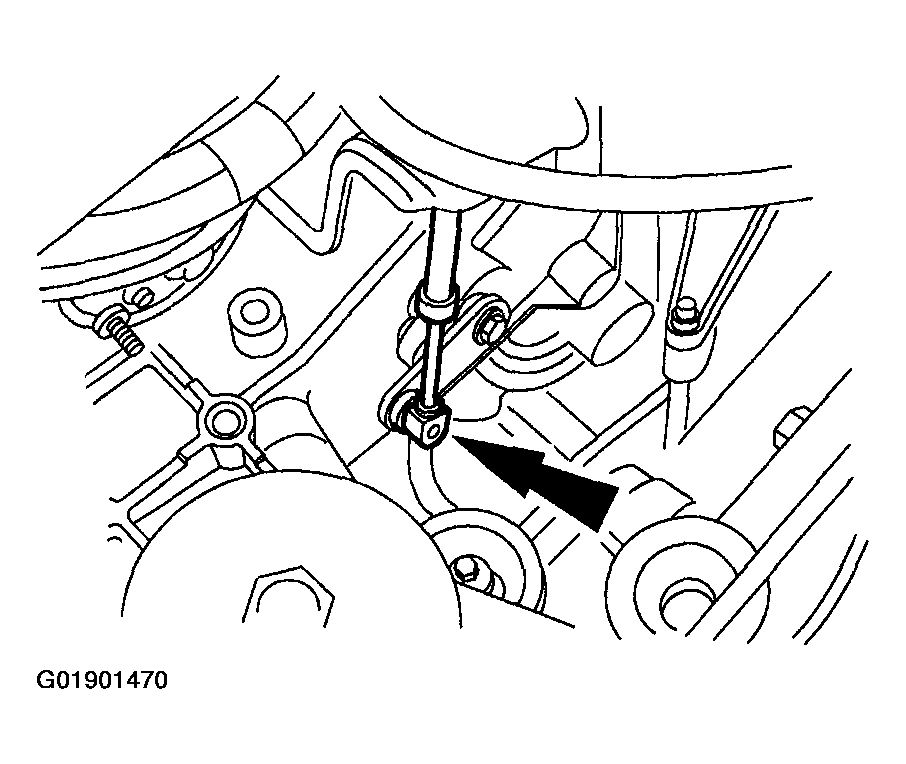

Fig 4: Disconnecting Shift Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the shift cable.

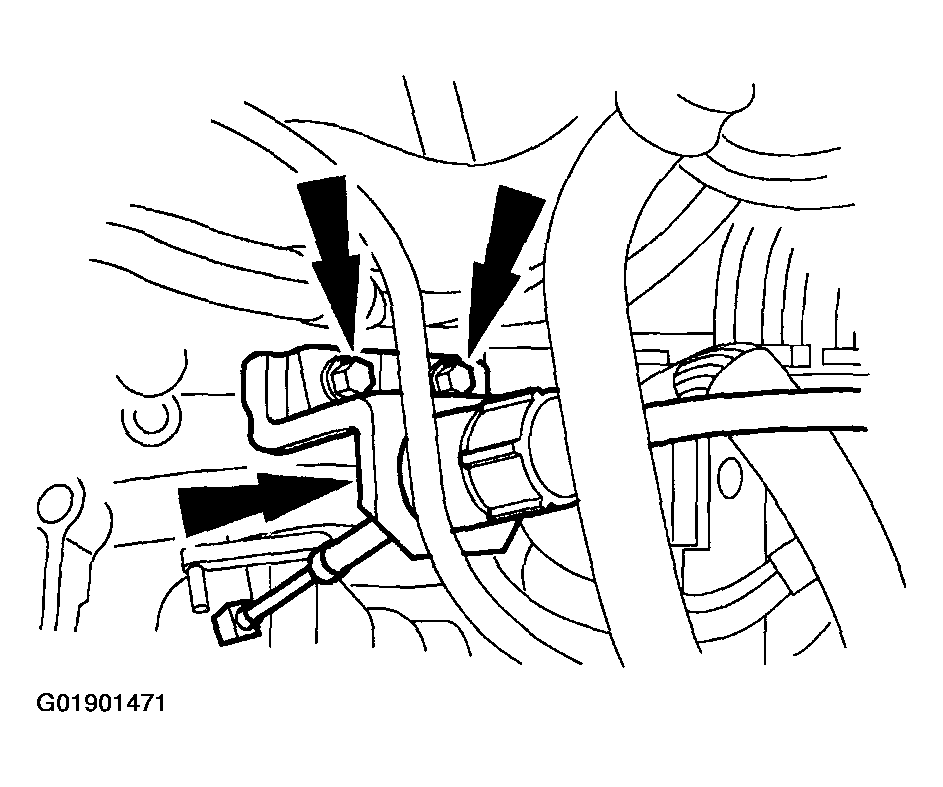

Fig 5: Removing Shift Cable And Bracket, And Position Out Of Way
Courtesy of MAZDA MOTORS CORP.
Remove the shift cable and bracket, and position out of the way.

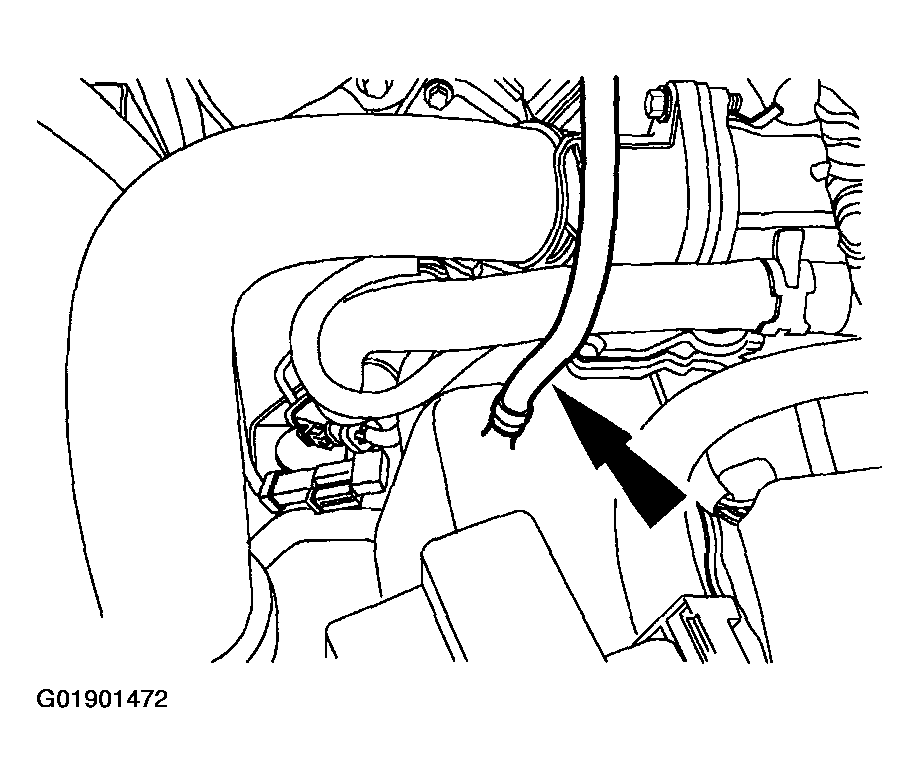

Fig 6: Removing Vent Tube Hose
Courtesy of MAZDA MOTORS CORP.
Remove the vent tube hose.
Raise and support the vehicle. .
Remove the LH front wheel.

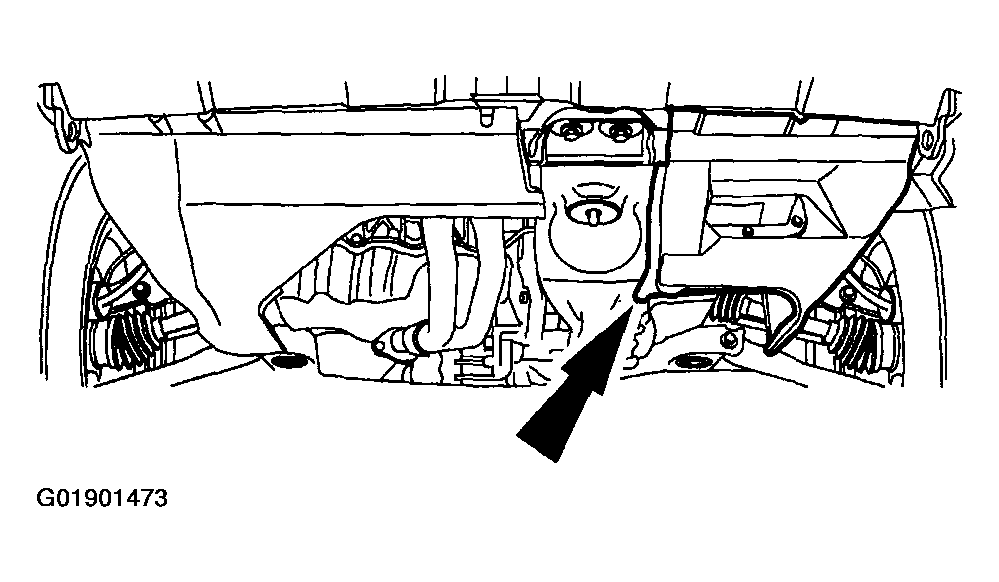

Fig 7: Removing Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the splash shield.

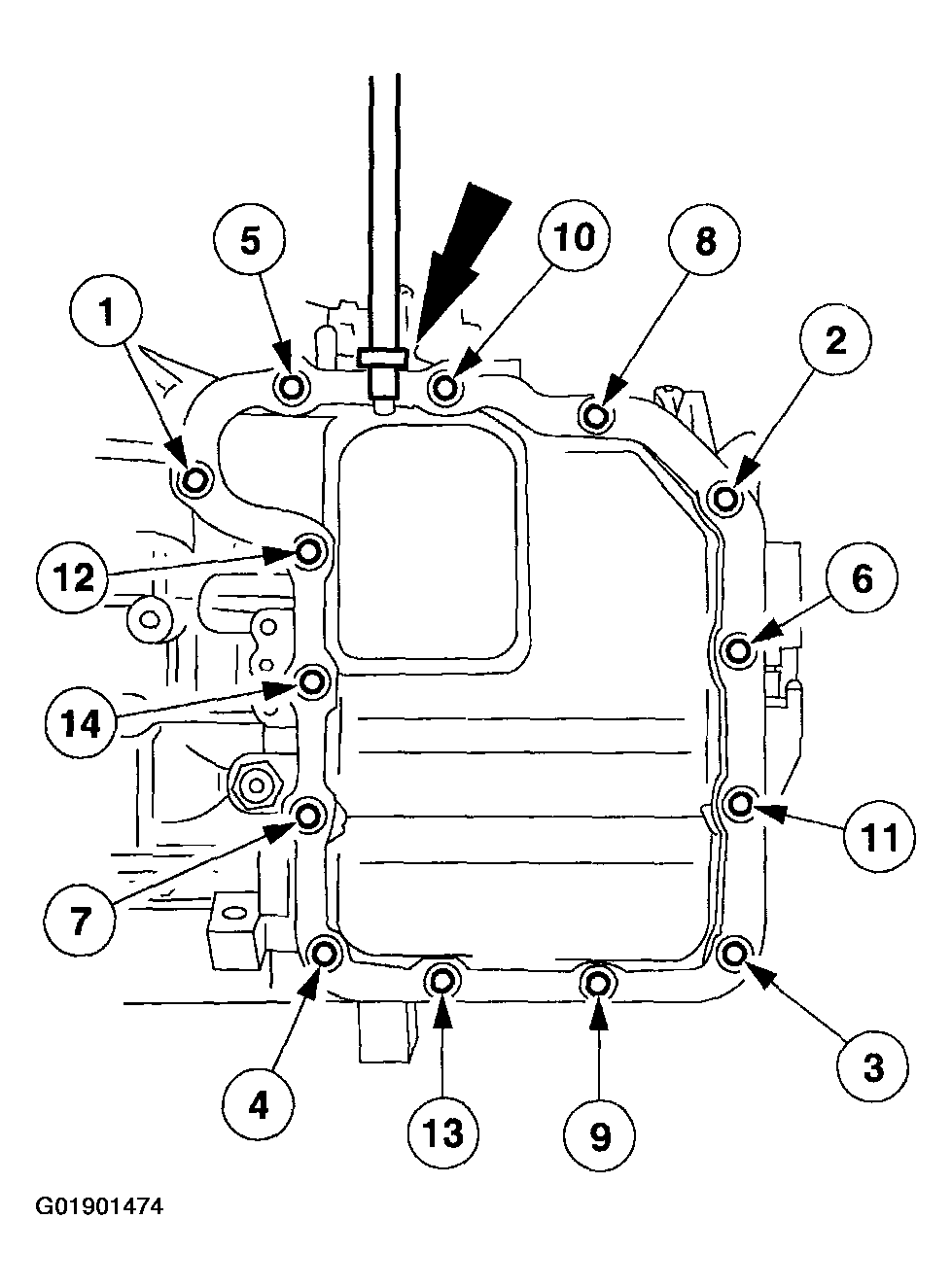

Fig 8: Removing Main Control Cover In Sequence
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Remove the bolts in the indicated sequence.
Remove the main control cover.

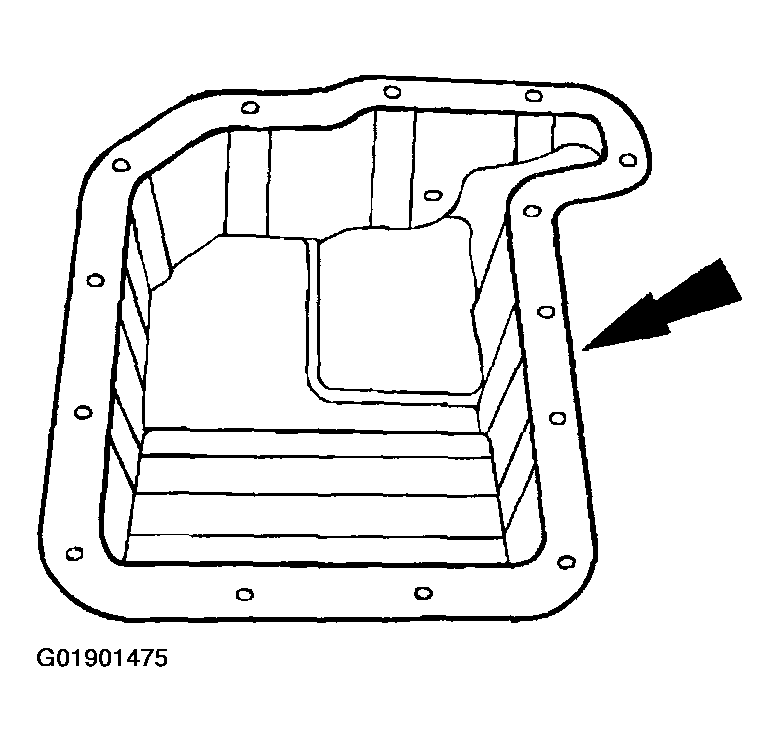

Fig 9: Removing Main Control Cover Gasket
Courtesy of MAZDA MOTORS CORP.
Remove the main control cover gasket.

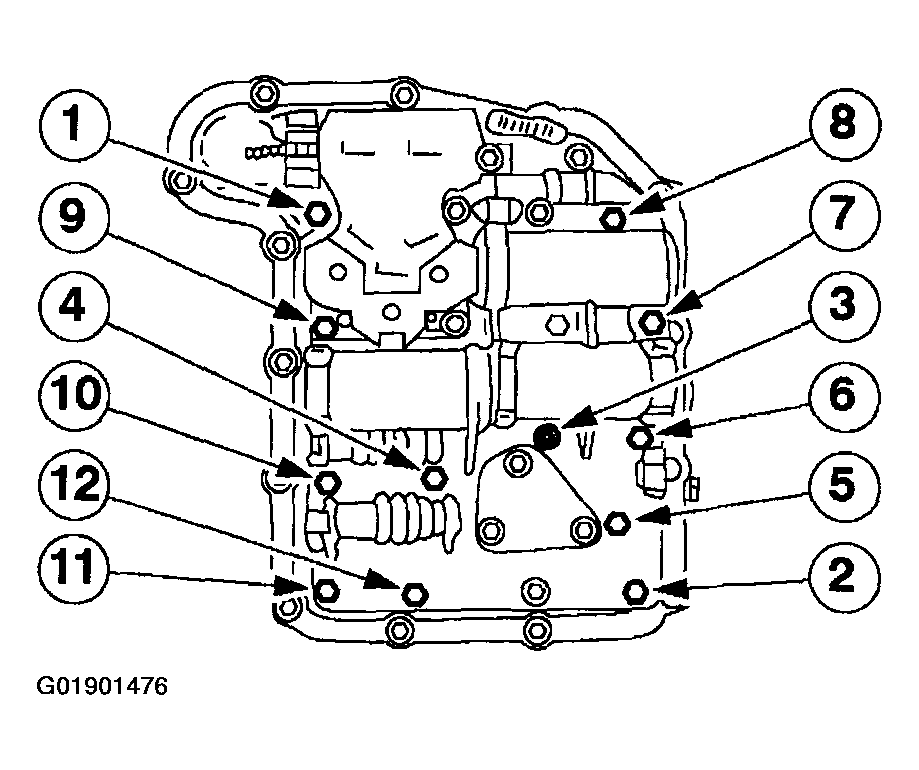

Fig 10: Removing Main Control Valve Body Bolts In Sequence
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Remove the bolts in the indicated sequence.
Remove the main control valve body bolts.

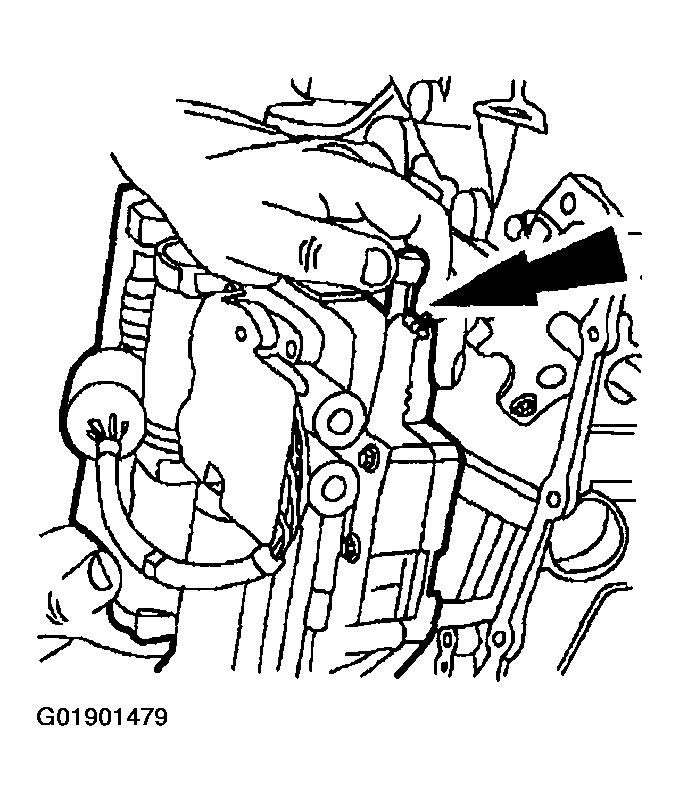

Fig 11: Lifting Main Control Valve Body While Disconnecting Manual Valve Link
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not damage the manual valve.
Lift the main control valve body while disconnecting the manual valve link.

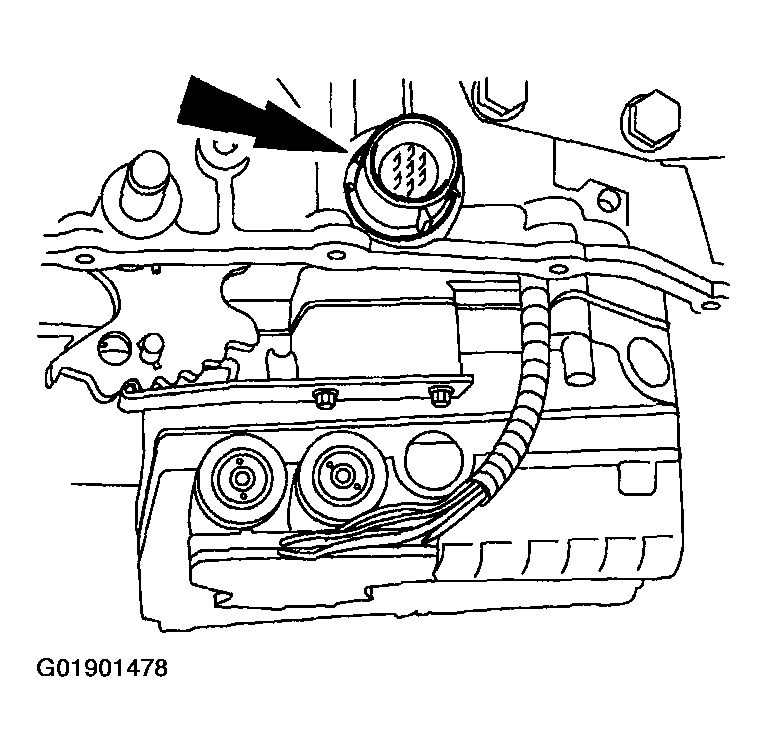

Fig 12: Depressing Retaining Tabs And Pushing Solenoid Valve Body Electrical Connector Down Through Transaxle Case
Courtesy of MAZDA MOTORS CORP.
Depress the retaining tabs and push the solenoid valve body electrical connector down through the transaxle case.

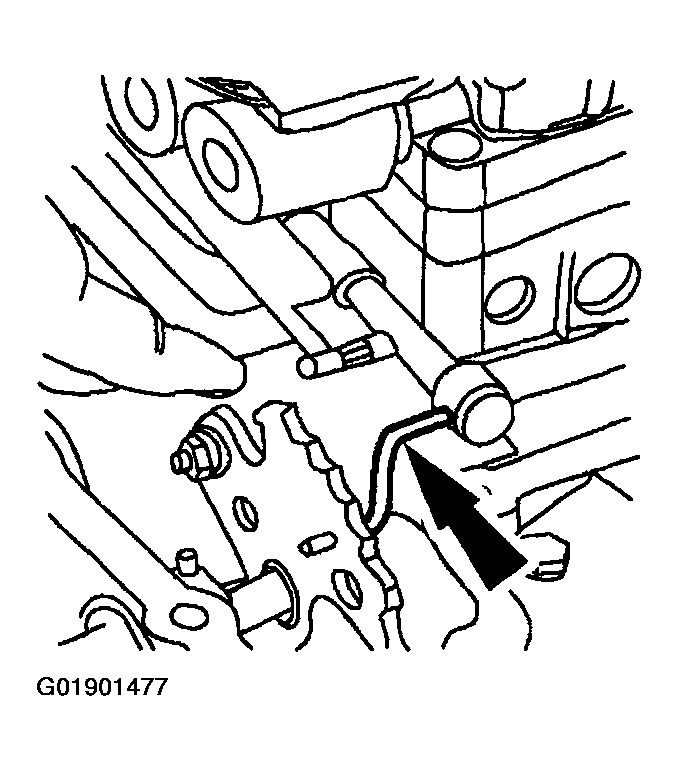

Fig 13: Making Sure Manual Valve Control Lever Does Not Fall Out Of Main Control Valve Body
Courtesy of MAZDA MOTORS CORP.
Make sure the manual valve control lever does not fall out of the main control valve body while removing from the vehicle.
