Assembly Note

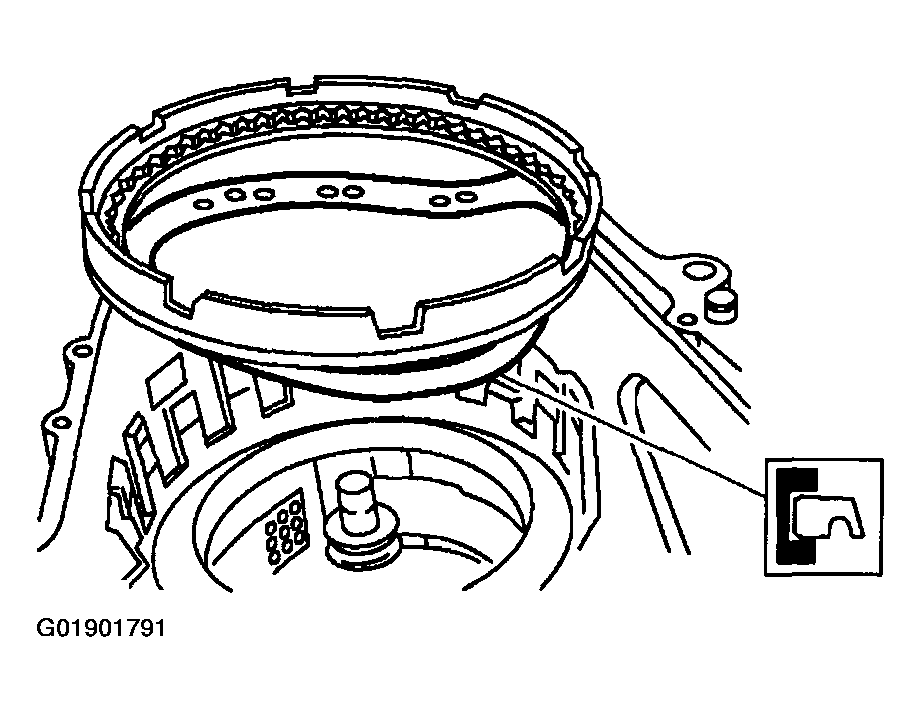

Fig 1: Installing Low/Reverse Clutch Piston Outer Seal On Low/Reverse Clutch Piston
G01901791Courtesy of MAZDA MOTORS CORP.
  1. Install the low/reverse clutch piston outer seal on the low/reverse clutch piston.

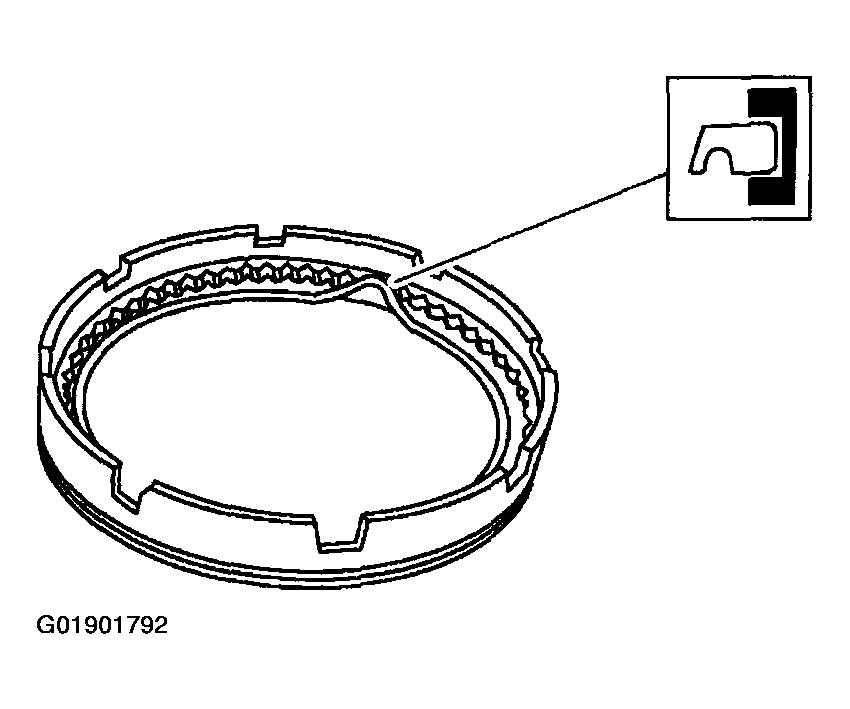

    Fig 2: Installing Low/Reverse Clutch Piston Inner Seal On Low/Reverse Clutch Piston
    G01901792Courtesy of MAZDA MOTORS CORP.
  2. Install the low/reverse clutch piston inner seal on the low/reverse clutch piston.
