Assembly Note

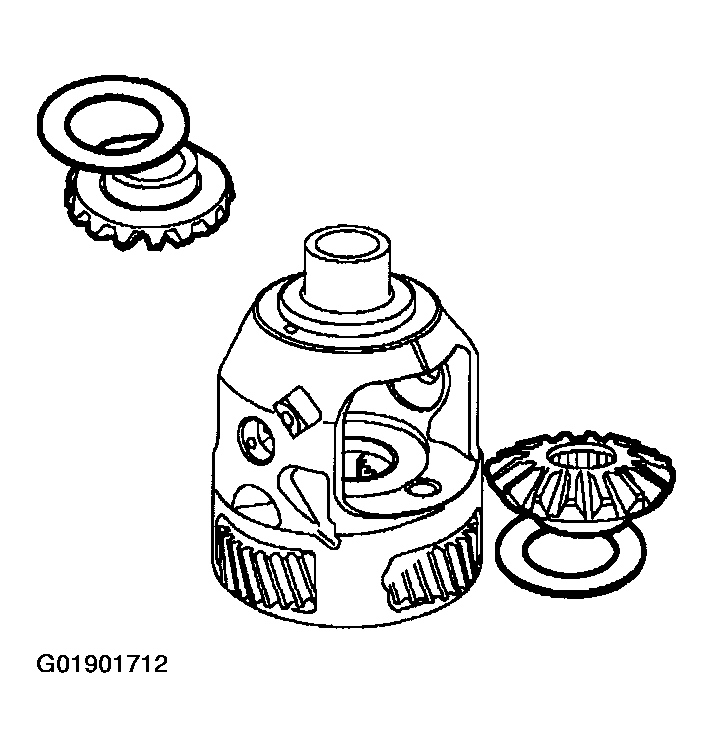

Fig 1: Installing Differential Side Gears And Thrust Washers
G01901712Courtesy of MAZDA MOTORS CORP.
  1. Install the differential side gears and thrust washers.

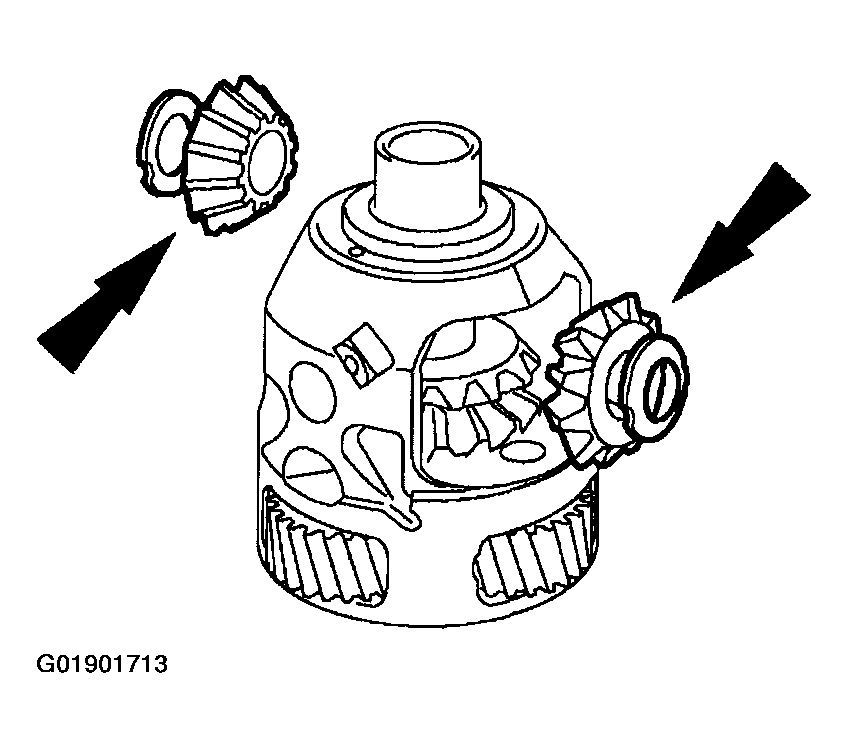

    Fig 2: Installing Differential Pinion Gears And Thrust Washers
    G01901713Courtesy of MAZDA MOTORS CORP.
  2. Install the differential pinion gears and thrust washers.
    1. Rotate the differential pinion gears 90 degrees.

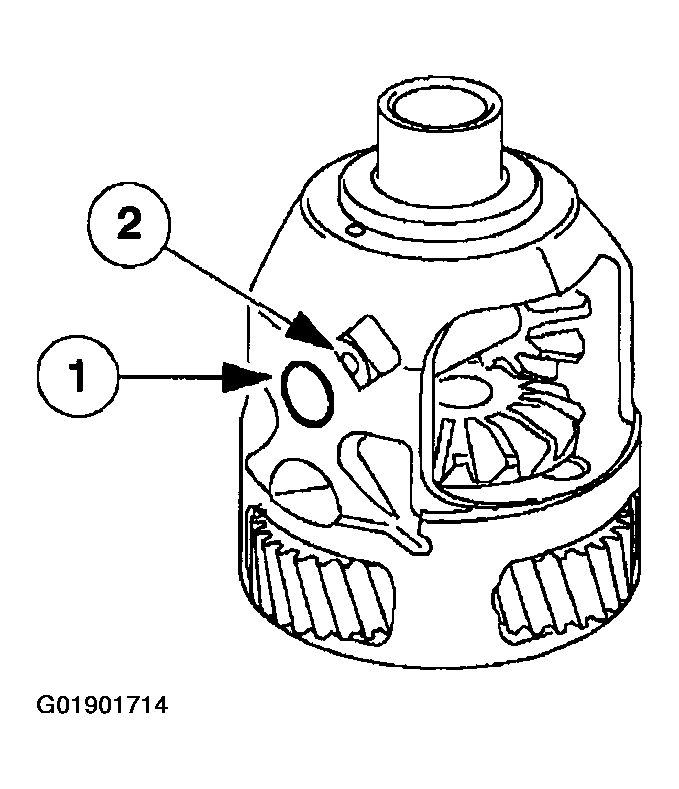

      Fig 3: Installing Differential Pinion Shaft
      G01901714Courtesy of MAZDA MOTORS CORP.
    2. Install the differential pinion shaft.
      1. Push the pinion shaft in place.
    3. Install the roll pin.
