Disassembly Note

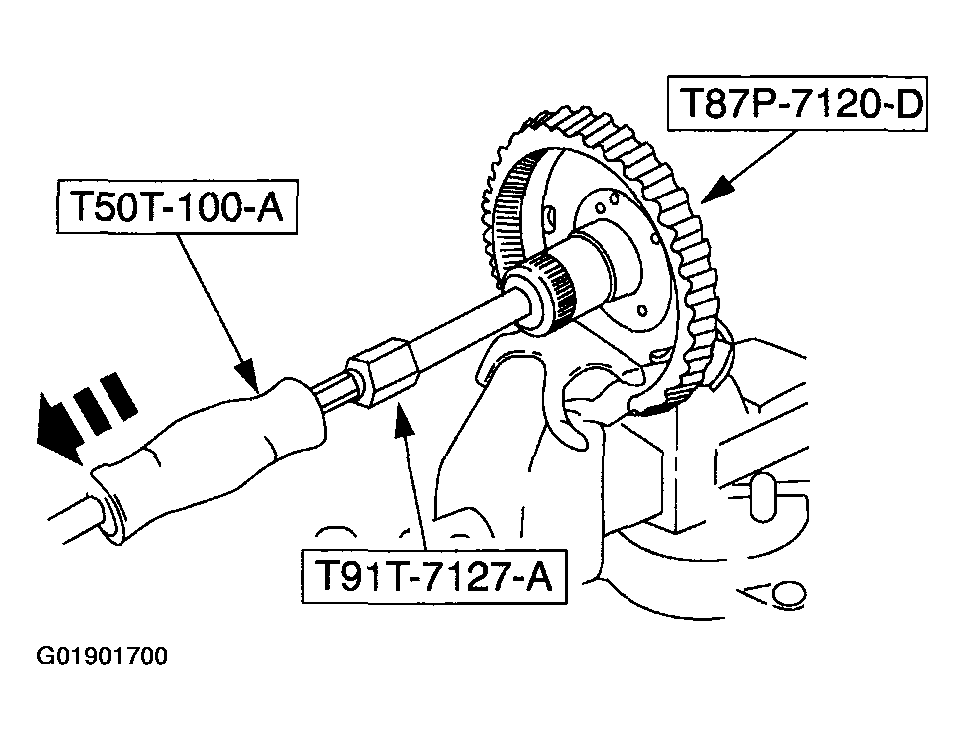

Fig 1: Removing No. 16 Reverse/Overdrive Ring Gear Bearing

G01901700

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Clamp the sprocket in a soft-jawed vise.

Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

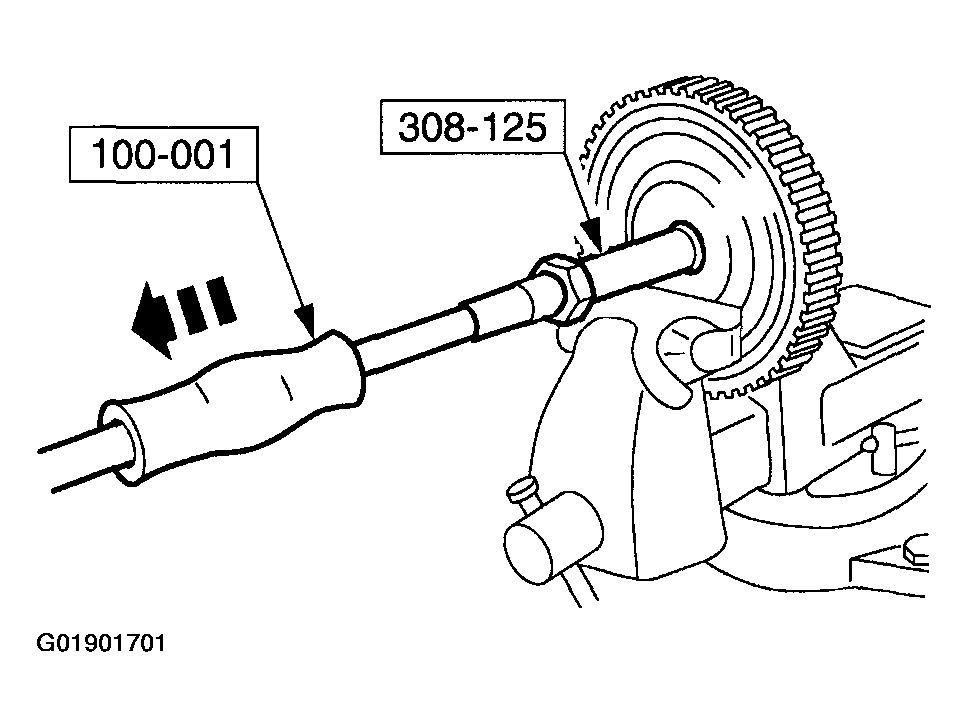

Fig 2: Removing No. 17 Stator Support Bearing
Courtesy of MAZDA MOTORS CORP.
Using the special tools, remove the No. 17 stator support bearing, as necessary.
